How to Use DHT11: Examples, Pinouts, and Specs

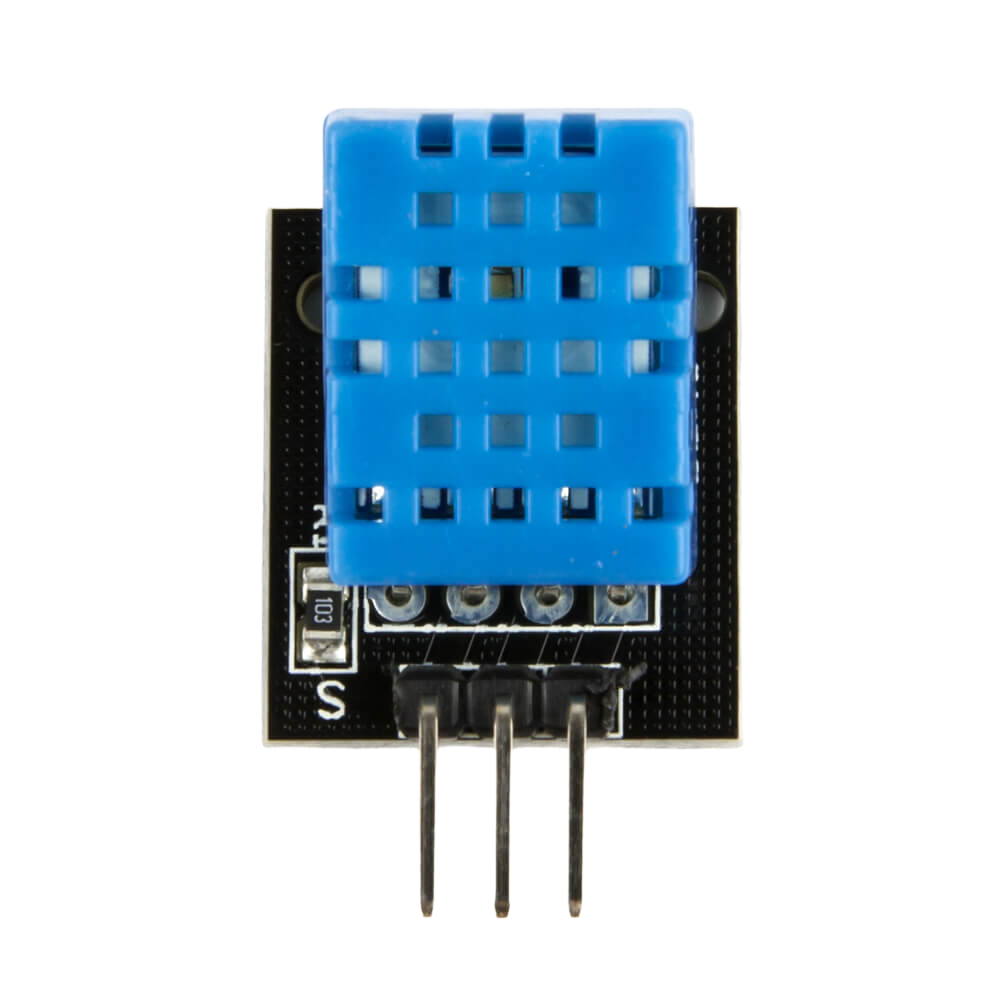

The DHT11 is a digital temperature and humidity sensor manufactured by Temperature, Humidity with the part ID DHT11. It is designed to provide accurate readings of environmental conditions, including temperature and relative humidity. The sensor features a single-wire digital interface, making it simple to integrate with microcontrollers and other digital systems. Its compact size and low power consumption make it ideal for a wide range of applications.

• Home automation systems for monitoring indoor climate
• Weather stations and environmental monitoring
• Greenhouse and agricultural monitoring
• HVAC (Heating, Ventilation, and Air Conditioning) systems
• IoT (Internet of Things) devices for smart environments

The DHT11 sensor is a reliable and cost-effective solution for temperature and humidity measurement. Below are its key technical details:

The DHT11 sensor has four pins, but only three are typically used in most applications. Below is the pin configuration:

The DHT11 sensor is straightforward to use in a circuit. Follow the steps below to integrate it into your project:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Line: Connect the DATA pin to a digital input pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and VCC to ensure reliable communication.
3. Leave NC Unconnected: The NC pin is not used and should remain unconnected.

• Sampling Rate: The DHT11 can only provide one reading per second. Avoid polling the sensor more frequently to prevent communication errors.
• Cable Length: Keep the cable length between the sensor and the microcontroller as short as possible to minimize signal degradation.
• Environmental Conditions: Avoid exposing the sensor to extreme temperatures or humidity levels beyond its specified range, as this may damage the sensor or reduce accuracy.

Below is an example of how to use the DHT11 sensor with an Arduino UNO. This code uses the popular DHT library, which simplifies communication with the sensor.

#include <DHT.h>

// Define the pin connected to the DHT11 sensor
#define DHTPIN 2  // Digital pin 2

// Define the type of DHT sensor
#define DHTTYPE DHT11

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);  // Start serial communication
  Serial.println("DHT11 Sensor Initialization");
  dht.begin();  // Initialize the DHT sensor
}

void loop() {
  delay(2000);  // Wait 2 seconds between readings

  // Read temperature and humidity
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  // Check if the readings are valid
  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");
}

1. No Data or Incorrect Readings

   • Cause: The pull-up resistor on the DATA line is missing or incorrectly connected.
   • Solution: Ensure a 10kΩ pull-up resistor is connected between the DATA pin and VCC.

2. Sensor Not Responding

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the wiring and ensure the sensor is powered with 3.3V to 5.5V.

3. Frequent Communication Errors

   • Cause: Polling the sensor too frequently or using long cables.
   • Solution: Limit the sampling rate to 1 Hz and use short cables to connect the sensor.

4. Inaccurate Readings

   • Cause: Sensor exposed to conditions outside its operating range.
   • Solution: Ensure the sensor is used within its specified temperature and humidity range.

Q: Can the DHT11 measure negative temperatures?
A: No, the DHT11 can only measure temperatures in the range of 0°C to 50°C.

Q: Can I use the DHT11 with a 3.3V microcontroller?
A: Yes, the DHT11 operates with a voltage range of 3.3V to 5.5V, making it compatible with 3.3V systems.

Q: How does the DHT11 compare to the DHT22?
A: The DHT22 offers a wider temperature and humidity range with higher accuracy but is more expensive. The DHT11 is a cost-effective option for basic applications.

Q: What is the maximum cable length for the DHT11?
A: The recommended maximum cable length is approximately 20 meters, but shorter cables are preferred for better signal integrity.
