How to Use Bateria lipo: Examples, Pinouts, and Specs

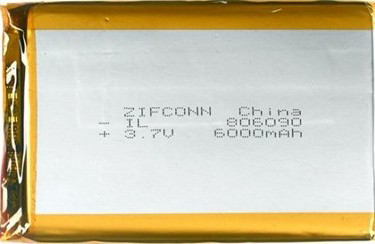

The Bateria lipo is a lithium polymer (LiPo) rechargeable battery known for its lightweight design, high energy density, and flexibility in form factor. These characteristics make it an ideal power source for applications requiring compact and efficient energy storage. LiPo batteries are widely used in remote-controlled (RC) vehicles, drones, portable electronics, and other devices that demand high discharge rates and reliable performance.

• RC vehicles (cars, boats, planes, and helicopters)
• Drones and quadcopters
• Portable electronic devices (e.g., smartphones, tablets, and wearables)
• Robotics and IoT devices
• Backup power supplies for embedded systems

Below are the general technical specifications for the Bateria lipo. Note that specific values may vary depending on the model and capacity of the battery.

LiPo batteries typically have two or three connectors: a power connector and, optionally, a balance connector. Below is a description of the pins:

1. Connect the Power Leads:
   • Connect the red wire (positive terminal) to the positive input of your circuit.
   • Connect the black wire (negative terminal) to the ground (GND) of your circuit.
2. Use a Battery Management System (BMS):
   • Always use a BMS or a LiPo-compatible charger to safely charge and discharge the battery.
3. Monitor Voltage Levels:
   • Avoid over-discharging the battery. Use a voltage monitor or cutoff circuit to ensure the voltage does not drop below 3.0V per cell.
4. Balance Charging:
   • For multi-cell LiPo batteries, use a balance charger to ensure all cells are charged evenly.

• Charging Safety: Always charge the battery using a LiPo-compatible charger. Never exceed the recommended charging voltage or current.
• Storage: Store the battery at a voltage of approximately 3.8V per cell for long-term storage. Keep it in a cool, dry place.
• Handling: Avoid puncturing, bending, or exposing the battery to high temperatures.
• Discharge Limits: Do not discharge the battery below 3.0V per cell to prevent damage and capacity loss.
• Protection Circuitry: Use a protection circuit to prevent overcharging, over-discharging, and short circuits.

Below is an example of how to power an Arduino UNO using a LiPo battery and a voltage regulator (if required):

• Connect the LiPo battery to a 5V voltage regulator (if the battery voltage exceeds 5V).
• Connect the output of the regulator to the Arduino's VIN pin and GND.

// Example code to monitor battery voltage using an Arduino UNO
// Connect the battery's positive terminal to an analog pin (e.g., A0)
// Use a voltage divider to ensure the voltage is within the ADC range

const int batteryPin = A0;  // Analog pin connected to the battery
const float voltageDividerRatio = 2.0;  // Adjust based on your resistor values
const float referenceVoltage = 5.0;  // Arduino's ADC reference voltage

void setup() {
  Serial.begin(9600);  // Initialize serial communication
}

void loop() {
  int rawADC = analogRead(batteryPin);  // Read the analog value
  float batteryVoltage = (rawADC / 1023.0) * referenceVoltage * voltageDividerRatio;

  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000);  // Wait for 1 second before the next reading
}

1. Battery Not Charging

   • Cause: Faulty charger or incorrect charging settings.
   • Solution: Ensure the charger is LiPo-compatible and set to the correct voltage and current.

2. Battery Swelling

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately. Dispose of it safely according to local regulations.

3. Short Battery Life

   • Cause: Frequent over-discharging or charging at high currents.
   • Solution: Follow recommended charging and discharging practices. Use a voltage monitor.

4. Uneven Cell Voltages (for Multi-Cell Batteries)

   • Cause: Imbalanced charging.
   • Solution: Use a balance charger to equalize cell voltages.

Q: Can I use a LiPo battery without a BMS?
A: It is not recommended. A BMS ensures safe operation by preventing overcharging, over-discharging, and short circuits.

Q: How do I know when my LiPo battery is fully charged?
A: A fully charged LiPo battery will have a voltage of 4.2V per cell.

Q: What happens if I over-discharge a LiPo battery?
A: Over-discharging can permanently damage the battery, reduce its capacity, and increase the risk of swelling or failure.

Q: Can I use a LiPo battery in cold weather?
A: LiPo batteries can operate in cold temperatures, but their performance may degrade. Avoid using them below -20°C.

Q: How do I safely dispose of a LiPo battery?
A: Discharge the battery completely, then take it to a recycling center or follow local disposal regulations.
