How to Use esp32 type c: Examples, Pinouts, and Specs

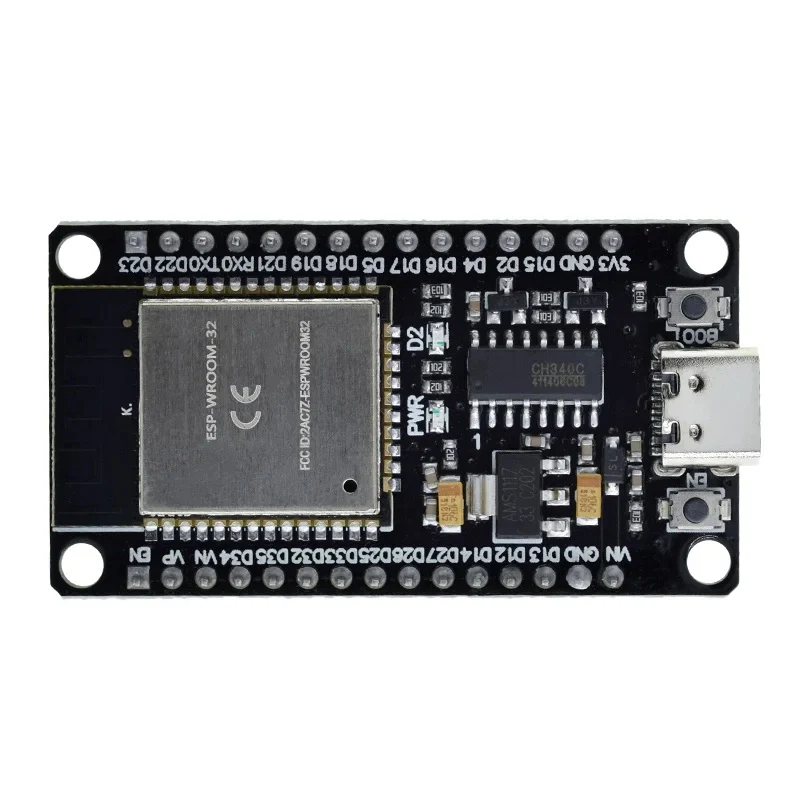

The ESP32 Type-C, manufactured by IRPANGTG, is a powerful and versatile microcontroller module designed for IoT (Internet of Things) applications. It features dual-core processing, integrated Wi-Fi and Bluetooth capabilities, and a USB Type-C interface for power and programming. This module is ideal for projects requiring wireless communication, low power consumption, and high processing power.

Common applications include:

• Smart home devices
• Wearable technology
• Industrial automation
• Wireless sensor networks
• Robotics and drones

The ESP32 Type-C offers the following key technical details:

The ESP32 Type-C module has a total of 34 GPIO pins, each with multiple functionalities. Below is a summary of the pin configuration:

Note: Some GPIO pins have specific restrictions or are reserved for internal use. Refer to the IRPANGTG datasheet for detailed pin mappings.

1. Powering the Module:
   Connect the ESP32 Type-C to a 5V USB Type-C power source. The onboard voltage regulator will step down the voltage to 3.3V for the microcontroller.

2. Programming the Module:
   Use the USB Type-C interface to connect the ESP32 to your computer. Install the necessary drivers and use the Arduino IDE or ESP-IDF for programming.

3. Basic Circuit Example:
   Connect peripherals (e.g., sensors, LEDs) to the GPIO pins. Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the ESP32.

• Voltage Levels: Avoid applying voltages higher than 3.3V to the GPIO pins to prevent damage.
• Boot Mode: To enter programming mode, hold the IO0 pin low while resetting the module.
• Power Consumption: Use deep sleep modes to minimize power usage in battery-powered applications.
• Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to maintain optimal wireless performance.

Below is an example of using the ESP32 Type-C to control an LED via Wi-Fi:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  pinMode(2, OUTPUT);   // Set GPIO2 as an output (connected to an LED)

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
}

void loop() {
  digitalWrite(2, HIGH); // Turn the LED on
  delay(1000);           // Wait for 1 second
  digitalWrite(2, LOW);  // Turn the LED off
  delay(1000);           // Wait for 1 second
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

1. ESP32 Not Detected by Computer:

   • Ensure the USB Type-C cable supports data transfer (not just charging).
   • Install the correct USB-to-serial drivers for the ESP32.

2. Wi-Fi Connection Fails:

   • Double-check the SSID and password.
   • Ensure the Wi-Fi network is within range and supports 2.4 GHz (ESP32 does not support 5 GHz).

3. GPIO Pin Malfunction:

   • Verify that the pin is not being used for another function (e.g., boot mode).
   • Check for short circuits or incorrect voltage levels.

4. High Power Consumption:

   • Use deep sleep modes when the module is idle.
   • Disconnect unused peripherals to reduce power draw.

• Q: Can the ESP32 Type-C be powered by a battery?
  A: Yes, you can use a 3.7V LiPo battery with a suitable voltage regulator to provide 3.3V to the module.

• Q: Does the ESP32 Type-C support OTA (Over-The-Air) updates?
  A: Yes, the ESP32 supports OTA updates, allowing you to upload new firmware wirelessly.

• Q: Can I use the ESP32 Type-C with MicroPython?
  A: Yes, the ESP32 is compatible with MicroPython. You can flash the MicroPython firmware to the module and program it using Python.

For further assistance, refer to the official IRPANGTG ESP32 Type-C datasheet or community forums.
