How to Use Neopixel Strip: Examples, Pinouts, and Specs

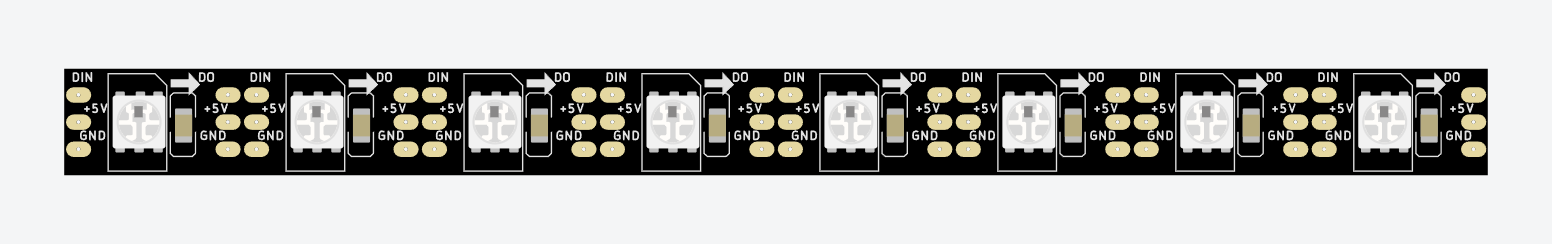

The Neopixel Strip is a flexible LED strip that features individually addressable RGB LEDs. Each LED on the strip can display a unique color and brightness, enabling a wide range of customizable lighting effects. These strips are based on WS2812 or SK6812 LEDs, which integrate a control circuit and RGB LED into a single package.

Neopixel Strips are commonly used in decorative lighting, DIY projects, wearables, and interactive displays. They are particularly popular in maker communities for creating dynamic lighting effects controlled by microcontrollers like Arduino, Raspberry Pi, or ESP32.

• LED Type: WS2812B or SK6812 (individually addressable RGB LEDs)
• Operating Voltage: 5V DC
• Current Consumption: ~60mA per LED at full brightness (all colors on)
• Communication Protocol: One-wire (data line)
• LED Density: Typically 30, 60, or 144 LEDs per meter
• Color Depth: 24-bit (8 bits per color channel: Red, Green, Blue)
• Operating Temperature: -20°C to 60°C
• Strip Length: Available in various lengths (e.g., 1m, 2m, 5m)

The Neopixel Strip typically has three main pins for operation:

Some strips may also have a DOUT pin at the end of the strip, which can be used to daisy-chain multiple strips.

1. Power Supply: Ensure you have a regulated 5V power supply capable of providing sufficient current for the number of LEDs in your strip. For example, a 1-meter strip with 60 LEDs may require up to 3.6A at full brightness.
2. Microcontroller Connection:
   • Connect the DIN pin of the strip to a digital output pin on your microcontroller.
   • Connect the GND pin of the strip to the ground of the microcontroller and power supply.
   • Connect the +5V pin of the strip to the 5V output of the power supply.
3. Signal Resistor: Place a 330-500 ohm resistor between the microcontroller's data pin and the strip's DIN pin to protect the LEDs from voltage spikes.
4. Capacitor: Add a 1000µF capacitor (6.3V or higher) across the +5V and GND pins near the strip to stabilize the power supply.

Below is an example of how to control a Neopixel Strip using an Arduino UNO and the Adafruit NeoPixel library:

#include <Adafruit_NeoPixel.h>

// Define the pin connected to the DIN pin of the Neopixel Strip
#define LED_PIN 6

// Define the number of LEDs in the strip
#define NUM_LEDS 60

// Create a NeoPixel object
Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUM_LEDS, LED_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  strip.begin();  // Initialize the strip
  strip.show();   // Turn off all LEDs initially
}

void loop() {
  // Example: Set all LEDs to red
  for (int i = 0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, strip.Color(255, 0, 0)); // Red color
  }
  strip.show();  // Update the strip to display the colors
  delay(1000);   // Wait for 1 second

  // Example: Turn off all LEDs
  for (int i = 0; i < NUM_LEDS; i++) {
    strip.setPixelColor(i, strip.Color(0, 0, 0)); // Turn off
  }
  strip.show();  // Update the strip to turn off LEDs
  delay(1000);   // Wait for 1 second
}

• Power Supply: Always use a power supply that can handle the total current draw of the strip. Avoid powering long strips directly from the microcontroller.
• Signal Voltage: Ensure the microcontroller's data pin outputs a 5V signal. If using a 3.3V microcontroller, use a logic level shifter.
• Daisy-Chaining: When connecting multiple strips, connect the DOUT pin of one strip to the DIN pin of the next.
• Heat Management: At full brightness, the strip can generate significant heat. Ensure proper ventilation or reduce brightness to avoid overheating.

1. LEDs Not Lighting Up:

   • Check the power supply and ensure it is providing 5V.
   • Verify that the GND of the strip is connected to the microcontroller's ground.
   • Ensure the data pin is correctly connected and the correct pin is defined in the code.

2. Flickering or Incorrect Colors:

   • Add a 330-500 ohm resistor between the microcontroller's data pin and the strip's DIN pin.
   • Use a 1000µF capacitor across the +5V and GND pins to stabilize the power supply.
   • Ensure the data signal is clean and not affected by noise.

3. Only the First LED Works:

   • Check the solder joints or connections at the start of the strip.
   • Ensure the data signal is reaching the DIN pin of the first LED.

4. Strip Overheating:

   • Reduce the brightness of the LEDs in your code.
   • Use a power supply with sufficient current capacity to avoid overloading.

Q: Can I cut the Neopixel Strip to a custom length?
A: Yes, Neopixel Strips can be cut at designated points (usually marked with a scissor icon). Ensure you cut only at these points to avoid damaging the strip.

Q: How many LEDs can I control with one microcontroller?
A: The number of LEDs depends on the microcontroller's memory and processing power. For example, an Arduino UNO can typically handle up to 500 LEDs, but performance may vary.

Q: Can I power the strip directly from the Arduino?
A: No, the Arduino cannot supply enough current for the strip. Always use an external 5V power supply.

Q: Can I use a 12V power supply with the Neopixel Strip?
A: No, Neopixel Strips are designed for 5V operation. Using a 12V power supply will damage the LEDs.

By following this documentation, you can effectively integrate and troubleshoot a Neopixel Strip in your projects!
