How to Use acs712: Examples, Pinouts, and Specs

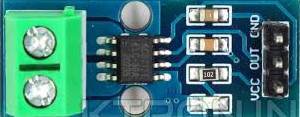

The ACS712 Current Sensor, manufactured by Allegro MicroSystems, is a Hall effect-based linear current sensor designed to measure both AC and DC currents. It provides an analog voltage output proportional to the current flowing through the sensor. The ACS712 is widely used in power management, motor control, overcurrent protection, and energy monitoring systems due to its high accuracy, compact size, and ease of integration.

• Power supply current monitoring
• Motor control and overcurrent protection
• Battery management systems
• Energy monitoring in home automation
• Industrial equipment current sensing

The ACS712 is available in multiple variants, each with a different current sensing range. Below are the key technical details:

The ACS712 is typically available in an 8-pin SOIC package. Below is the pinout and description:

1. Power Supply: Connect the VCC pin to a 5V power supply and the GND pin to the ground of your circuit.
2. Current Input: Pass the current to be measured through the IP+ and IP- terminals. Ensure the current does not exceed the rated range of the specific ACS712 variant.
3. Output Signal: The VIOUT pin provides an analog voltage proportional to the current. At 0A, the output voltage is approximately VCC/2 (e.g., 2.5V for a 5V supply). The voltage increases or decreases linearly with the current.

• Isolation: The ACS712 provides electrical isolation between the current-carrying conductor and the output signal, making it safe for high-voltage applications.
• Filtering: To reduce noise, connect a capacitor (e.g., 0.1 µF) between the VIOUT pin and GND.
• Calibration: For precise measurements, calibrate the sensor by measuring the output voltage at 0A and adjusting for any offset.
• Current Direction: Positive current flows from IP+ to IP-, while negative current flows in the opposite direction.

Below is an example of how to interface the ACS712 with an Arduino UNO to measure current:

// Include necessary libraries (if any)

// Define the analog pin connected to the ACS712 output
const int sensorPin = A0;

// Define the sensitivity of the ACS712 (e.g., 185 mV/A for ±5A variant)
const float sensitivity = 0.185; // Sensitivity in V/A

// Define the supply voltage (Vcc) of the ACS712
const float Vcc = 5.0; // Supply voltage in volts

// Define the zero-current output voltage (Vcc/2)
const float zeroCurrentVoltage = Vcc / 2;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the sensor
  int sensorValue = analogRead(sensorPin);

  // Convert the analog value to voltage
  float sensorVoltage = (sensorValue / 1023.0) * Vcc;

  // Calculate the current in amperes
  float current = (sensorVoltage - zeroCurrentVoltage) / sensitivity;

  // Print the current to the Serial Monitor
  Serial.print("Current: ");
  Serial.print(current);
  Serial.println(" A");

  delay(1000); // Wait for 1 second before the next reading
}

• Adjust the sensitivity variable based on the ACS712 variant you are using.
• Ensure the current being measured does not exceed the sensor's rated range.

1. Incorrect Output Voltage:

   • Cause: Improper calibration or incorrect sensitivity value.
   • Solution: Verify the sensitivity value for your ACS712 variant and recalibrate the sensor.

2. No Output Signal:

   • Cause: Faulty connections or insufficient power supply.
   • Solution: Check all connections and ensure the VCC pin is supplied with 5V.

3. Noisy Output:

   • Cause: Electrical noise or lack of filtering.
   • Solution: Add a capacitor (e.g., 0.1 µF) between the VIOUT pin and GND to filter noise.

4. Overheating:

   • Cause: Current exceeding the sensor's rated range.
   • Solution: Ensure the current through the IP+ and IP- terminals is within the specified range.

Q1: Can the ACS712 measure both AC and DC currents?
Yes, the ACS712 can measure both AC and DC currents. The output voltage varies linearly with the current in either direction.

Q2: How do I determine the current direction?
The output voltage will be greater than VCC/2 for positive currents (IP+ to IP-) and less than VCC/2 for negative currents.

Q3: What is the maximum current the ACS712 can handle?
The maximum current depends on the variant: ±5A, ±20A, or ±30A. Ensure you select the appropriate variant for your application.

Q4: Can I use the ACS712 with a 3.3V microcontroller?
Yes, but the output voltage range will be limited. Ensure the microcontroller's ADC can accurately read the sensor's output within this range.

Q5: Is the ACS712 suitable for high-frequency current measurements?
The ACS712 has a bandwidth of 80 kHz, making it suitable for most low- to medium-frequency applications. For higher frequencies, consider alternative sensors.
