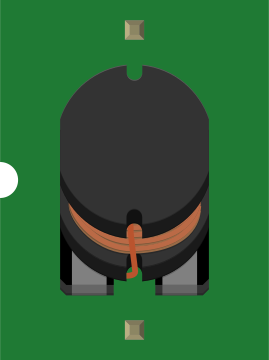

How to Use Inductors: Examples, Pinouts, and Specs

Inductors are passive electrical components that store energy in a magnetic field when electric current flows through them. They are typically made of a coil of wire wound around a core, which can be air, ferrite, or another magnetic material. Inductors are widely used in electronic circuits for their ability to resist changes in current and to filter or store energy.

• Filtering: Used in power supplies and audio circuits to filter out unwanted noise or ripple.
• Energy Storage: Found in DC-DC converters and power management circuits.
• Tuning Circuits: Used in radio frequency (RF) circuits to select specific frequencies.
• Transformers: Inductors are a key component in transformer design for voltage conversion.
• Chokes: Used to block high-frequency AC signals while allowing DC or low-frequency signals to pass.

Inductors come in various shapes, sizes, and specifications depending on their intended application. Below are the key technical parameters and a typical pin configuration.

Inductors typically have two terminals (pins) for connection. The table below describes the pin configuration:

Note: Some specialized inductors, such as transformers, may have additional pins for multiple windings.

1. Determine the Required Inductance: Calculate the inductance value needed for your application using circuit design equations (e.g., LC filter or resonance formulas).
2. Select an Appropriate Inductor: Choose an inductor with the correct inductance, current rating, and core material for your application.
3. Connect the Inductor:
   • Place the inductor in series for current-limiting or filtering applications.
   • Use it in parallel with a capacitor for resonance or tuning circuits.
4. Observe Polarity (if applicable): While most inductors are non-polarized, some specialized types (e.g., coupled inductors) may have polarity markings.
5. Avoid Saturation: Ensure the current through the inductor does not exceed its saturation current rating.

• Core Selection: Use ferrite cores for high-frequency applications and iron cores for low-frequency, high-power circuits.
• Heat Dissipation: Ensure adequate ventilation or heat sinking if the inductor operates near its maximum current rating.
• Placement in PCB Design: Keep inductors away from sensitive components to minimize electromagnetic interference (EMI).
• Parasitic Effects: Be aware of parasitic capacitance and resistance, which can affect high-frequency performance.

Below is an example of using an inductor in a simple LC filter circuit to smooth a PWM signal from an Arduino UNO:

/*
  Example: Using an LC filter with Arduino UNO
  This code generates a PWM signal on pin 9, which is smoothed using an LC filter.
  The inductor (L) and capacitor (C) form a low-pass filter to reduce ripple.
*/

const int pwmPin = 9; // PWM output pin

void setup() {
  pinMode(pwmPin, OUTPUT); // Set pin 9 as output
}

void loop() {
  analogWrite(pwmPin, 128); // Output a 50% duty cycle PWM signal
  delay(1000);              // Wait for 1 second
  analogWrite(pwmPin, 255); // Output a 100% duty cycle PWM signal
  delay(1000);              // Wait for 1 second
}

Circuit Notes:

• Connect the inductor in series with the PWM output pin.
• Place a capacitor in parallel with the load to form the LC filter.
• Choose the inductor and capacitor values based on the desired cutoff frequency.

1. Inductor Overheating:

   • Cause: Exceeding the current rating or poor ventilation.
   • Solution: Use an inductor with a higher current rating or improve cooling.

2. Unexpected Noise or EMI:

   • Cause: Poor PCB layout or proximity to sensitive components.
   • Solution: Reposition the inductor or use shielding.

3. Low Efficiency in High-Frequency Circuits:

   • Cause: Parasitic capacitance or unsuitable core material.
   • Solution: Use a high-quality ferrite core inductor designed for high frequencies.

4. Inductance Value Drift:

   • Cause: Core saturation or temperature changes.
   • Solution: Select an inductor with a higher saturation current and temperature stability.

Q1: Can I use any inductor for RF applications?
A1: No, RF applications require inductors with low parasitic capacitance and high Q factors. Choose inductors specifically designed for RF use.

Q2: How do I calculate the cutoff frequency for an LC filter?
A2: Use the formula:
[ f_c = \frac{1}{2\pi\sqrt{L \cdot C}} ]
where (L) is the inductance in henries and (C) is the capacitance in farads.

Q3: What happens if the inductor saturates?
A3: When an inductor saturates, its inductance decreases significantly, and it may no longer function as intended. This can lead to circuit instability or failure.

Q4: Are inductors polarized?
A4: Most inductors are not polarized, but some specialized types, such as coupled inductors or transformers, may have polarity markings.

By following this documentation, you can effectively select, use, and troubleshoot inductors in your electronic projects.
