How to Use esp32 r1 d32: Examples, Pinouts, and Specs

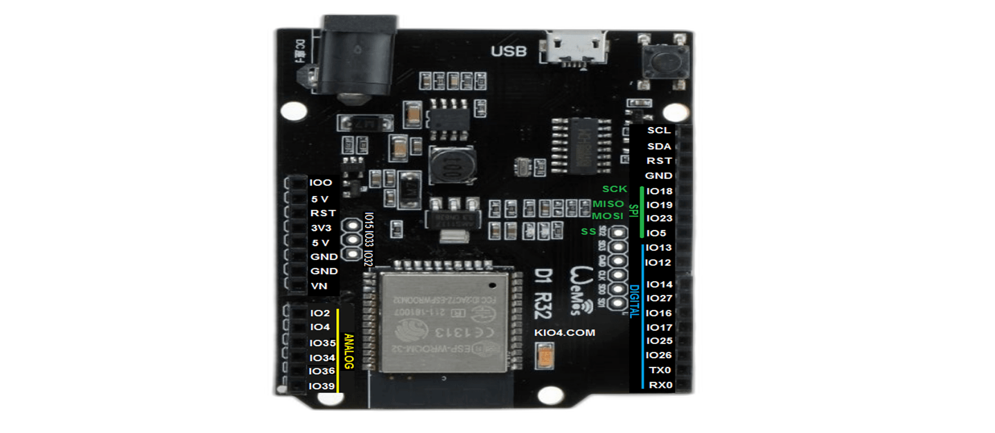

The ESP32 R1 D32, manufactured by Burhan Butt, is a powerful and versatile microcontroller module designed for IoT (Internet of Things) applications. It features dual-core processing, integrated Wi-Fi, and Bluetooth capabilities, making it ideal for a wide range of wireless communication and embedded systems projects. The ESP32 R1 D32 is widely used in smart home devices, wearable electronics, industrial automation, and more.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Robotics and drones
• Industrial monitoring and control systems
• Prototyping and educational projects

The ESP32 R1 D32 is built to deliver high performance while maintaining low power consumption. Below are its key technical details:

The ESP32 R1 D32 has a total of 38 pins, with the following key pin assignments:

For a complete pinout diagram, refer to the official datasheet provided by the manufacturer.

1. Powering the Module:
   • Use a 5V USB connection or supply 3.3V directly to the VIN pin. Ensure the power source can provide sufficient current (at least 500 mA).
2. Connecting to Peripherals:
   • Use the GPIO pins for interfacing with sensors, actuators, and other devices. Configure the pins as input or output in your code.
3. Programming the ESP32:
   • The ESP32 R1 D32 can be programmed using the Arduino IDE or ESP-IDF (Espressif IoT Development Framework). Install the necessary board support package (BSP) for ESP32 in your development environment.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the module.
• Boot Mode: To enter programming mode, hold the IO0 pin low while resetting the module.
• Wi-Fi and Bluetooth: Avoid placing the module near metal objects or enclosures that may interfere with wireless signals.
• Power Supply: Use a stable power source to prevent unexpected resets or malfunctions.

Below is an example of how to use the ESP32 R1 D32 to blink an LED connected to GPIO2:

// Example: Blink an LED using ESP32 R1 D32
// Connect an LED to GPIO2 with a 220-ohm resistor in series.

#define LED_PIN 2  // Define GPIO2 as the LED pin

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

1. ESP32 Not Detected by Computer:

   • Ensure the correct USB driver is installed for the ESP32.
   • Check the USB cable for data transfer capability (some cables are power-only).
   • Verify that the module is in programming mode (IO0 held low during reset).

2. Wi-Fi Connection Fails:

   • Double-check the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi.

3. Module Keeps Resetting:

   • Verify that the power supply provides sufficient current (at least 500 mA).
   • Check for loose connections or short circuits in your circuit.

4. GPIO Pins Not Responding:

   • Confirm that the pins are correctly configured in your code.
   • Avoid using ADC2 pins when Wi-Fi is active, as they share resources.

Q: Can I power the ESP32 R1 D32 with a 5V battery?
A: Yes, you can power the module via the VIN pin with a 5V battery. Ensure the battery can supply sufficient current.

Q: Does the ESP32 R1 D32 support OTA (Over-the-Air) updates?
A: Yes, the ESP32 supports OTA updates, allowing you to upload new firmware wirelessly.

Q: Can I use the ESP32 R1 D32 with a 3.3V sensor?
A: Absolutely. The ESP32 operates at 3.3V logic levels, making it compatible with 3.3V sensors.

For additional support, refer to the official documentation or contact the manufacturer.
