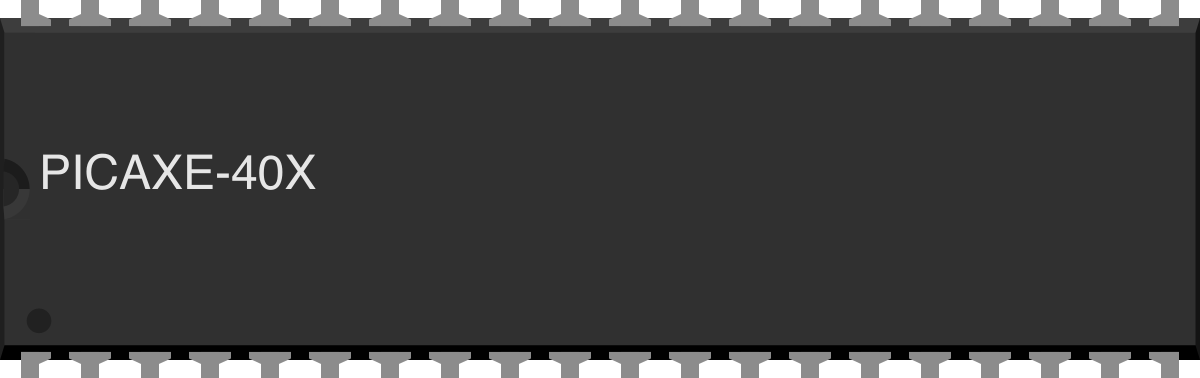

How to Use PICAXE-40X: Examples, Pinouts, and Specs

The PICAXE-40X is a versatile microcontroller designed for educational and hobbyist projects. It features a built-in BASIC interpreter, enabling users to program it with ease, even without prior experience in complex programming languages. The 40X variant offers a wide range of input/output pins, analog-to-digital conversion capabilities, and compatibility with various interfacing options. These features make it ideal for applications such as robotics, sensor interfacing, home automation, and data logging.

Common applications of the PICAXE-40X include:

• Robotics and motor control
• Environmental monitoring with sensors
• Home automation systems
• Educational projects for learning microcontroller programming
• Data acquisition and logging systems

The PICAXE-40X microcontroller is equipped with the following technical features:

• Microcontroller Core: PIC16F877A (with PICAXE firmware)
• Operating Voltage: 4.5V to 5.5V
• Clock Speed: 4 MHz (internal resonator)
• Programming Language: BASIC (via PICAXE Editor software)
• Digital I/O Pins: 33
• Analog Input Pins: 8 (10-bit resolution)
• EEPROM Memory: 256 bytes
• RAM: 368 bytes
• Flash Memory: 8 KB (shared with program storage)
• Communication Protocols: Serial (RS232), I2C, SPI
• Power Consumption: ~2 mA (active), ~50 µA (sleep mode)
• Package Type: 40-pin DIP (Dual Inline Package)

The PICAXE-40X has a total of 40 pins, with specific functions assigned to each. Below is the pin configuration:

1. Power Supply: Connect the VDD pin to a 5V power source and the VSS pins to ground.
2. Programming: Use the PICAXE Editor software to write your BASIC program. Connect the Serial In and Serial Out pins to a PC using the PICAXE download cable for programming.
3. I/O Connections:
   • For digital inputs/outputs, connect devices (e.g., LEDs, switches) to the appropriate pins on Ports B, C, or D.
   • For analog inputs, connect sensors to the pins on Port A (A0-A7).
4. External Components: Add pull-up or pull-down resistors to input pins as needed. Use decoupling capacitors near the power pins for stable operation.
5. Communication: Use the built-in serial, I2C, or SPI protocols to interface with other devices like displays, sensors, or other microcontrollers.

• Always use a regulated 5V power supply to avoid damaging the microcontroller.
• Avoid leaving input pins floating; use pull-up or pull-down resistors to define their state.
• Use heat sinks or current-limiting resistors when driving high-power devices like motors or LEDs.
• Ensure proper grounding for all connected components to prevent noise or erratic behavior.
• Use the PICAXE Editor's simulation feature to test your code before uploading it to the microcontroller.

Below is an example of a simple program to blink an LED connected to pin B0:

' Blink an LED connected to pin B0
' This program toggles the LED on and off every second

main:                     ' Define the main program loop
  high B0                 ' Set pin B0 to HIGH (turn LED on)
  pause 1000              ' Wait for 1 second (1000 ms)
  low B0                  ' Set pin B0 to LOW (turn LED off)
  pause 1000              ' Wait for 1 second (1000 ms)
  goto main               ' Repeat the loop

1. Microcontroller Not Responding to Programming:

   • Ensure the Serial In and Serial Out pins are correctly connected to the PC.
   • Verify that the PICAXE Editor software is configured for the correct COM port.
   • Check the power supply and ensure the microcontroller is powered on.

2. Erratic Behavior or Resetting:

   • Add decoupling capacitors (e.g., 0.1 µF) near the VDD and VSS pins.
   • Ensure all input pins are properly terminated with pull-up or pull-down resistors.

3. Analog Inputs Not Working:

   • Confirm that the input voltage to the analog pins is within the 0-5V range.
   • Check the program code to ensure the correct ADC channel is selected.

4. Overheating:

   • Reduce the current load on the I/O pins by using current-limiting resistors.
   • Ensure the microcontroller is not exposed to voltages exceeding its specifications.

Q: Can the PICAXE-40X be powered by batteries?
A: Yes, it can be powered by a 4.5V to 5.5V battery pack. Ensure the voltage is regulated.

Q: What software is required to program the PICAXE-40X?
A: The PICAXE Editor software, available for free on the PICAXE website, is used for programming.

Q: Can I use the PICAXE-40X with external sensors?
A: Yes, the microcontroller supports analog and digital sensors. Use the analog pins (A0-A7) for sensors with variable voltage outputs.

Q: Is the PICAXE-40X compatible with Arduino shields?
A: No, the PICAXE-40X is not directly compatible with Arduino shields due to differences in pin layout and programming.

By following this documentation, users can effectively utilize the PICAXE-40X microcontroller for a variety of projects and applications.
