How to Use Victron Orion-Tr Smart 12/12-30: Examples, Pinouts, and Specs

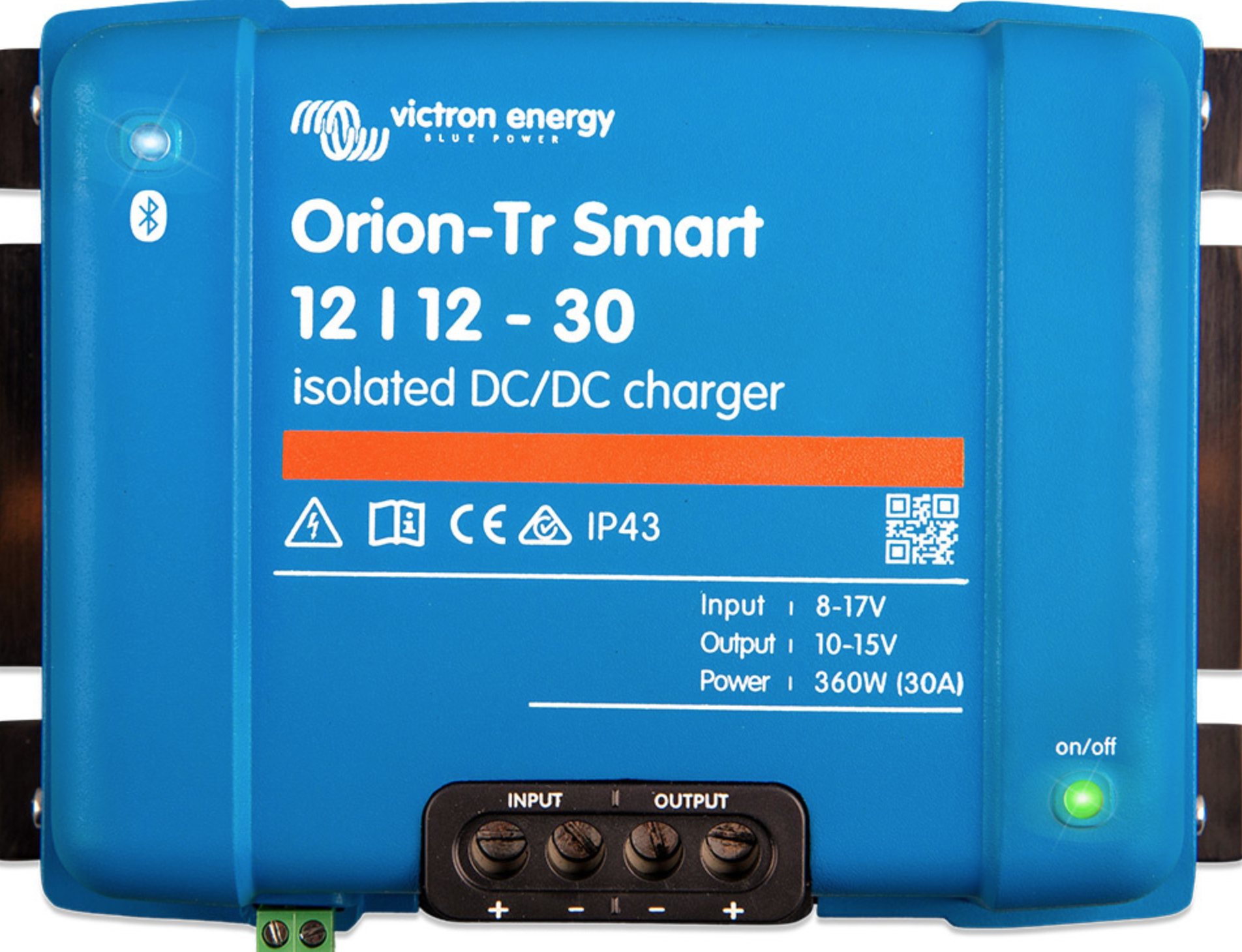

Image of Victron Orion-Tr Smart 12/12-30
Cirkit Designer LogoDesign with Victron Orion-Tr Smart 12/12-30 in Cirkit Designer

Introduction

The Victron Orion-Tr Smart 12/12-30 is a high-performance DC-DC charger designed to charge a 12V battery from another 12V battery. It features advanced smart technology for efficient charging, system monitoring, and seamless integration into various power systems. This charger is ideal for applications requiring reliable power management, such as in vehicles, boats, RVs, and off-grid solar systems. Its Bluetooth connectivity allows for easy configuration and monitoring via the VictronConnect app.

Explore Projects Built with Victron Orion-Tr Smart 12/12-30

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar and Wind Energy Harvesting System with Charge Controller and Inverter
Image of bolito: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
This circuit is designed for a renewable energy system that integrates solar and wind power generation. It includes a solar and wind charge controller connected to a solar panel and a lantern vertical wind turbine for energy harvesting, a 12V 200Ah battery for energy storage, and a dump load for excess energy dissipation. The system also features a 12V inverter to convert stored DC power to AC, powering an outlet and a wireless charger for end-use applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Air Conditioner with Battery Backup and ATS
Image of Copy of Solar Circuit 380W: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel and a solar charge controller. The stored energy is then used to power an inverter, which supplies AC power to an air conditioner through an automatic transfer switch (ATS) and circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of POWER SUPPLY: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Inverter and ATS
Image of Solar Circuit 100W: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, with a solar charge controller managing the charging process. The stored energy is then converted to AC power via a power inverter, which can be used to power an air conditioner through an automatic transfer switch (ATS) and AC circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Victron Orion-Tr Smart 12/12-30

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of bolito: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
Solar and Wind Energy Harvesting System with Charge Controller and Inverter
This circuit is designed for a renewable energy system that integrates solar and wind power generation. It includes a solar and wind charge controller connected to a solar panel and a lantern vertical wind turbine for energy harvesting, a 12V 200Ah battery for energy storage, and a dump load for excess energy dissipation. The system also features a 12V inverter to convert stored DC power to AC, powering an outlet and a wireless charger for end-use applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Solar Circuit 380W: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
Solar-Powered Air Conditioner with Battery Backup and ATS
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel and a solar charge controller. The stored energy is then used to power an inverter, which supplies AC power to an air conditioner through an automatic transfer switch (ATS) and circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Circuit 100W: A project utilizing Victron Orion-Tr Smart 12/12-30 in a practical application
Solar-Powered Battery Backup System with Inverter and ATS
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, with a solar charge controller managing the charging process. The stored energy is then converted to AC power via a power inverter, which can be used to power an air conditioner through an automatic transfer switch (ATS) and AC circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Charging auxiliary batteries in vehicles, RVs, and boats.
  • Powering 12V systems in off-grid solar setups.
  • Maintaining battery health in dual-battery systems.
  • Applications requiring isolated or non-isolated DC-DC conversion.

Technical Specifications

Key Technical Details

Parameter Value
Input Voltage Range 10V - 17V
Output Voltage Range 10V - 15V
Output Current (Max) 30A
Efficiency Up to 87%
Operating Temperature -20°C to +55°C (derating above 40°C)
Bluetooth Connectivity Yes (via VictronConnect app)
Galvanic Isolation Yes
Protection Features Over-temperature, short circuit, reverse polarity

Pin Configuration and Descriptions

Pin Name Description
Input (+) Positive terminal for the input 12V battery.
Input (-) Negative terminal for the input 12V battery.
Output (+) Positive terminal for the output 12V battery.
Output (-) Negative terminal for the output 12V battery.
Remote On/Off Terminal for enabling/disabling the charger remotely.
Bluetooth Wireless interface for configuration and monitoring via VictronConnect app.

Usage Instructions

How to Use the Component in a Circuit

  1. Wiring the Input and Output:

    • Connect the input terminals (Input (+) and Input (-)) to the source 12V battery.
    • Connect the output terminals (Output (+) and Output (-)) to the target 12V battery.
    • Ensure proper polarity to avoid damage to the charger or batteries.

  2. Remote On/Off Control:

    • Use the Remote On/Off terminal to control the charger via an external switch or relay.
    • Alternatively, configure the charger to turn on/off automatically using the VictronConnect app.

  3. Bluetooth Configuration:

    • Download the VictronConnect app on your smartphone or tablet.
    • Pair the charger with your device via Bluetooth.
    • Use the app to configure charging parameters, monitor performance, and update firmware.

  4. Mounting:

    • Securely mount the charger in a well-ventilated area to prevent overheating.
    • Avoid exposure to water or excessive vibration.

Important Considerations and Best Practices

  • Ensure the input battery has sufficient capacity to supply the required current.
  • Use appropriately rated cables and fuses to prevent voltage drops and ensure safety.
  • Avoid operating the charger in environments exceeding the specified temperature range.
  • Regularly check connections for corrosion or loose terminals.
  • For optimal performance, configure the charger settings to match the target battery type (e.g., AGM, Gel, Lithium).

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
Charger does not turn on Incorrect wiring or polarity Verify wiring and ensure correct polarity.
Output voltage is too low Input voltage is insufficient Check the input battery voltage.
Overheating Poor ventilation or high ambient temp. Improve ventilation or reduce load.
Bluetooth connection fails Device is out of range or interference Move closer or eliminate interference.
Charger shuts down unexpectedly Over-temperature or short circuit Check for overheating or wiring faults.

FAQs

  1. Can I use this charger with a Lithium battery?

    • Yes, the charger supports Lithium batteries. Configure the settings via the VictronConnect app.

  2. What happens if I reverse the polarity of the input or output?

    • The charger includes reverse polarity protection, but it is recommended to double-check connections to avoid triggering protection mechanisms.

  3. Can I use this charger in a solar power system?

    • Yes, it is suitable for off-grid solar systems where a 12V battery needs to be charged from another 12V source.

  4. How do I update the firmware?

    • Use the VictronConnect app to check for firmware updates and install them wirelessly via Bluetooth.

  5. Is the charger waterproof?

    • No, the charger is not waterproof. Install it in a dry, protected location.

This documentation provides a comprehensive guide to understanding, using, and troubleshooting the Victron Orion-Tr Smart 12/12-30 DC-DC charger. For further assistance, refer to the official Victron user manual or contact their support team.
