How to Use MPU6050: Examples, Pinouts, and Specs

The MPU6050 is a 6-axis motion tracking device that combines a 3-axis gyroscope and a 3-axis accelerometer on a single chip. This compact and versatile sensor is widely used in applications requiring motion sensing and orientation detection. Its ability to measure angular velocity and linear acceleration makes it a popular choice in robotics, drones, mobile devices, and gaming controllers. Additionally, the MPU6050 features a Digital Motion Processor (DMP) that can process complex motion algorithms internally, reducing the computational load on the host microcontroller.

Below are the key technical details of the MPU6050:

• Supply Voltage: 2.375V to 3.46V (typically 3.3V)
• Communication Interface: I2C (up to 400kHz)
• Gyroscope Range: ±250, ±500, ±1000, ±2000 degrees/second
• Accelerometer Range: ±2g, ±4g, ±8g, ±16g
• Operating Temperature: -40°C to +85°C
• Power Consumption: 3.9mA (typical in active mode)
• Package: 4x4x0.9mm QFN

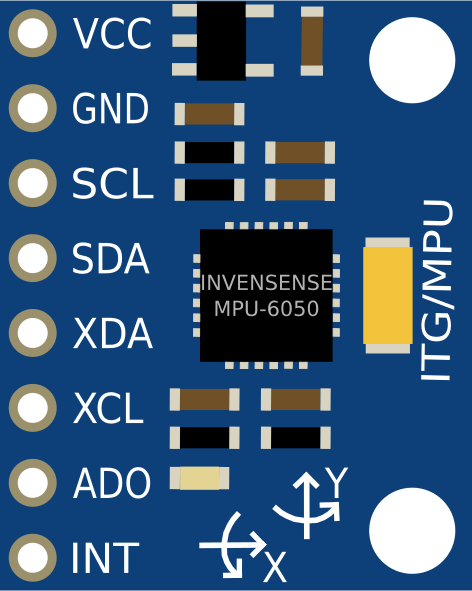

The MPU6050 has 8 pins, as described in the table below:

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
2. I2C Communication: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) on the SCL and SDA lines if not already present.
3. Address Selection: Set the AD0 pin to GND for the default I2C address (0x68) or to VCC for the alternate address (0x69).
4. Interrupt Pin: Optionally, connect the INT pin to a GPIO pin on your microcontroller to handle interrupts.

• Use decoupling capacitors (e.g., 0.1µF) near the VCC pin to stabilize the power supply.
• Ensure the I2C bus voltage matches the MPU6050's operating voltage (3.3V).
• Avoid excessive vibrations or shocks to the sensor, as they may affect accuracy.
• Calibrate the sensor for your specific application to improve measurement accuracy.

Below is an example of how to interface the MPU6050 with an Arduino UNO using the I2C protocol:

#include <Wire.h>
#include <MPU6050.h> // Include the MPU6050 library

MPU6050 mpu; // Create an MPU6050 object

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging

  // Initialize the MPU6050
  if (!mpu.begin(MPU6050_SCALE_2000DPS, MPU6050_RANGE_2G)) {
    Serial.println("Could not find a valid MPU6050 sensor!");
    while (1); // Halt the program if initialization fails
  }

  Serial.println("MPU6050 initialized successfully!");
}

void loop() {
  Vector rawAccel = mpu.readRawAccel(); // Read raw accelerometer data
  Vector rawGyro = mpu.readRawGyro();   // Read raw gyroscope data

  // Print accelerometer data
  Serial.print("Accel X: "); Serial.print(rawAccel.XAxis);
  Serial.print(" | Y: "); Serial.print(rawAccel.YAxis);
  Serial.print(" | Z: "); Serial.println(rawAccel.ZAxis);

  // Print gyroscope data
  Serial.print("Gyro X: "); Serial.print(rawGyro.XAxis);
  Serial.print(" | Y: "); Serial.print(rawGyro.YAxis);
  Serial.print(" | Z: "); Serial.println(rawGyro.ZAxis);

  delay(500); // Wait for 500ms before the next reading
}

1. MPU6050 Not Detected on I2C Bus:

   • Ensure the wiring is correct, especially the SCL and SDA connections.
   • Verify that the pull-up resistors are present on the I2C lines.
   • Check the AD0 pin configuration to ensure the correct I2C address is being used.

2. Inaccurate Readings:

   • Perform sensor calibration to account for offsets and biases.
   • Minimize external vibrations and shocks during operation.
   • Ensure the sensor is mounted securely and aligned properly.

3. Interrupt Pin Not Working:

   • Verify that the INT pin is connected to a GPIO pin on the microcontroller.
   • Check the MPU6050 configuration to ensure interrupts are enabled.

Q: Can the MPU6050 operate at 5V?
A: No, the MPU6050 operates at a maximum voltage of 3.46V. Use a voltage regulator or level shifter if interfacing with a 5V system.

Q: How do I calibrate the MPU6050?
A: Calibration involves measuring and compensating for sensor offsets. Many libraries, such as the MPU6050 library for Arduino, include built-in calibration functions.

Q: What is the purpose of the DMP in the MPU6050?
A: The Digital Motion Processor (DMP) processes motion algorithms internally, reducing the computational load on the host microcontroller and providing more accurate motion data.

Q: Can I connect additional sensors to the MPU6050?
A: Yes, the XDA and XCL pins allow you to connect external sensors via the auxiliary I2C bus.

By following this documentation, you can effectively integrate the MPU6050 into your projects and troubleshoot common issues.
