How to Use esp32: Examples, Pinouts, and Specs

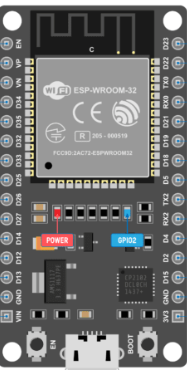

Image of esp32
Cirkit Designer LogoDesign with esp32 in Cirkit Designer

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful microcontroller for a wide range of projects.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arena 2: A project utilizing esp32 in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing esp32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing esp32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Robotics and drones
  • Industrial automation
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

General Specifications

Feature Description
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE)
Operating Voltage 3.3V
GPIO Pins Up to 34 (varies by module)
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power modes available

Pin Configuration and Descriptions

The ESP32 has multiple variants, but the following table outlines the general pin configuration for the ESP32-WROOM-32 module:

Pin Name Function Description
3V3 Power Supply 3.3V input for powering the ESP32
GND Ground Ground connection
EN Enable Active-high enable pin for the chip
GPIO0 Input/Output, Boot Mode Select Used for boot mode selection during flashing
GPIO2 Input/Output General-purpose I/O pin
GPIO12 Input/Output General-purpose I/O pin
GPIO13 Input/Output, Touch Sensor General-purpose I/O pin with touch capability
GPIO15 Input/Output, PWM General-purpose I/O pin with PWM functionality
TXD0 UART Transmit UART0 transmit pin
RXD0 UART Receive UART0 receive pin
ADC1_CH0 Analog Input ADC channel 0
DAC1 Digital-to-Analog Converter DAC output channel 1

Note: The exact pinout may vary depending on the ESP32 module or development board you are using. Always refer to the datasheet or schematic for your specific board.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32: Provide a stable 3.3V power supply to the 3V3 pin. Avoid exceeding the voltage limit to prevent damage.
  2. Connecting GPIO Pins: Use the GPIO pins for interfacing with sensors, actuators, and other peripherals. Configure the pins as input or output in your code.
  3. Programming the ESP32: The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments. Connect the ESP32 to your computer via USB for programming.
  4. Wi-Fi and Bluetooth Setup: Use the built-in libraries to configure Wi-Fi and Bluetooth for your application.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Boot Mode: During flashing, ensure GPIO0 is pulled low to enter bootloader mode.
  • Power Supply: Use a decoupling capacitor (e.g., 10 µF) near the power pins to stabilize the voltage.
  • Heat Management: The ESP32 may heat up during operation. Ensure proper ventilation or heat dissipation for prolonged use.

Example Code for Arduino IDE

Below is an example of how to connect the ESP32 to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi SSID
const char* password = "Your_PASSWORD"; // Replace with your Wi-Fi password
const int ledPin = 2;                 // GPIO2 is often connected to an onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set GPIO2 as an output pin
  Serial.begin(115200);    // Initialize serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Tip: Replace Your_SSID and Your_PASSWORD with your Wi-Fi credentials. Ensure the onboard LED is connected to GPIO2 or modify the ledPin variable accordingly.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi

    • Solution: Double-check the SSID and password. Ensure the Wi-Fi network is operational and within range.
    • Tip: Use WiFi.status() to debug connection issues.
  2. Upload Fails in Arduino IDE

    • Solution: Ensure the correct board and COM port are selected in the Arduino IDE. Hold the BOOT button on the ESP32 while uploading the code.
  3. ESP32 Keeps Resetting

    • Solution: Check the power supply. Insufficient current can cause resets. Use a stable 3.3V source capable of supplying at least 500 mA.
  4. GPIO Pin Not Working

    • Solution: Verify the pin mode is correctly set in the code. Some pins have specific functions or restrictions (e.g., GPIO0, GPIO2).

FAQs

  • Q: Can the ESP32 operate on 5V?

    • A: No, the ESP32 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.
  • Q: How do I reset the ESP32?

    • A: Press the EN (Enable) button on the board to reset the ESP32.
  • Q: Can I use the ESP32 with batteries?

    • A: Yes, the ESP32 can be powered by batteries. Use a 3.7V LiPo battery with a voltage regulator if needed.
  • Q: Is the ESP32 compatible with Arduino libraries?

    • A: Yes, many Arduino libraries are compatible with the ESP32. Install the ESP32 board package in the Arduino IDE to get started.

By following this documentation, you can effectively use the ESP32 in your projects and troubleshoot common issues.
