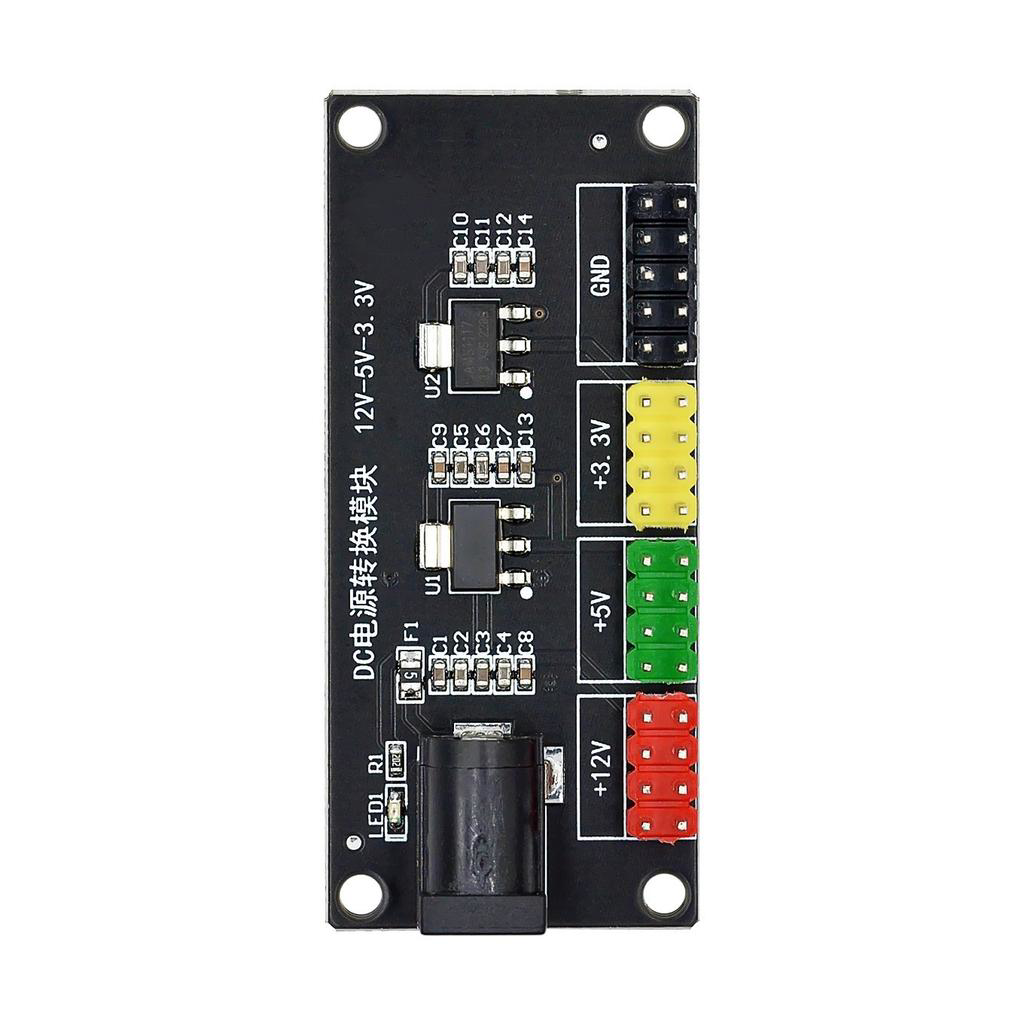

Design with step down multi in Cirkit DesignerA Step Down Multi is a type of voltage regulator designed to reduce a higher input voltage to a lower, stable output voltage. It is commonly used in power supply circuits to provide the necessary voltage levels for various electronic components. This component is highly efficient and versatile, making it suitable for a wide range of applications, including battery-powered devices, embedded systems, and industrial electronics.
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Open Project in Cirkit Designer
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Open Project in Cirkit Designer
This circuit is a control system powered by a 12V to 5V step-down converter, featuring an Arduino Mega 2560 microcontroller that interfaces with various sensors (IR sensors, limit switch), actuators (servos, stepper motors), and a 20x4 LCD display. The system is designed to monitor inputs from sensors and control outputs to motors and display information, suitable for applications like automation or robotics.
Open Project in Cirkit Designer
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Open Project in Cirkit DesignerBelow are the key technical details of the Step Down Multi voltage regulator:
| Parameter | Value |
|---|---|
| Input Voltage Range | 4.5V to 40V |
| Output Voltage Range | 1.25V to 37V |
| Maximum Output Current | 3A (with proper heat dissipation) |
| Efficiency | Up to 92% |
| Switching Frequency | 150 kHz |
| Operating Temperature | -40°C to +85°C |
The Step Down Multi typically has the following pin configuration:
| Pin Name | Description |
|---|---|
| VIN | Input voltage pin. Connect the higher input voltage to this pin. |
| VOUT | Output voltage pin. Provides the regulated lower voltage. |
| GND | Ground pin. Connect to the ground of the circuit. |
| ADJ/FB | Adjustment or feedback pin. Used to set the output voltage via an external resistor divider. |
| EN (optional) | Enable pin. Used to turn the regulator on or off (if available). |
Connect the Input Voltage (VIN):
Attach the higher input voltage source (e.g., a 12V battery) to the VIN pin. Ensure the input voltage is within the specified range (4.5V to 40V).
Connect the Output Voltage (VOUT):
Connect the load or device requiring the regulated voltage to the VOUT pin. Use a multimeter to verify the output voltage.
Set the Output Voltage (if adjustable):
If the Step Down Multi has an adjustable output, use a resistor divider network connected to the ADJ/FB pin to set the desired output voltage. Refer to the datasheet for the resistor values.
Ground Connection (GND):
Connect the GND pin to the ground of the circuit. Ensure all ground connections are common.
Enable Pin (if available):
If the regulator includes an EN pin, connect it to a logic HIGH signal to enable the regulator or to a logic LOW signal to disable it.
Below is an example of how to use the Step Down Multi to power an Arduino UNO with a 12V input:
// Example code to blink an LED using Arduino UNO powered by Step Down Multi
// Ensure the Step Down Multi is set to output 5V before connecting to Arduino
const int ledPin = 13; // Pin connected to the onboard LED
void setup() {
pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
No Output Voltage:
Output Voltage is Incorrect:
Overheating:
High Output Ripple:
Q: Can I use the Step Down Multi to power a Raspberry Pi?
A: Yes, but ensure the output voltage is set to 5V and the current rating is sufficient for the Raspberry Pi model you are using.
Q: What happens if I exceed the input voltage range?
A: Exceeding the input voltage range can damage the regulator. Always ensure the input voltage is within the specified range.
Q: Can I use the Step Down Multi with an AC input?
A: No, the Step Down Multi is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using the regulator.
Q: How do I calculate the resistor values for the ADJ/FB pin?
A: Refer to the datasheet for the formula to calculate the resistor values based on the desired output voltage. Typically, the formula is:
VOUT = VREF * (1 + R1/R2)
where VREF is the reference voltage (e.g., 1.25V).
