How to Use 2 channel relay 5v: Examples, Pinouts, and Specs

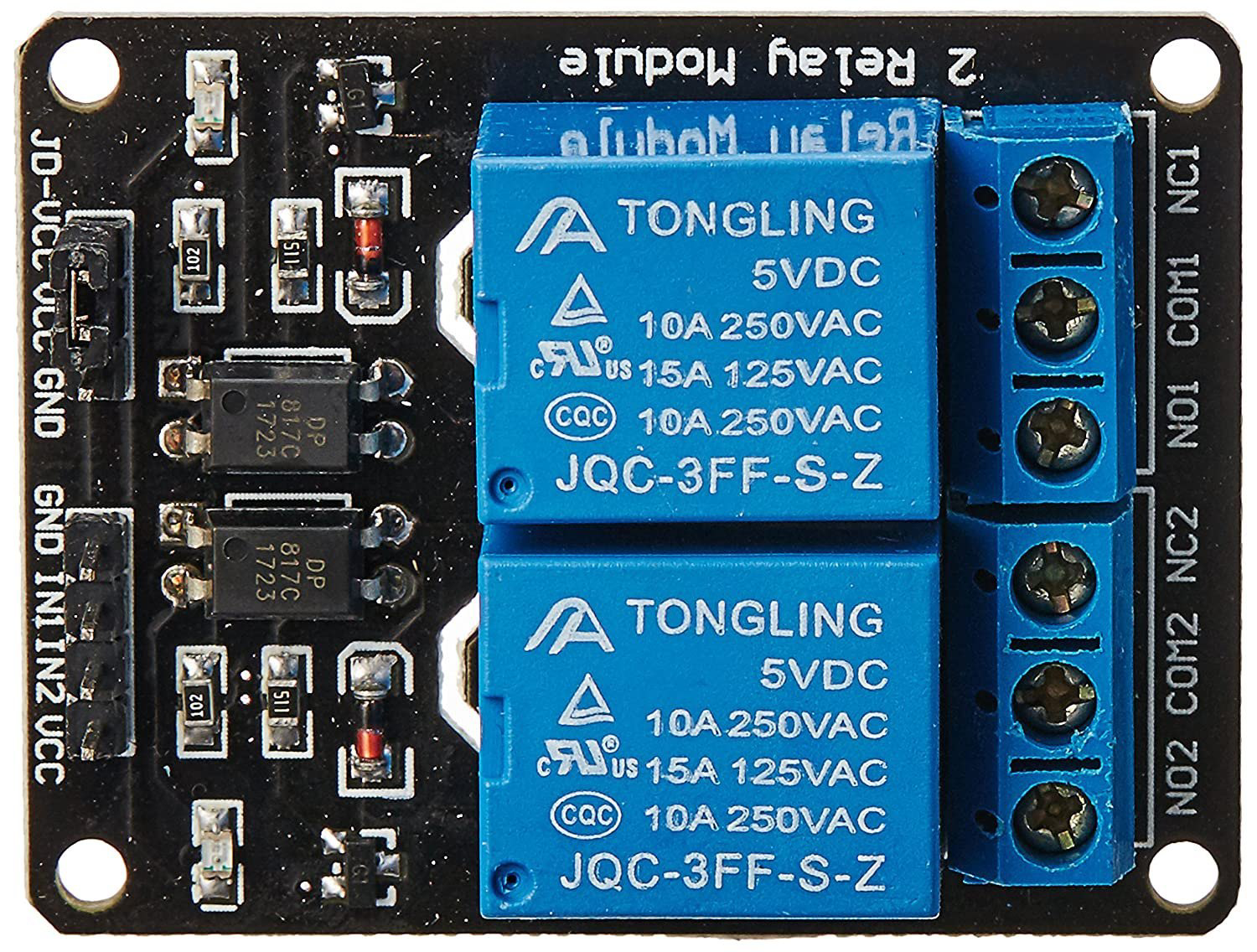

The 2 Channel Relay 5V module is an electronic component designed to control two independent circuits using a low voltage 5V signal. It acts as an electrically operated switch, allowing a microcontroller or other low-power device to control high-power devices such as lights, motors, or appliances. This module is widely used in home automation, robotics, and industrial control systems.

• Home automation systems (e.g., controlling lights or fans)
• Industrial equipment control
• Robotics and IoT projects
• Switching high-voltage AC or DC loads using low-voltage control signals
• Motor control in automation systems

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (compatible with most microcontrollers)
• Relay Type: SPDT (Single Pole Double Throw)
• Maximum Load:
  • AC: 250V at 10A
  • DC: 30V at 10A
• Channels: 2 (independent control for each relay)
• Isolation: Optocoupler isolation for safe operation
• Indicator LEDs: Onboard LEDs for relay status indication
• Dimensions: ~50mm x 40mm x 20mm

Each relay has three output terminals:

1. Power the Module: Connect the VCC pin to a 5V power source and the GND pin to ground.
2. Connect the Control Signals:
   • Connect IN1 and IN2 to the digital output pins of a microcontroller (e.g., Arduino).
   • When the control signal is LOW (0V), the corresponding relay will activate.
3. Connect the Load:
   • For each relay, connect the load to the COM and NO or NC terminals, depending on the desired behavior:
     • Use NO if the load should be OFF by default and turn ON when the relay is activated.
     • Use NC if the load should be ON by default and turn OFF when the relay is activated.
4. Test the Circuit:
   • Use the microcontroller to send control signals to IN1 and IN2 to toggle the relays.
   • Observe the onboard LEDs to verify relay activation.

• Isolation: Ensure proper isolation between the control side (low voltage) and the load side (high voltage) to prevent damage or hazards.
• Power Supply: Use a stable 5V power supply to avoid erratic relay behavior.
• Load Ratings: Do not exceed the maximum load ratings (250V AC/10A or 30V DC/10A) to prevent damage to the relay.
• Active LOW Logic: The relays are triggered by a LOW signal (0V). Ensure your microcontroller logic accounts for this.
• Flyback Diodes: If controlling inductive loads (e.g., motors), use flyback diodes across the load to protect the relay from voltage spikes.

// Example code to control a 2 Channel Relay 5V module with Arduino UNO

// Define the relay control pins
const int relay1 = 7; // Connect IN1 to digital pin 7
const int relay2 = 8; // Connect IN2 to digital pin 8

void setup() {
  // Set relay pins as outputs
  pinMode(relay1, OUTPUT);
  pinMode(relay2, OUTPUT);

  // Initialize relays to OFF state (HIGH signal)
  digitalWrite(relay1, HIGH);
  digitalWrite(relay2, HIGH);
}

void loop() {
  // Turn Relay 1 ON (LOW signal)
  digitalWrite(relay1, LOW);
  delay(1000); // Keep it ON for 1 second

  // Turn Relay 1 OFF (HIGH signal)
  digitalWrite(relay1, HIGH);
  delay(1000); // Keep it OFF for 1 second

  // Turn Relay 2 ON (LOW signal)
  digitalWrite(relay2, LOW);
  delay(1000); // Keep it ON for 1 second

  // Turn Relay 2 OFF (HIGH signal)
  digitalWrite(relay2, HIGH);
  delay(1000); // Keep it OFF for 1 second
}

1. Relays Not Activating:

   • Ensure the VCC and GND pins are properly connected to a 5V power source.
   • Verify that the control signals (IN1 and IN2) are being correctly sent from the microcontroller.
   • Check if the onboard LEDs light up when the relays are triggered.

2. Erratic Relay Behavior:

   • Use a stable and sufficient power supply for the relay module.
   • Ensure proper grounding between the relay module and the microcontroller.

3. Load Not Switching:

   • Verify the wiring of the load to the COM, NO, and NC terminals.
   • Ensure the load does not exceed the relay's maximum ratings.

4. Microcontroller Resetting:

   • High-power loads may cause voltage spikes. Use flyback diodes or snubber circuits to suppress these spikes.

Q1: Can I use this module with a 3.3V microcontroller?
A1: Yes, the module is compatible with 3.3V control signals, but ensure the VCC pin is still powered with 5V.

Q2: Can I control AC and DC loads simultaneously?
A2: Yes, as long as each relay's load does not exceed the specified ratings.

Q3: Is it safe to use this module for high-voltage applications?
A3: Yes, but ensure proper isolation and follow safety precautions when working with high voltages.
