How to Use LMV324: Examples, Pinouts, and Specs

The LMV324 is a low-voltage quad operational amplifier manufactured by Texas Instruments. It is designed for use in battery-powered and portable applications, offering excellent performance with low power consumption. The LMV324 features a wide supply voltage range, low input bias current, and low offset voltage, making it ideal for precision signal processing tasks.

• Signal conditioning and amplification
• Active filters and integrators
• Battery-powered devices
• Sensor interfacing
• Audio processing circuits

The LMV324 is a versatile operational amplifier with the following key specifications:

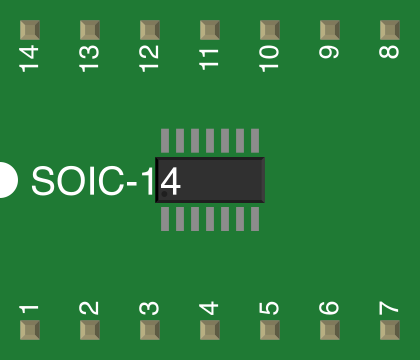

The LMV324 is available in a 14-pin package. The pinout and descriptions are as follows:

1. Power Supply: Connect the positive power supply (VCC+) to pin 11 and the ground (VCC-) to pin 4. Ensure the supply voltage is within the range of 2.7 V to 5.5 V.
2. Input Connections: Connect the input signals to the inverting (IN-) and non-inverting (IN+) pins of the desired operational amplifier.
3. Output Connections: The amplified signal will be available at the corresponding output pin (OUT).
4. Feedback Network: Use resistors, capacitors, or other components to configure the feedback network for the desired gain and frequency response.

• Power Supply Decoupling: Place a 0.1 µF ceramic capacitor close to the power supply pins to reduce noise and improve stability.
• Input Impedance: Ensure the source impedance is low enough to avoid signal degradation.
• Thermal Considerations: Operate the LMV324 within the specified temperature range to prevent performance issues.

The LMV324 can be used to amplify an analog signal (e.g., from a sensor) before feeding it into the Arduino's analog input. Below is an example circuit and Arduino code:

• Connect the sensor output to the non-inverting input (IN1+).
• Use a resistor network to set the gain of the amplifier.
• Connect the output (OUT1) to the Arduino's analog input pin (e.g., A0).

// Example code to read an amplified signal from the LMV324
// and display the value on the serial monitor.

const int analogPin = A0; // Analog pin connected to LMV324 output

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  int sensorValue = analogRead(analogPin); // Read the analog value
  float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage
  Serial.print("Sensor Voltage: ");
  Serial.println(voltage); // Print the voltage to the serial monitor
  delay(500); // Wait for 500 ms before the next reading
}

1. No Output Signal:

   • Check the power supply connections (VCC+ and VCC-).
   • Verify that the input signal is within the specified voltage range.
   • Ensure the feedback network is correctly configured.

2. Distorted Output:

   • Verify that the supply voltage is stable and within the recommended range.
   • Check for excessive load on the output pin.

3. High Noise Levels:

   • Add decoupling capacitors near the power supply pins.
   • Use shielded cables for input signals to reduce interference.

Q1: Can the LMV324 operate with a single power supply?
A1: Yes, the LMV324 is designed to operate with a single supply voltage as low as 2.7 V.

Q2: What is the maximum output current of the LMV324?
A2: The LMV324 can source or sink up to 40 mA, but it is recommended to keep the output current below 10 mA for optimal performance.

Q3: Can the LMV324 be used for audio applications?
A3: Yes, the LMV324's low noise and rail-to-rail output make it suitable for basic audio signal processing.

Q4: How do I calculate the gain of the amplifier?
A4: The gain is determined by the feedback resistor network. For a non-inverting configuration, the gain is given by:
[ \text{Gain} = 1 + \frac{R_f}{R_{in}} ]
where ( R_f ) is the feedback resistor and ( R_{in} ) is the input resistor.

By following this documentation, users can effectively integrate the LMV324 into their circuits for a wide range of applications.
