How to Use motor and wheels: Examples, Pinouts, and Specs

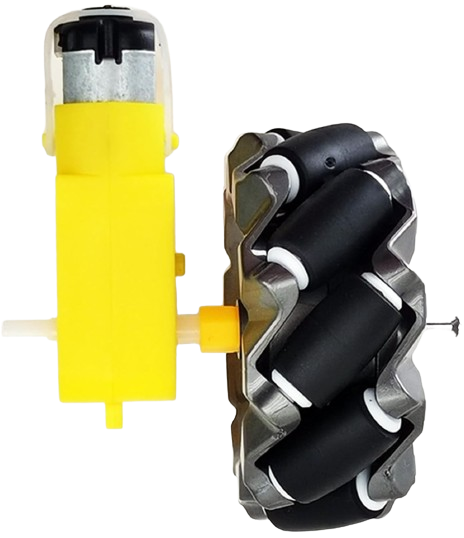

• The motor and wheels assembly is a fundamental component for building mobile robotic systems. It typically consists of a DC motor or stepper motor attached to wheels, enabling movement and navigation. This setup is widely used in robotics, remote-controlled vehicles, and automation projects.
• Common applications include robotic cars, conveyor systems, automated guided vehicles (AGVs), and educational robotics kits.

1. Power Supply: Ensure the motor is powered with the correct voltage and current as per its specifications. Use a motor driver or H-bridge circuit to control the motor safely.
2. Motor Driver: Connect the motor to a motor driver (e.g., L298N or L293D) to control speed and direction. The motor driver acts as an interface between the microcontroller and the motor.
3. Wheel Attachment: Securely attach the wheels to the motor shaft. Ensure proper alignment to avoid wobbling during operation.
4. Microcontroller Control: Use a microcontroller (e.g., Arduino UNO) to send control signals to the motor driver for speed and direction control.

• Current Limiting: Use a current-limiting resistor or a motor driver with built-in current control to prevent damage to the motor.
• Heat Dissipation: Motors can heat up during prolonged use. Ensure proper ventilation or heat sinks if necessary.
• Power Supply: Use a separate power supply for the motor to avoid voltage drops affecting the microcontroller.

// This example demonstrates how to control a DC motor using an L298N motor driver
// and an Arduino UNO. The motor speed is controlled using PWM, and the direction
// is controlled using digital pins.

const int ENA = 9;  // PWM pin for motor speed control
const int IN1 = 8;  // Direction control pin 1
const int IN2 = 7;  // Direction control pin 2

void setup() {
  pinMode(ENA, OUTPUT);  // Set ENA as output
  pinMode(IN1, OUTPUT);  // Set IN1 as output
  pinMode(IN2, OUTPUT);  // Set IN2 as output
}

void loop() {
  // Rotate motor forward
  digitalWrite(IN1, HIGH);  // Set IN1 high
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 150);    // Set motor speed (0-255)

  delay(2000);  // Run motor for 2 seconds

  // Rotate motor backward
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, HIGH);  // Set IN2 high
  analogWrite(ENA, 150);    // Set motor speed (0-255)

  delay(2000);  // Run motor for 2 seconds

  // Stop motor
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 0);      // Set motor speed to 0

  delay(2000);  // Wait for 2 seconds before repeating
}

1. Motor Not Spinning:

   • Check the power supply voltage and current.
   • Verify connections to the motor driver and microcontroller.
   • Ensure the motor driver is receiving control signals.

2. Motor Spins in One Direction Only:

   • Verify the direction control pins (e.g., IN1 and IN2) are correctly connected.
   • Check the logic levels being sent to the motor driver.

3. Motor Overheating:

   • Reduce the load on the motor or use a motor with higher torque.
   • Ensure proper ventilation or add a heat sink.

4. Wheels Wobbling:

   • Check that the wheels are securely attached to the motor shaft.
   • Use compatible hubs or adapters for a snug fit.

• Can I use a single power supply for both the motor and microcontroller?

  • It is recommended to use separate power supplies to avoid voltage drops and noise affecting the microcontroller.

• What type of motor driver should I use?

  • For low-power motors, L293D or L298N drivers are suitable. For high-power motors, consider using MOSFET-based drivers or dedicated motor controllers.

• How do I calculate the required torque for my application?

  • Determine the load weight, wheel radius, and desired acceleration. Use the formula:
    Torque (Nm) = Force (N) × Radius (m).
    Force can be calculated as mass × acceleration.

This documentation provides a comprehensive guide to using motor and wheels assemblies effectively in your projects.
