How to Use HDR-30-12 Power Supply DIN Rail: Examples, Pinouts, and Specs

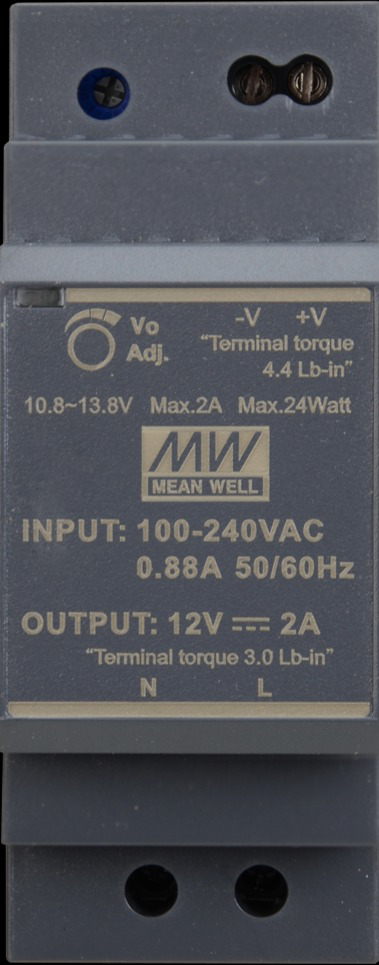

Image of HDR-30-12 Power Supply DIN Rail
Cirkit Designer LogoDesign with HDR-30-12 Power Supply DIN Rail in Cirkit Designer

Introduction

The HDR-30-12 is a compact and reliable power supply unit manufactured by Mean Well. Designed for DIN rail mounting, it delivers a stable 12V DC output with a maximum current of 2.5A. This power supply is ideal for industrial and automation applications, offering high efficiency, low power consumption, and a slim form factor that saves space in control panels.

Explore Projects Built with HDR-30-12 Power Supply DIN Rail

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with 7-Segment Voltage Display
Image of BEE PBL: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
This circuit is a regulated power supply that converts 220V AC to a lower, stable DC voltage. It includes a step-down transformer, bridge rectifier, voltage regulator, and filtering capacitors. A 7-segment display indicates the output voltage, which can be adjusted using a potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
Image of Power supply: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
Image of Cellion-Tesla: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with HDR-30-12 Power Supply DIN Rail

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of rfdriver: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BEE PBL: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
AC to DC Power Supply with 7-Segment Voltage Display
This circuit is a regulated power supply that converts 220V AC to a lower, stable DC voltage. It includes a step-down transformer, bridge rectifier, voltage regulator, and filtering capacitors. A 7-segment display indicates the output voltage, which can be adjusted using a potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power supply: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Cellion-Tesla: A project utilizing HDR-30-12 Power Supply DIN Rail in a practical application
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation systems
  • Building automation and control
  • Security and surveillance systems
  • LED lighting systems
  • Communication equipment
  • General-purpose DC power supply for electronics projects

Technical Specifications

The following table outlines the key technical specifications of the HDR-30-12 power supply:

Parameter Value
Manufacturer Mean Well
Part Number HDR-30-12
Input Voltage Range 85-264 VAC / 120-370 VDC
Output Voltage 12V DC
Maximum Output Current 2.5A
Maximum Output Power 30W
Efficiency Up to 90%
No-Load Power Consumption <0.3W
Operating Temperature -30°C to +70°C
Dimensions 35mm (W) x 90mm (H) x 54.5mm (D)
Mounting Type DIN Rail (TS-35/7.5 or TS-35/15)
Protection Features Overload, Overvoltage, Short Circuit

Pin Configuration and Descriptions

The HDR-30-12 features screw terminal connections for input and output. The pin configuration is as follows:

Pin Label Description
1 L AC Line Input
2 N AC Neutral Input
3 -V DC Output Negative (-)
4 +V DC Output Positive (+)

Usage Instructions

How to Use the HDR-30-12 in a Circuit

  1. Mounting: Securely mount the HDR-30-12 on a DIN rail (TS-35/7.5 or TS-35/15) in your control panel or enclosure.
  2. Input Connection:
    • Connect the AC line (L) and neutral (N) wires to the input terminals.
    • Ensure the input voltage is within the specified range (85-264 VAC).
  3. Output Connection:
    • Connect the load to the +V and -V output terminals.
    • Verify that the total load does not exceed the maximum output current of 2.5A.
  4. Power On:
    • After verifying all connections, power on the AC input to activate the power supply.
    • Measure the output voltage to confirm it is 12V DC before connecting sensitive devices.

Important Considerations and Best Practices

  • Ventilation: Ensure adequate airflow around the power supply to prevent overheating.
  • Load Requirements: Do not exceed the maximum output current (2.5A) to avoid triggering overload protection.
  • Wiring: Use appropriately rated wires for both input and output connections.
  • Grounding: Properly ground the power supply to reduce electrical noise and improve safety.
  • Environmental Conditions: Operate the power supply within the specified temperature range (-30°C to +70°C).

Example: Using HDR-30-12 with an Arduino UNO

The HDR-30-12 can be used to power an Arduino UNO and other peripherals. Below is an example wiring and code snippet:

Wiring

  1. Connect the +V terminal of the HDR-30-12 to the VIN pin of the Arduino UNO.
  2. Connect the -V terminal of the HDR-30-12 to the GND pin of the Arduino UNO.
  3. Ensure the HDR-30-12 is powered by an appropriate AC input.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by HDR-30-12
// Ensure the HDR-30-12 is providing 12V DC to the Arduino's VIN pin.

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Verify that the AC input voltage is within the specified range (85-264 VAC).
    • Check the wiring connections for loose or incorrect terminals.
    • Ensure the load does not exceed the maximum output current (2.5A).
  2. Overheating:

    • Ensure proper ventilation around the power supply.
    • Check for excessive load or short circuits on the output.
  3. Output Voltage Fluctuations:

    • Verify that the input voltage is stable and within range.
    • Check for loose connections or damaged wires.
  4. Power Supply Not Turning On:

    • Confirm that the AC input is live and properly connected.
    • Inspect the power supply for visible damage or faults.

FAQs

Q1: Can the HDR-30-12 be used with DC input?
Yes, the HDR-30-12 supports DC input in the range of 120-370 VDC.

Q2: Is the HDR-30-12 suitable for outdoor use?
No, the HDR-30-12 is not weatherproof and should be used in a dry, indoor environment.

Q3: Can I use the HDR-30-12 to power multiple devices?
Yes, as long as the total current draw does not exceed 2.5A.

Q4: What happens if the load exceeds 2.5A?
The power supply's overload protection will activate, shutting down the output to prevent damage.

Q5: How do I reset the power supply after overload protection is triggered?
Remove the excessive load, then cycle the AC input power off and on to reset the unit.
