How to Use 3S 11.1V 5200mah LiPo Battery: Examples, Pinouts, and Specs

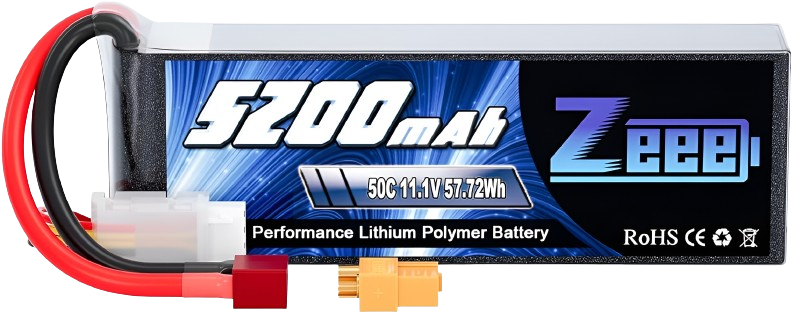

The 3S 11.1V 5200mAh LiPo battery is a high-performance lithium polymer battery designed for applications requiring high energy density and reliable power delivery. It consists of three cells connected in series (3S), providing a nominal voltage of 11.1V and a capacity of 5200mAh. This battery is widely used in remote-controlled (RC) vehicles, drones, robotics, and other electronic devices that demand high discharge rates and lightweight power sources.

• RC cars, boats, and airplanes
• Drones and quadcopters
• Robotics and automation systems
• Portable electronic devices
• DIY electronics and hobbyist projects

Below are the key technical details of the 3S 11.1V 5200mAh LiPo battery:

The battery typically has two connectors:

1. Main Power Connector: Supplies power to the load.
2. Balance Connector: Used for charging and monitoring individual cell voltages.

1. Connecting the Battery:

   • Use the main power connector (e.g., XT60) to connect the battery to your device or power distribution board.
   • Ensure the polarity matches the device's input terminals (positive to positive, negative to negative).
   • Use the balance connector with a compatible LiPo charger for safe charging.

2. Charging the Battery:

   • Always use a LiPo-compatible balance charger.
   • Set the charger to the correct cell count (3S) and capacity (5200mAh).
   • Charge at a rate of 1C (5.2A) unless the manufacturer specifies otherwise.

3. Discharging the Battery:

   • Avoid discharging below 9.0V (3.0V per cell) to prevent damage.
   • Use a voltage alarm or battery monitor to track the voltage during use.

4. Storage:

   • Store the battery at a voltage of 11.4V (3.8V per cell) for long-term storage.
   • Keep the battery in a cool, dry place away from flammable materials.

• Safety: Never puncture, crush, or short-circuit the battery. LiPo batteries can catch fire if mishandled.
• Temperature: Avoid charging or discharging the battery in extreme temperatures (below 0°C or above 50°C).
• Inspection: Regularly inspect the battery for swelling, damage, or loose connectors.
• Balancing: Always balance-charge the battery to ensure all cells are charged evenly.

To power an Arduino UNO with this battery, you can use a voltage regulator or a DC-DC step-down converter to reduce the voltage to 5V. Below is an example circuit and code:

1. Connect the battery's main power connector to the input of a DC-DC step-down converter.
2. Set the converter's output to 5V.
3. Connect the converter's output to the Arduino UNO's 5V and GND pins.

// Example code for Arduino UNO powered by a 3S 11.1V LiPo battery
// This code blinks an LED connected to pin 13

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Battery Swelling:

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately. Dispose of it safely.

2. Battery Not Charging:

   • Cause: Faulty charger, damaged balance connector, or incorrect settings.
   • Solution: Check the charger settings and connections. Replace damaged components.

3. Device Shuts Down Prematurely:

   • Cause: Low voltage cutoff triggered by the device.
   • Solution: Recharge the battery and ensure it is not over-discharged.

4. Uneven Cell Voltages:

   • Cause: Cells are out of balance due to improper charging.
   • Solution: Use a balance charger to equalize the cell voltages.

1. Can I use this battery for a 12V device?

   • Yes, but ensure the device can handle the voltage range (9.0V to 12.6V).

2. What is the maximum safe discharge current?

   • Multiply the capacity (5.2Ah) by the discharge rate (e.g., 25C). For 25C, the maximum current is 130A.

3. How do I safely dispose of a LiPo battery?

   • Discharge the battery completely, submerge it in saltwater for 24 hours, and take it to a recycling center.

4. Can I charge the battery without a balance charger?

   • No, always use a balance charger to prevent overcharging individual cells.

By following this documentation, you can safely and effectively use the 3S 11.1V 5200mAh LiPo battery in your projects.
