How to Use ir sensor: Examples, Pinouts, and Specs

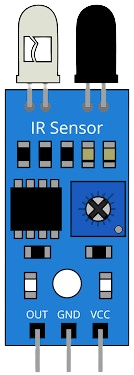

Image of ir sensor
Cirkit Designer LogoDesign with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor detects infrared radiation, which is invisible to the human eye but can be emitted by objects as heat or light. IR sensors are widely used in various applications, including proximity sensing, motion detection, and remote control systems. These sensors are versatile, cost-effective, and easy to integrate into electronic circuits, making them a popular choice for hobbyists and professionals alike.

Common applications of IR sensors include:

  • Obstacle detection in robotics
  • Line-following robots
  • Motion detection for security systems
  • Remote control signal reception
  • Automatic door systems

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino-Based IR Sensor Array with LED Indicators
Image of mixed: A project utilizing ir sensor in a practical application
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
Image of PROJECT: A project utilizing ir sensor in a practical application
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO IR Sensor Motion Detector
Image of ir: A project utilizing ir sensor in a practical application
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Dual IR Sensor Interface
Image of Person in and out monitoring: A project utilizing ir sensor in a practical application
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of mixed: A project utilizing ir sensor in a practical application
Arduino-Based IR Sensor Array with LED Indicators
This circuit uses an Arduino UNO to interface with multiple IR sensors, each connected to a different digital input pin. The IR sensors are powered by the Arduino's 5V and GND pins, and the setup is likely intended for detecting objects or motion in various zones.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PROJECT: A project utilizing ir sensor in a practical application
Battery-Powered IR Sensor Alarm with LED Indicator and Buzzer
This circuit is a simple IR sensor-based alarm system. When the IR sensor detects an object, it triggers an OR gate, which in turn activates a buzzer and lights up an LED. The circuit is powered by a 9V battery and includes a rocker switch to control the power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir: A project utilizing ir sensor in a practical application
Arduino UNO IR Sensor Motion Detector
This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Person in and out monitoring: A project utilizing ir sensor in a practical application
ESP32-Based Dual IR Sensor Interface
This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a typical IR sensor module:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2cm to 30cm (varies by model)
Output Signal Digital (High/Low) or Analog
Wavelength Sensitivity ~940nm (infrared light spectrum)
Response Time ~10ms

Pin Configuration

The IR sensor module typically has three pins. Below is the pinout description:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground connection
3 OUT Output pin (Digital or Analog signal, depending on the model)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
  2. Connect the Output: Attach the OUT pin to a microcontroller's input pin (e.g., Arduino) or to another circuit component to process the signal.
  3. Position the Sensor: Place the sensor so that it faces the object or area you want to monitor. Ensure there are no obstructions between the sensor and the target.
  4. Read the Output: The sensor will output a HIGH signal (logic 1) when no object is detected and a LOW signal (logic 0) when an object is within its detection range.

Important Considerations and Best Practices

  • Ambient Light Interference: IR sensors can be affected by sunlight or other strong light sources. Use the sensor in controlled lighting conditions or shield it from direct light.
  • Distance Calibration: Adjust the detection range using the onboard potentiometer (if available) to suit your application.
  • Power Supply: Ensure a stable power supply to avoid erratic behavior.
  • Avoid Overheating: Prolonged exposure to high temperatures can degrade the sensor's performance.

Example: Connecting an IR Sensor to an Arduino UNO

Below is an example of how to use an IR sensor with an Arduino UNO to detect an object and turn on an LED when the object is detected.

Circuit Connections

  • Connect the IR sensor's VCC pin to the Arduino's 5V pin.
  • Connect the GND pin to the Arduino's GND.
  • Connect the OUT pin to Arduino digital pin 2.
  • Connect an LED to digital pin 13 with a 220-ohm resistor in series.

Arduino Code

// Define the pin numbers for the IR sensor and LED
const int irSensorPin = 2;  // IR sensor output connected to digital pin 2
const int ledPin = 13;      // LED connected to digital pin 13

void setup() {
  pinMode(irSensorPin, INPUT);  // Set IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set LED pin as output
  Serial.begin(9600);           // Initialize serial communication for debugging
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the IR sensor output

  if (sensorValue == LOW) {
    // Object detected, turn on the LED
    digitalWrite(ledPin, HIGH);
    Serial.println("Object detected!");
  } else {
    // No object detected, turn off the LED
    digitalWrite(ledPin, LOW);
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay to stabilize readings
}

Troubleshooting and FAQs

Common Issues

  1. Sensor Not Detecting Objects

    • Ensure the sensor is powered correctly (check VCC and GND connections).
    • Verify that the object is within the sensor's detection range.
    • Check for obstructions or reflective surfaces that may interfere with the IR signal.
  2. False Positives or Erratic Behavior

    • Reduce ambient light interference by shielding the sensor.
    • Adjust the potentiometer (if available) to fine-tune the detection range.
    • Ensure a stable power supply to the sensor.
  3. No Output Signal

    • Verify the wiring connections, especially the OUT pin.
    • Test the sensor with a multimeter to confirm it is functioning.

FAQs

Q: Can the IR sensor detect transparent objects?
A: IR sensors may struggle to detect transparent or highly reflective objects, as these can distort or block the IR signal.

Q: How do I increase the detection range?
A: Some IR sensors have an adjustable potentiometer to increase the range. Alternatively, use a sensor model with a longer detection range.

Q: Can I use the IR sensor outdoors?
A: While possible, outdoor use may require shielding the sensor from sunlight and other IR sources to avoid interference.

By following this documentation, you can effectively integrate an IR sensor into your projects and troubleshoot common issues.
