How to Use LM358N: Examples, Pinouts, and Specs

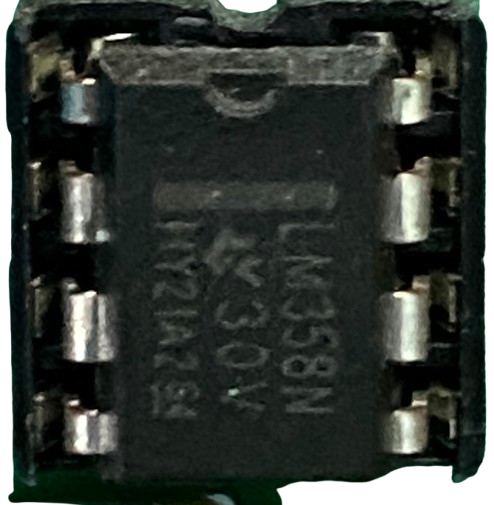

The LM358N, manufactured by OEM with the part ID OPAMP, is a dual operational amplifier (op-amp) designed for a wide range of applications. It can operate on either a single power supply or dual power supplies, making it versatile for various circuit designs. The LM358N is known for its low power consumption, high gain, and reliable performance. It is commonly used in signal conditioning, filtering, and amplification applications.

• Signal amplification in audio and sensor circuits
• Active filters and oscillators
• Voltage followers and comparators
• Analog signal processing in embedded systems

The LM358N comes in an 8-pin DIP package. Below is the pinout and description:

1. Power Supply: Connect the VCC+ pin (Pin 8) to the positive voltage supply and the VCC- pin (Pin 4) to ground (for single supply) or a negative voltage (for dual supply).
2. Input Connections: Connect the signal to be amplified to the inverting (Pin 2 or 6) or non-inverting (Pin 3 or 5) input, depending on the desired configuration.
3. Output: The amplified signal will be available at the corresponding output pin (Pin 1 or 7).
4. Feedback Resistors: Use appropriate resistors or components in the feedback loop to set the gain and behavior of the op-amp (e.g., for inverting or non-inverting configurations).
5. Bypass Capacitors: Place decoupling capacitors (e.g., 0.1 µF) close to the power supply pins to reduce noise.

• Ensure the input voltage does not exceed the supply voltage range to avoid damage.
• The output voltage swing is limited to approximately 1.5V below the supply voltage.
• Use proper grounding techniques to minimize noise and interference.
• Avoid exceeding the maximum ratings for supply voltage and temperature.

The LM358N can be used to amplify an analog signal (e.g., from a sensor) before feeding it into an Arduino UNO's analog input. Below is an example circuit and code:

• Connect the LM358N's VCC+ to 5V and VCC- to GND.
• Connect the sensor output to the non-inverting input (Pin 3).
• Use a feedback resistor network to set the gain.
• Connect the output (Pin 1) to the Arduino's analog input (e.g., A0).

// Example code to read an amplified signal from LM358N
const int analogPin = A0; // Pin connected to LM358N output
int sensorValue = 0;      // Variable to store the analog reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorValue = analogRead(analogPin); // Read the analog value
  Serial.print("Amplified Signal: ");
  Serial.println(sensorValue); // Print the value to the Serial Monitor
  delay(500); // Wait for 500ms before the next reading
}

1. No Output Signal:

   • Cause: Incorrect power supply connections.
   • Solution: Verify that VCC+ and VCC- are connected properly.

2. Distorted Output:

   • Cause: Input signal exceeds the op-amp's input voltage range.
   • Solution: Ensure the input signal is within the specified range.

3. High Noise in Output:

   • Cause: Poor grounding or lack of decoupling capacitors.
   • Solution: Add bypass capacitors near the power supply pins and check grounding.

4. Output Voltage Clipping:

   • Cause: Output signal exceeds the op-amp's voltage swing limits.
   • Solution: Reduce the input signal amplitude or adjust the gain.

Q1: Can the LM358N be used for audio amplification?
A1: Yes, the LM358N can be used for basic audio amplification, but its bandwidth and slew rate may limit performance in high-fidelity applications.

Q2: What is the maximum gain I can achieve with the LM358N?
A2: The gain is determined by the feedback resistor network. Theoretically, very high gains are possible, but practical limitations like stability and bandwidth must be considered.

Q3: Can I use the LM358N with a 3.3V power supply?
A3: Yes, the LM358N can operate with a supply voltage as low as 3V, making it suitable for 3.3V systems.

Q4: Is the LM358N suitable for battery-powered applications?
A4: Yes, its low power consumption makes it ideal for battery-powered devices.
