How to Use 테무 태양광 패널 100W 타입 1: Examples, Pinouts, and Specs

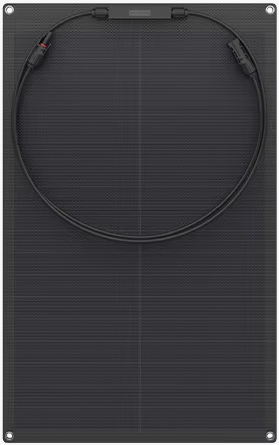

The 테무 태양광 패널 100W 타입 1 is a high-efficiency solar panel designed to convert sunlight into electricity with minimal energy loss. Manufactured by 테무, this 100W solar panel is ideal for a wide range of applications, including residential, commercial, and off-grid systems. Its robust design ensures durability and reliable performance in various environmental conditions.

• Residential rooftop solar systems
• Commercial solar installations
• Off-grid power systems (e.g., RVs, boats, and remote cabins)
• Solar-powered lighting and small appliances
• Backup power systems

The 테무 태양광 패널 100W 타입 1 does not have traditional pins but uses standard MC4 connectors for electrical connections. Below is a description of the connectors:

1. Positioning the Panel:

   • Install the panel in a location with maximum sunlight exposure.
   • Ensure the panel is tilted at the optimal angle for your geographic location.
   • Avoid shading from nearby objects, as this can significantly reduce efficiency.

2. Connecting the Panel:

   • Use the MC4 connectors to connect the panel to a charge controller or directly to a load (if applicable).
   • Ensure proper polarity when connecting the positive (+) and negative (-) terminals.

3. Using with a Charge Controller:

   • Connect the solar panel to the input terminals of the charge controller.
   • Connect the charge controller's output terminals to a battery or load.
   • This setup prevents overcharging and protects the battery.

4. Using with an Inverter:

   • For AC-powered devices, connect the output of the charge controller to an inverter.
   • The inverter will convert the DC power from the panel or battery into AC power.

• Safety First: Always handle the panel with care to avoid damaging the glass or frame.
• Voltage Matching: Ensure the panel's voltage and current ratings are compatible with your system.
• Wiring: Use appropriately rated cables to handle the current output of the panel.
• Maintenance: Clean the panel surface periodically to remove dirt and debris for optimal performance.
• Bypass Diodes: The panel includes built-in bypass diodes to minimize power loss in case of partial shading.

The 테무 태양광 패널 100W 타입 1 can be used to power an Arduino UNO via a battery and charge controller. Below is an example of Arduino code to monitor the battery voltage:

// Arduino code to monitor battery voltage using an analog pin
const int voltagePin = A0; // Analog pin connected to the battery
const float voltageDividerRatio = 5.7; // Adjust based on your resistor divider

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(voltagePin); // Read the analog value
  float voltage = (sensorValue * 5.0 / 1023.0) * voltageDividerRatio;

  // Print the voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Use a voltage divider circuit to step down the battery voltage to a safe level for the Arduino's analog input (0-5V).

1. Can this panel be used in series or parallel configurations?

   • Yes, multiple panels can be connected in series to increase voltage or in parallel to increase current. Ensure the total voltage and current are within the limits of your charge controller or inverter.

2. What is the lifespan of this solar panel?

   • The panel is designed to last over 25 years with proper maintenance.

3. Is the panel waterproof?

   • Yes, the panel has an IP65 rating, making it resistant to water and dust.

4. Can I connect this panel directly to a battery?

   • It is recommended to use a charge controller to prevent overcharging and protect the battery.

By following this documentation, users can effectively integrate the 테무 태양광 패널 100W 타입 1 into their solar energy systems for reliable and efficient performance.
