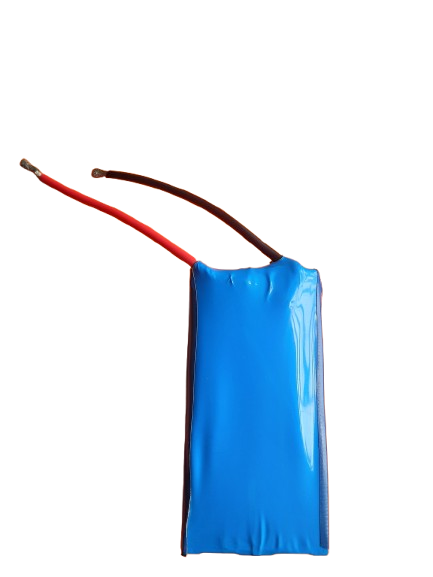

The 6.4V LiFePO4 Battery by Local (Part ID: Battery) is a lithium iron phosphate battery designed for high performance and safety. With a nominal voltage of 6.4V, this battery offers excellent thermal stability, a long cycle life, and robust safety features. It is an ideal choice for applications requiring reliable energy storage, such as electric vehicles, renewable energy systems, portable electronics, and backup power supplies.
Explore Projects Built with 6.4V LiFePO4 Battery
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
This circuit consists of a solar panel, a Li-ion battery, and a TP4056 charging module. The solar panel charges the Li-ion battery through the TP4056 module, which manages the charging process to ensure safe and efficient charging of the battery.
This circuit consists of a Li-ion battery connected to a step-up power module through a rocker switch, which boosts the voltage to power a ring of copper gauge with an aluminum frame. The rocker switch allows the user to control the power flow from the battery to the step-up module, which then supplies the boosted voltage to the copper ring.
This circuit consists of a TP4056 module connected to a 3.7V LiPo battery, providing a charging interface for the battery. The TP4056 manages the charging process by connecting its B+ and B- pins to the battery's positive and ground terminals, respectively.
Below are the key technical details of the 6.4V LiFePO4 Battery:
Parameter
Value
Nominal Voltage
6.4V
Nominal Capacity
2000mAh (varies by model)
Maximum Charge Voltage
7.3V
Discharge Cut-off Voltage
5.6V
Maximum Continuous Current
10A
Peak Discharge Current
20A (for 10 seconds)
Cycle Life
>2000 cycles (at 80% DoD)
Operating Temperature
-20°C to 60°C (discharge)
Storage Temperature
-10°C to 45°C
Chemistry
Lithium Iron Phosphate (LiFePO4)
Dimensions
Varies by model
Weight
~300g (varies by model)
Pin Configuration and Descriptions
The battery typically comes with two terminals for connection:
Pin
Label
Description
1
Positive (+)
Positive terminal for charging and discharging
2
Negative (-)
Negative terminal for charging and discharging
Some models may include additional connectors for battery management systems (BMS) or temperature sensors.
Usage Instructions
How to Use the 6.4V LiFePO4 Battery in a Circuit
Connection: Connect the positive terminal of the battery to the positive rail of your circuit and the negative terminal to the ground rail. Ensure proper polarity to avoid damage.
Charging: Use a LiFePO4-compatible charger with a maximum charge voltage of 7.3V. Overcharging can damage the battery or reduce its lifespan.
Discharging: Ensure the load does not exceed the maximum continuous current rating (10A). Use a fuse or current-limiting circuit for protection.
Battery Management System (BMS): For optimal performance and safety, integrate a BMS to monitor voltage, current, and temperature.
Important Considerations and Best Practices
Avoid Overcharging/Overdischarging: Always use a charger and load that comply with the battery's voltage and current ratings.
Temperature Management: Operate the battery within the specified temperature range to prevent overheating or reduced performance.
Storage: Store the battery at 40-60% charge in a cool, dry place if not in use for extended periods.
Series/Parallel Connections: When connecting multiple batteries in series or parallel, ensure they are of the same capacity and charge level to avoid imbalances.
Example: Using the Battery with an Arduino UNO
The 6.4V LiFePO4 Battery can power an Arduino UNO directly through its VIN pin. Below is an example of connecting the battery to an Arduino UNO and reading its voltage using an analog pin.
Circuit Diagram
Connect the battery's positive terminal to the VIN pin of the Arduino.
Connect the battery's negative terminal to the GND pin of the Arduino.
Use a voltage divider circuit to step down the battery voltage for safe measurement on an analog pin.
Arduino Code
// Define analog pin for voltage measurement
const int voltagePin = A0;
// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive
const float R2 = 10000.0; // Resistor connected to ground
void setup() {
Serial.begin(9600); // Initialize serial communication
}
void loop() {
int rawValue = analogRead(voltagePin); // Read analog value
float voltage = (rawValue / 1023.0) * 5.0; // Convert to voltage (Arduino 5V ADC)
// Adjust for voltage divider
voltage = voltage * (R1 + R2) / R2;
Serial.print("Battery Voltage: ");
Serial.print(voltage);
Serial.println(" V");
delay(1000); // Wait 1 second before next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
Battery Not Charging
Cause: Charger not compatible with LiFePO4 chemistry.
Solution: Use a charger specifically designed for LiFePO4 batteries.
Battery Drains Quickly
Cause: Excessive load or degraded battery capacity.
Solution: Check the load current and ensure it is within the battery's rating. Replace the battery if it has reached the end of its cycle life.
Battery Overheats
Cause: Operating outside the recommended temperature range or overcurrent.
Solution: Reduce the load or improve ventilation. Use a BMS for thermal protection.
Voltage Readings Are Inaccurate
Cause: Incorrect voltage divider resistor values or loose connections.
Solution: Verify resistor values and ensure all connections are secure.
FAQs
Q: Can I connect this battery directly to a 5V device?
A: No, the nominal voltage of 6.4V is higher than 5V. Use a voltage regulator to step down the voltage.
Q: How do I know when the battery is fully charged?
A: The battery is fully charged when the voltage reaches 7.3V. Most LiFePO4 chargers have an indicator for full charge.
Q: Can I use this battery in extreme cold conditions?
A: Yes, but performance may degrade below -20°C. Consider using a battery heater for extreme environments.
Q: Is it safe to connect multiple batteries in series?
A: Yes, but ensure all batteries are of the same capacity and charge level. Use a BMS to manage the series connection safely.
