How to Use ACS712: Examples, Pinouts, and Specs

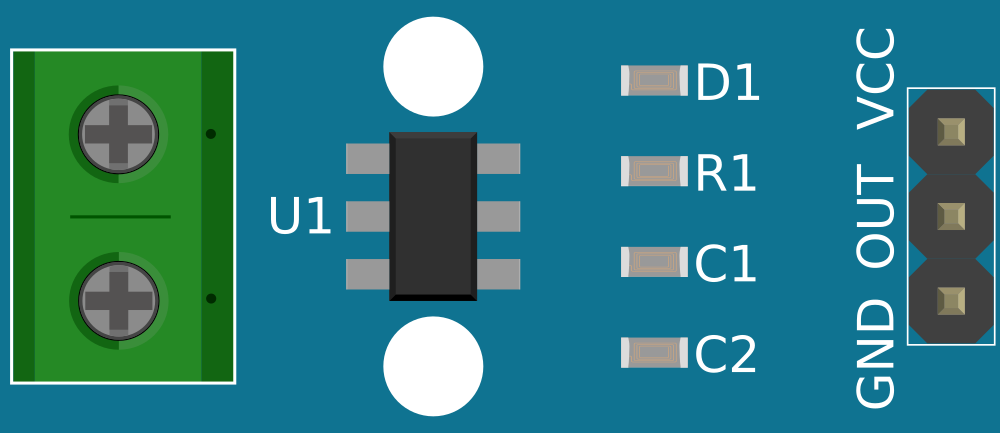

The ACS712 is a Hall effect-based linear current sensor that provides an analog output proportional to the current flowing through it. It is designed to measure both AC and DC currents with high accuracy and electrical isolation. The sensor is available in different variants, such as 5A, 20A, and 30A, to accommodate a range of current measurement needs. Its compact design and ease of use make it a popular choice for current sensing in power monitoring, motor control, battery management, and other applications.

• Power monitoring in appliances and industrial equipment
• Battery management systems
• Motor control and protection
• Overcurrent detection in circuits
• Energy metering and load monitoring

The ACS712 is available in three variants: ACS712-05B (±5A), ACS712-20A (±20A), and ACS712-30A (±30A). Below are the key technical details:

The ACS712 is typically available in an 8-pin SOIC package. Below is the pinout description:

1. Power the Sensor: Connect the VCC pin to a 5V power supply and the GND pin to ground.
2. Connect the Current Path: Pass the current-carrying conductor through the IP+ and IP- terminals. Ensure the current flows in the correct direction as indicated on the module.
3. Read the Output: The VIOUT pin provides an analog voltage proportional to the current. This voltage can be read using an ADC (Analog-to-Digital Converter) on a microcontroller, such as an Arduino.

• Calibration: The output voltage at 0A is typically Vcc/2 (e.g., 2.5V for a 5V supply). Subtract this offset to calculate the actual current.
• Filtering: Add a capacitor (e.g., 0.1 µF) between VIOUT and GND to reduce noise in the output signal.
• Isolation: The ACS712 provides electrical isolation between the current-carrying conductor and the sensing circuitry, making it safe for high-voltage applications.
• Current Range: Choose the appropriate ACS712 variant (05B, 20A, or 30A) based on the maximum current you need to measure.

The following code demonstrates how to use the ACS712 with an Arduino UNO to measure current:

// Include necessary libraries
const int sensorPin = A0; // Connect VIOUT to Arduino analog pin A0
const float sensitivity = 0.185; // Sensitivity for ACS712-05B in V/A
const float vcc = 5.0; // Supply voltage to the ACS712
const float zeroCurrentVoltage = vcc / 2; // Voltage at 0A (2.5V for 5V supply)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read analog value from sensor
  float voltage = (sensorValue / 1023.0) * vcc; // Convert ADC value to voltage
  float current = (voltage - zeroCurrentVoltage) / sensitivity;
  // Calculate current in Amperes

  Serial.print("Current: ");
  Serial.print(current, 3); // Print current with 3 decimal places
  Serial.println(" A");

  delay(1000); // Wait for 1 second before next reading
}

• Replace sensitivity with 0.1 for ACS712-20A or 0.066 for ACS712-30A.
• Ensure the current being measured does not exceed the sensor's rated range.

1. No Output or Incorrect Readings

   • Cause: Improper wiring or loose connections.
   • Solution: Double-check all connections, especially VCC, GND, and VIOUT.

2. High Noise in Output

   • Cause: Lack of filtering capacitor or external electrical noise.
   • Solution: Add a 0.1 µF capacitor between VIOUT and GND to filter noise.

3. Output Voltage Does Not Change

   • Cause: Current is not flowing through the IP+ and IP- terminals.
   • Solution: Ensure the current-carrying conductor is properly connected to the input terminals.

4. Incorrect Current Calculation

   • Cause: Incorrect sensitivity value or offset voltage.
   • Solution: Verify the sensitivity value for your ACS712 variant and account for the offset voltage (Vcc/2).

Q: Can the ACS712 measure both AC and DC currents?
A: Yes, the ACS712 can measure both AC and DC currents. The output voltage will vary proportionally with the instantaneous current.

Q: How do I choose the correct ACS712 variant?
A: Select the variant based on the maximum current you need to measure. For example, use ACS712-05B for currents up to ±5A, ACS712-20A for ±20A, and ACS712-30A for ±30A.

Q: What is the accuracy of the ACS712?
A: The ACS712 has a typical accuracy of ±1.5% of the full-scale reading, depending on the variant and operating conditions.

Q: Can I use the ACS712 with a 3.3V microcontroller?
A: Yes, but ensure the output voltage range of the ACS712 is compatible with the ADC input range of your microcontroller.
