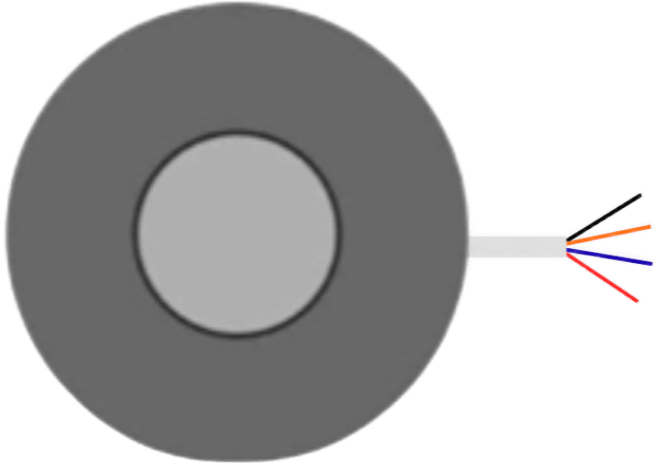

The RIKA RS-TBQ Pyranometer is a precision instrument designed to measure solar radiation received on a surface. It is widely used in meteorology, solar energy monitoring, and environmental research. By quantifying the intensity of sunlight in watts per square meter (W/m²), the RS-TBQ pyranometer provides critical data for applications such as solar panel efficiency analysis, weather forecasting, and climate studies.
Explore Projects Built with Pyranometer
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a water quality monitoring system that uses an Arduino UNO to collect data from a YF-S201 water flow meter, a turbidity sensor, and a temperature sensor. The collected data is then transmitted via a SIM900A GSM module to a remote server or user through SMS. The system measures water flow rate, temperature, and turbidity, and sends periodic updates.
This circuit is designed to measure eye pressure and display the status on a 0.96" OLED screen, using an Arduino UNO as the central processing unit. It includes a TOF10120 sensor for distance measurement and a TCRT 5000 IR sensor for detecting surface changes, both interfacing with the Arduino. A 9V battery powers the system, with a rocker switch to control power flow, and the Arduino manages sensor data processing and OLED display output to indicate eye pressure as high, normal, or low.
This circuit is designed for environmental monitoring, specifically for detecting harmful algal blooms (HABs) by measuring pH, turbidity, and temperature. It uses an Arduino Nano interfaced with a pH meter, turbidity module, and DS18B20 temperature sensor to collect data, and a SIM900A GSM module to send SMS alerts when the readings exceed predefined thresholds. The circuit also includes an LCD screen for displaying the measurements and a resistor for the temperature sensor setup.
This circuit is a spectrophotometer system that uses an Arduino UNO to control an LCD display, a stepper motor, and an LED. The Arduino reads light intensity from a photocell (LDR) to calculate absorbance and concentration of a sample, displaying the results on the LCD and rotating the stepper motor to move the sample.
The following table outlines the key technical details of the RIKA RS-TBQ Pyranometer:
Parameter
Specification
Manufacturer
RIKA
Part ID
RS-TBQ
Measurement Range
0 to 2000 W/m²
Spectral Range
300 nm to 2800 nm
Sensitivity
7 to 14 µV/W/m²
Response Time
≤ 5 seconds
Operating Temperature
-40°C to +80°C
Output Signal
Analog voltage (mV)
Power Supply
Not required (passive sensor)
Accuracy
±2% (daily total)
Ingress Protection
IP65
Pin Configuration and Descriptions
The RS-TBQ pyranometer typically has a simple two-wire connection for its analog output. The pin configuration is as follows:
Pin
Description
Notes
Red
Positive Output (Signal)
Connect to the analog input of a microcontroller or data logger.
Black
Ground
Connect to the ground of the circuit.
Usage Instructions
How to Use the RS-TBQ Pyranometer in a Circuit
Mounting the Pyranometer:
Place the pyranometer on a flat, horizontal surface with an unobstructed view of the sky.
Ensure the sensor dome is clean and free of debris for accurate measurements.
Wiring:
Connect the red wire (positive output) to the analog input pin of your microcontroller or data acquisition system.
Connect the black wire (ground) to the ground pin of your system.
Calibration:
The pyranometer is factory-calibrated, but periodic recalibration is recommended for long-term accuracy.
Use the sensitivity value (in µV/W/m²) provided in the datasheet to convert the analog voltage output to solar radiation in W/m².
Data Conversion:
Measure the output voltage (in mV) from the pyranometer.
Use the formula:
[
\text{Solar Radiation (W/m²)} = \frac{\text{Output Voltage (mV)}}{\text{Sensitivity (µV/W/m²)}}
]
Important Considerations and Best Practices
Avoid Shading: Ensure no objects cast shadows on the pyranometer during operation.
Regular Cleaning: Clean the sensor dome periodically to remove dust, dirt, or bird droppings.
Temperature Effects: While the RS-TBQ operates in a wide temperature range, extreme conditions may slightly affect accuracy.
Cable Length: Minimize cable length to reduce signal loss or interference.
Example: Connecting to an Arduino UNO
The RS-TBQ pyranometer can be easily interfaced with an Arduino UNO to measure solar radiation. Below is an example code snippet:
// Example code for interfacing the RS-TBQ Pyranometer with Arduino UNO
// This code reads the analog voltage from the pyranometer and calculates
// the solar radiation in W/m² based on the sensor's sensitivity.
const int pyranometerPin = A0; // Analog pin connected to the pyranometer
const float sensitivity = 10.0; // Sensitivity in µV/W/m² (example value, check datasheet)
void setup() {
Serial.begin(9600); // Initialize serial communication
pinMode(pyranometerPin, INPUT); // Set the analog pin as input
}
void loop() {
int rawValue = analogRead(pyranometerPin); // Read the analog value (0-1023)
float voltage = (rawValue / 1023.0) * 5.0; // Convert to voltage (assuming 5V reference)
float solarRadiation = (voltage * 1000) / sensitivity;
// Convert voltage (mV) to solar radiation (W/m²)
// Print the results to the Serial Monitor
Serial.print("Voltage (mV): ");
Serial.print(voltage * 1000); // Convert to mV for display
Serial.print(" | Solar Radiation (W/m²): ");
Serial.println(solarRadiation);
delay(1000); // Wait for 1 second before the next reading
}
Note: Replace the sensitivity value in the code with the actual sensitivity value provided in the datasheet of your RS-TBQ pyranometer.
Troubleshooting and FAQs
Common Issues and Solutions
No Output Signal:
Cause: Loose or incorrect wiring.
Solution: Verify the connections. Ensure the red wire is connected to the analog input and the black wire to ground.
Inaccurate Readings:
Cause: Dirty sensor dome or incorrect sensitivity value.
Solution: Clean the sensor dome and verify the sensitivity value used in calculations.
Fluctuating Readings:
Cause: Electrical noise or unstable power supply.
Solution: Use shielded cables and ensure a stable ground connection.
Output Voltage Exceeds Expected Range:
Cause: Overexposure to intense light or incorrect calibration.
Solution: Verify the calibration and ensure the pyranometer is not exposed to concentrated light sources.
FAQs
Q1: Can the RS-TBQ pyranometer be used indoors?
A1: The pyranometer is designed for outdoor use to measure solar radiation. However, it can be used indoors to measure artificial light intensity, though the readings may not be as accurate.
Q2: How often should the pyranometer be recalibrated?
A2: Recalibration is recommended every 1-2 years, depending on usage and environmental conditions.
Q3: Can the pyranometer be used in extreme weather conditions?
A3: Yes, the RS-TBQ operates in temperatures from -40°C to +80°C and is rated IP65 for water and dust resistance.
Q4: What is the lifespan of the RS-TBQ pyranometer?
A4: With proper maintenance, the pyranometer can last for many years. Regular cleaning and recalibration will ensure long-term accuracy.
