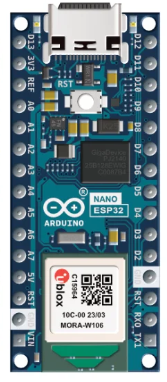

Image of Arduino Nano ESP32
Cirkit Designer LogoDesign with Arduino Nano ESP32 in Cirkit Designer

Introduction

The Arduino Nano ESP32 is a compact microcontroller board that combines the familiar form factor of the Arduino Nano with the powerful ESP32 chip. This integration provides robust Wi-Fi and Bluetooth connectivity, making it an excellent choice for Internet of Things (IoT) projects, wireless communication, and smart devices. Its small size and versatile features make it suitable for both beginners and advanced users.

Explore Projects Built with Arduino Nano ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Bioamplifier-Integrated ESP32 & Arduino UNO Wi-Fi Controlled Biometric Data Acquisition System
Image of epsilon: A project utilizing Arduino Nano ESP32 in a practical application
This circuit features an Arduino Nano ESP32 connected to a BioAmplifier (bioampexgpill) for biometric signal acquisition, with the amplifier's output connected to the Arduino's analog input (A0). The ESP32 is powered by a 3.7V LiPo battery, and the circuit also includes an Arduino UNO R4 WiFi connected to a servo motor and an LED, with the servo controlled via digital pin D6 and the LED connected to digital pin D12. The UNO is powered by a 9V battery, and the servo's power is supplied from the UNO's 5V output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano ESP32 Battery-Powered Robotic Arm with Servo Motors and Distance Sensor
Image of quadruped spider: A project utilizing Arduino Nano ESP32 in a practical application
This circuit features an Arduino Nano ESP32 controlling multiple servos and a VL53L0X distance sensor. Power is supplied by two 18650 Li-ion batteries through a buck converter, with a rocker switch to control the power. The servos are connected to various digital pins on the Arduino, while the distance sensor communicates via I2C.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with GPS and GSM Connectivity
Image of IOT BASED SENSORS: A project utilizing Arduino Nano ESP32 in a practical application
This circuit features an ESP32 microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes an IR sensor for detecting infrared signals, a GPS NEO 6M module for location tracking, a PH Meter and a Turbidity Module for water quality measurement, and a SIM900A module for cellular communication. The ESP32 is powered by an 18650 Li-Ion battery, and it communicates with the GPS, SIM900A, and ESP32-CAM modules via serial connections. Ground and power connections are distributed among all components to ensure a common reference point and proper power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
IoT Biometric and RFID Security System with GSM and Wireless Communication
Image of IOT Project: A project utilizing Arduino Nano ESP32 in a practical application
This circuit features an ESP8266 NodeMCU and an Arduino Nano as its main microcontrollers, interfacing with a variety of peripherals. The ESP8266 controls an NRF24L01 wireless module and communicates with a SIM900A GSM module, while the Arduino Nano manages a fingerprint scanner, a buzzer module, an OLED display, an RFID-RC522 module, and another NRF24L01 module. A bi-directional logic level converter is used to interface devices with different voltage levels, ensuring proper communication between 3.3V and 5V components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of epsilon: A project utilizing Arduino Nano ESP32 in a practical application
Bioamplifier-Integrated ESP32 & Arduino UNO Wi-Fi Controlled Biometric Data Acquisition System
This circuit features an Arduino Nano ESP32 connected to a BioAmplifier (bioampexgpill) for biometric signal acquisition, with the amplifier's output connected to the Arduino's analog input (A0). The ESP32 is powered by a 3.7V LiPo battery, and the circuit also includes an Arduino UNO R4 WiFi connected to a servo motor and an LED, with the servo controlled via digital pin D6 and the LED connected to digital pin D12. The UNO is powered by a 9V battery, and the servo's power is supplied from the UNO's 5V output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of quadruped spider: A project utilizing Arduino Nano ESP32 in a practical application
Arduino Nano ESP32 Battery-Powered Robotic Arm with Servo Motors and Distance Sensor
This circuit features an Arduino Nano ESP32 controlling multiple servos and a VL53L0X distance sensor. Power is supplied by two 18650 Li-ion batteries through a buck converter, with a rocker switch to control the power. The servos are connected to various digital pins on the Arduino, while the distance sensor communicates via I2C.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT BASED SENSORS: A project utilizing Arduino Nano ESP32 in a practical application
ESP32-Based Environmental Monitoring System with GPS and GSM Connectivity
This circuit features an ESP32 microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes an IR sensor for detecting infrared signals, a GPS NEO 6M module for location tracking, a PH Meter and a Turbidity Module for water quality measurement, and a SIM900A module for cellular communication. The ESP32 is powered by an 18650 Li-Ion battery, and it communicates with the GPS, SIM900A, and ESP32-CAM modules via serial connections. Ground and power connections are distributed among all components to ensure a common reference point and proper power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT Project: A project utilizing Arduino Nano ESP32 in a practical application
IoT Biometric and RFID Security System with GSM and Wireless Communication
This circuit features an ESP8266 NodeMCU and an Arduino Nano as its main microcontrollers, interfacing with a variety of peripherals. The ESP8266 controls an NRF24L01 wireless module and communicates with a SIM900A GSM module, while the Arduino Nano manages a fingerprint scanner, a buzzer module, an OLED display, an RFID-RC522 module, and another NRF24L01 module. A bi-directional logic level converter is used to interface devices with different voltage levels, ensuring proper communication between 3.3V and 5V components.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Remote data logging and monitoring
  • Bluetooth-enabled devices
  • Robotics and automation systems
  • Prototyping for connected devices

Technical Specifications

Below are the key technical details of the Arduino Nano ESP32:

Specification Details
Microcontroller ESP32-S3
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB or VIN pin)
Digital I/O Pins 14 (including PWM-capable pins)
Analog Input Pins 8
Flash Memory 8MB
SRAM 512KB
Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 5.0
USB Interface USB-C
Clock Speed 240 MHz
Dimensions 45mm x 18mm

Pin Configuration and Descriptions

The Arduino Nano ESP32 has a pinout similar to the traditional Arduino Nano but with additional features. Below is the pin configuration:

Pin Name Description
1 VIN Input voltage (5V) for powering the board.
2 GND Ground pin.
3 3V3 3.3V output pin.
4-11 D0-D7 Digital I/O pins (can be used for PWM, GPIO, or other functions).
12-13 RX, TX UART communication pins (Serial).
14-21 A0-A7 Analog input pins (can also be used as digital pins).
22 RST Reset pin to restart the board.
23 SDA I2C data line.
24 SCL I2C clock line.
25 EN Enable pin to control power to the ESP32 chip.
26 USB-C USB interface for programming and power.

Usage Instructions

How to Use the Arduino Nano ESP32 in a Circuit

  1. Powering the Board:

    • Use the USB-C port to power the board and upload code.
    • Alternatively, supply 5V to the VIN pin for external power.
  2. Connecting Peripherals:

    • Use the digital pins (D0-D13) for GPIO, PWM, or communication protocols like UART.
    • Use the analog pins (A0-A7) for reading sensor data.
  3. Programming the Board:

    • Install the Arduino IDE and add the ESP32 board package via the Board Manager.
    • Select "Arduino Nano ESP32" as the board in the Tools menu.
    • Connect the board via USB-C and upload your code.
  4. Wi-Fi and Bluetooth Setup:

    • Use the ESP32 libraries (WiFi.h and BluetoothSerial.h) to enable wireless communication.

Important Considerations and Best Practices

  • Ensure the board operates at 3.3V logic levels to avoid damaging the ESP32 chip.
  • Use level shifters if interfacing with 5V devices.
  • Avoid drawing excessive current from the 3.3V pin, as it is limited by the onboard regulator.
  • Use proper decoupling capacitors when connecting external components to reduce noise.

Example Code: Connecting to Wi-Fi

Below is an example sketch to connect the Arduino Nano ESP32 to a Wi-Fi network:

#include <WiFi.h> // Include the Wi-Fi library

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  WiFi.begin(ssid, password); // Start connecting to Wi-Fi

  Serial.print("Connecting to Wi-Fi");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }
  Serial.println("\nConnected to Wi-Fi!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Board Not Detected by the Arduino IDE:

    • Ensure the correct USB driver is installed for the ESP32.
    • Check that the USB cable is functional and supports data transfer.
  2. Wi-Fi Connection Fails:

    • Double-check the SSID and password in your code.
    • Ensure the Wi-Fi network is within range and not using unsupported security protocols.
  3. Program Upload Fails:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press and hold the BOOT button on the board while uploading the code.
  4. Bluetooth Not Working:

    • Ensure the Bluetooth device is discoverable and within range.
    • Use the BluetoothSerial library to initialize and manage Bluetooth communication.

FAQs

Q: Can I use 5V sensors with the Arduino Nano ESP32?
A: The board operates at 3.3V logic levels. Use a level shifter to safely interface with 5V sensors.

Q: How do I reset the board?
A: Press the RST button or toggle the EN pin to reset the board.

Q: Can I use the Arduino Nano ESP32 for battery-powered projects?
A: Yes, you can power the board using a LiPo battery connected to the VIN pin, but ensure proper voltage regulation.

Q: Is the Arduino Nano ESP32 compatible with Arduino Nano shields?
A: While the pinout is similar, some shields may not be compatible due to differences in voltage levels and communication protocols.

This concludes the documentation for the Arduino Nano ESP32.
