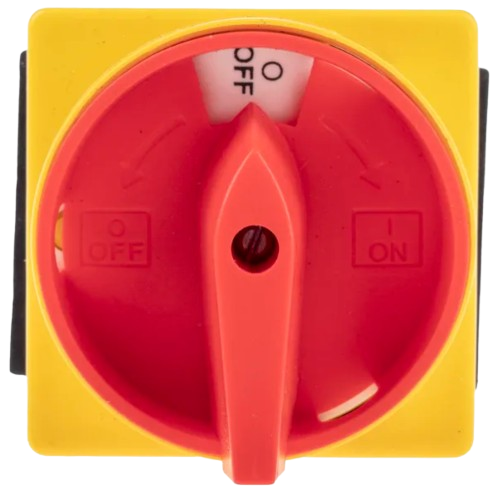

Image of ISOLATOR SWITCH
Cirkit Designer LogoDesign with ISOLATOR SWITCH in Cirkit Designer

Introduction

An isolator switch, manufactured by ISOLATOR SWITCH (Part ID: ISOLATOR SWITCH), is a mechanical switch designed to ensure that an electrical circuit is completely de-energized for maintenance or safety purposes. It provides a visible break in the circuit, making it an essential component in high-voltage applications. Isolator switches are commonly used in industrial, commercial, and residential electrical systems to enhance safety and prevent accidental electrical contact during servicing.

Explore Projects Built with ISOLATOR SWITCH

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Industrial Power Distribution and Safety Control System
Image of Control Diagram: A project utilizing ISOLATOR SWITCH in a practical application
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
SPST Rocker Switch Array Circuit
Image of SWITCH CONNECTION: A project utilizing ISOLATOR SWITCH in a practical application
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Toggle Switch Controlled Lamp Circuit with Banana Sockets
Image of STAIRCASE: A project utilizing ISOLATOR SWITCH in a practical application
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of POWER SUPPLY: A project utilizing ISOLATOR SWITCH in a practical application
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ISOLATOR SWITCH

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Control Diagram: A project utilizing ISOLATOR SWITCH in a practical application
Industrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SWITCH CONNECTION: A project utilizing ISOLATOR SWITCH in a practical application
SPST Rocker Switch Array Circuit
This circuit features a parallel arrangement of SPST rocker switches, each capable of independently controlling the connection of a separate circuit branch to a common line. It is likely designed for simple on/off control of multiple individual loads or signals, with each switch operating a distinct load or signal path.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of STAIRCASE: A project utilizing ISOLATOR SWITCH in a practical application
Toggle Switch Controlled Lamp Circuit with Banana Sockets
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY: A project utilizing ISOLATOR SWITCH in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power management system that integrates a solar panel, battery, and inverter to provide a stable 12V DC and 220V AC output. It includes automatic transfer switches (ATS) and circuit breakers for safety and reliability, as well as a low voltage disconnect to protect the battery from deep discharge.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Electrical maintenance and servicing in industrial plants
  • High-voltage power distribution systems
  • Solar power installations
  • Circuit isolation in residential and commercial buildings
  • Emergency power disconnection for safety purposes

Technical Specifications

The ISOLATOR SWITCH is designed to handle high-voltage and high-current applications. Below are its key technical specifications:

Parameter Value
Rated Voltage Up to 1000V AC/DC
Rated Current 16A to 630A (varies by model)
Operating Temperature -25°C to +70°C
Insulation Resistance ≥ 10 MΩ
Dielectric Strength 2.5 kV for 1 minute
Mechanical Endurance ≥ 10,000 operations
Protection Rating IP20 to IP65 (depending on model)
Mounting Type Panel-mounted or DIN rail

Pin Configuration and Descriptions

The isolator switch does not have traditional pins like electronic components but instead features terminals for electrical connections. Below is a description of the terminal configuration:

Terminal Description
Line Input Connects to the incoming power supply (live and neutral wires for AC systems).
Load Output Connects to the load or downstream circuit to be isolated.
Ground Provides a connection to the system ground for safety.

Usage Instructions

How to Use the ISOLATOR SWITCH in a Circuit

  1. Select the Appropriate Model: Choose an isolator switch rated for the voltage and current of your application.
  2. Mounting: Install the switch on a panel or DIN rail as per the mounting type specified in the product datasheet.
  3. Wiring:
    • Connect the incoming power supply to the Line Input terminals.
    • Connect the downstream circuit or load to the Load Output terminals.
    • Ensure the ground terminal is properly connected to the system ground.
  4. Operation:
    • Turn the switch to the "ON" position to allow current flow.
    • Turn the switch to the "OFF" position to isolate the circuit completely.

Important Considerations and Best Practices

  • Always ensure the isolator switch is in the "OFF" position before performing any maintenance on the circuit.
  • Verify the voltage and current ratings of the switch match the requirements of your application.
  • Use proper tools and follow safety guidelines when installing or operating the switch.
  • For outdoor installations, select a model with a high IP rating (e.g., IP65) to protect against dust and moisture.

Arduino UNO Integration

While isolator switches are not typically used directly with microcontrollers like the Arduino UNO, they can be part of a larger system where the Arduino controls relays or other devices that interact with the isolator switch. Below is an example of how an Arduino can control a relay to manage a circuit that includes an isolator switch:

// Example: Controlling a relay with Arduino to manage a circuit with an isolator switch
const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  // Turn the relay on (simulate closing the circuit)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay on for 5 seconds

  // Turn the relay off (simulate opening the circuit)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay off for 5 seconds
}

Note: The isolator switch in this setup would be manually operated and used as a safety mechanism to completely disconnect the circuit when needed.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Solution
The isolator switch does not disconnect power Ensure the switch is in the "OFF" position and verify proper wiring.
Overheating of the switch Check if the current exceeds the rated capacity of the switch.
Difficulty in operating the switch Inspect for mechanical obstructions or wear and tear in the switch mechanism.
Moisture or dust ingress Use a model with a higher IP rating for outdoor or harsh environments.

FAQs

  1. Can the isolator switch be used for DC circuits?

    • Yes, the isolator switch can be used for both AC and DC circuits, provided the voltage and current ratings are within the specified limits.
  2. Is the isolator switch suitable for emergency power disconnection?

    • Yes, isolator switches are commonly used for emergency power disconnection due to their ability to provide a visible break in the circuit.
  3. What is the difference between an isolator switch and a circuit breaker?

    • An isolator switch is a manual device used to isolate a circuit, while a circuit breaker is an automatic device designed to protect a circuit from overcurrent or short circuits.
  4. Can the isolator switch be operated remotely?

    • Standard isolator switches are manually operated. However, motorized versions are available for remote operation.

By following this documentation, users can safely and effectively integrate the ISOLATOR SWITCH into their electrical systems.
