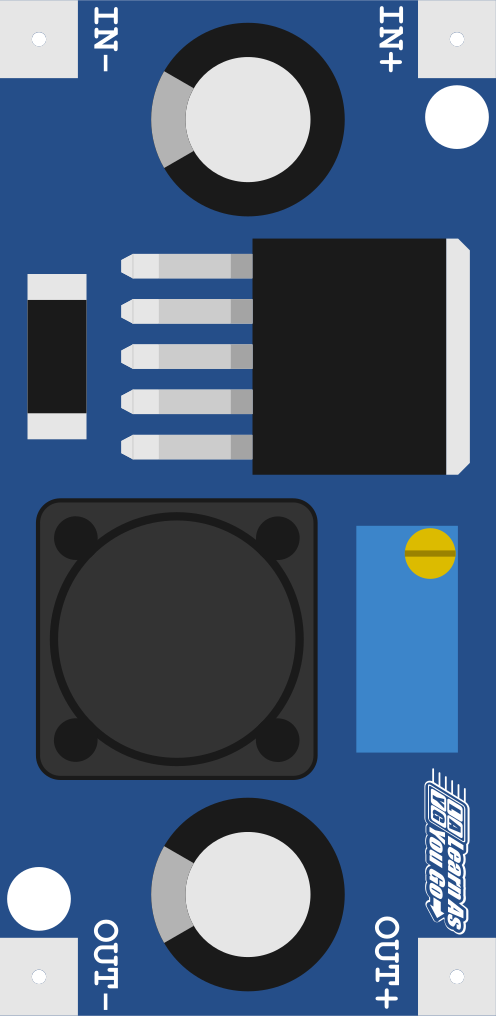

Image of Buck Converter
Cirkit Designer LogoDesign with Buck Converter in Cirkit Designer

Introduction

A buck converter is a DC-DC power converter designed to step down voltage while stepping up current. It achieves this by using a combination of a switching element (such as a transistor), a diode, an inductor, and a capacitor. This efficient voltage conversion makes buck converters ideal for applications where power efficiency and compact design are critical.

Explore Projects Built with Buck Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Buck Converter in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing Buck Converter in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
Image of Pencuci Kipas: A project utilizing Buck Converter in a practical application
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing Buck Converter in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buck Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing Buck Converter in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing Buck Converter in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pencuci Kipas: A project utilizing Buck Converter in a practical application
Dual Motor Control Circuit with Directional Switching and Voltage Regulation
This circuit features a 12V battery connected through a rocker switch to two buck converters, one of which steps down the voltage to power two DC mini metal gear motors, and the other is connected to a directional switch that controls a third DC mini metal gear motor. The XL4015 5A DC Buck Step-down converter's output is connected to two motors, allowing them to run at a reduced voltage, while the other buck converter's output is routed through a directional switch to control the direction of the third motor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing Buck Converter in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering low-voltage devices (e.g., microcontrollers, sensors) from higher-voltage sources
  • Battery-powered systems to regulate voltage levels
  • Voltage regulation in renewable energy systems (e.g., solar panels)
  • Power supplies for portable electronics and embedded systems

Technical Specifications

Key Technical Details

Parameter Value/Range
Input Voltage Range Typically 4.5V to 60V (varies by model)
Output Voltage Range Adjustable or fixed (e.g., 1.2V to 24V)
Output Current Up to 10A or more (depending on model)
Efficiency Up to 95% (depending on load and design)
Switching Frequency 100 kHz to 1 MHz (varies by model)
Operating Temperature -40°C to +85°C (typical)

Pin Configuration and Descriptions

Below is a typical pinout for a buck converter module (e.g., LM2596-based module):

Pin Name Description
VIN Input voltage pin. Connect the higher voltage source here.
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides the stepped-down voltage.
ADJ (if present) Adjustment pin for setting the output voltage (on adjustable models).

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage (VIN):

    • Ensure the input voltage is within the specified range of the buck converter module.
    • Connect the positive terminal of the power source to the VIN pin and the negative terminal to GND.
  2. Set the Output Voltage (if adjustable):

    • For adjustable buck converters, use the onboard potentiometer to set the desired output voltage.
    • Measure the output voltage using a multimeter while adjusting the potentiometer.
  3. Connect the Load:

    • Connect the positive terminal of the load to the VOUT pin and the negative terminal to GND.
    • Ensure the load does not exceed the maximum current rating of the buck converter.
  4. Power On:

    • Turn on the input power source and verify the output voltage using a multimeter.

Important Considerations and Best Practices

  • Input Voltage: Always ensure the input voltage is higher than the desired output voltage but within the module's specified range.
  • Heat Dissipation: For high-current applications, ensure proper heat dissipation using heatsinks or active cooling.
  • Ripple and Noise: Use additional capacitors at the input and output to reduce voltage ripple and noise.
  • Load Requirements: Verify that the load does not exceed the maximum current rating of the buck converter.
  • Polarity: Double-check the polarity of connections to avoid damaging the module.

Example: Using a Buck Converter with Arduino UNO

Below is an example of using a buck converter to power an Arduino UNO from a 12V power source:

Circuit Connections

  1. Connect the 12V power source to the VIN and GND pins of the buck converter.
  2. Adjust the buck converter output to 5V using the onboard potentiometer.
  3. Connect the VOUT pin of the buck converter to the 5V pin of the Arduino UNO.
  4. Connect the GND pin of the buck converter to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of Arduino UNO
// Ensure the Arduino is powered via the buck converter (5V output).

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect input voltage or loose connections.
    • Solution: Verify the input voltage is within the specified range and check all connections.
  2. Output Voltage Too High or Too Low:

    • Cause: Incorrect adjustment of the potentiometer (for adjustable models).
    • Solution: Re-adjust the potentiometer while monitoring the output voltage with a multimeter.
  3. Overheating:

    • Cause: Excessive current draw or insufficient cooling.
    • Solution: Ensure the load does not exceed the current rating and add a heatsink if necessary.
  4. High Ripple or Noise:

    • Cause: Insufficient filtering or poor-quality capacitors.
    • Solution: Add low-ESR capacitors at the input and output terminals.

FAQs

Q: Can I use a buck converter to step up voltage?
A: No, a buck converter is specifically designed to step down voltage. For stepping up voltage, use a boost converter.

Q: How do I calculate the output current?
A: The output current depends on the input current and the efficiency of the converter. Use the formula:
[ I_{out} = \frac{V_{in} \times I_{in} \times \text{Efficiency}}{V_{out}} ]

Q: Can I use a buck converter with an AC input?
A: No, buck converters require a DC input. Use a rectifier and filter circuit to convert AC to DC before using the buck converter.

Q: What happens if I reverse the input polarity?
A: Reversing the input polarity can damage the buck converter. Use a diode in series with the input to protect against reverse polarity.
