How to Use sen0240: Examples, Pinouts, and Specs

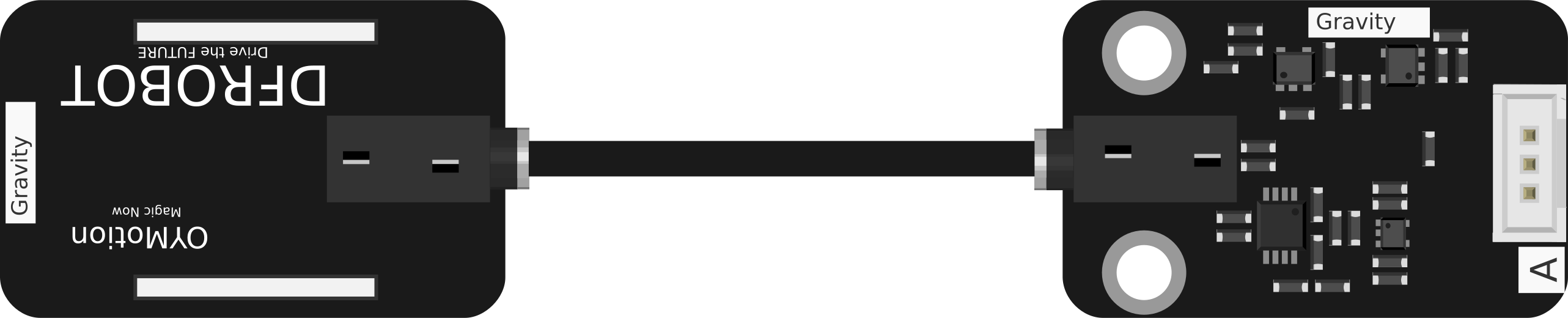

The SEN0240 is a capacitive soil moisture sensor designed to measure the volumetric water content in soil. Unlike resistive soil moisture sensors, the SEN0240 is corrosion-resistant, ensuring long-term durability and reliability. It outputs an analog voltage signal that corresponds to the soil's moisture level, making it easy to interface with microcontrollers and other analog input devices.

• Automated irrigation systems
• Agricultural monitoring
• Greenhouse environmental control
• Gardening and landscaping projects
• Soil research and analysis

The SEN0240 is designed for ease of use and compatibility with a wide range of microcontrollers. Below are its key technical details:

The SEN0240 has a simple 3-pin interface:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Read the Analog Output: Connect the AOUT pin to an analog input pin on your microcontroller (e.g., Arduino).
3. Calibrate the Sensor: The sensor's output voltage varies with soil moisture. You may need to calibrate it for your specific soil type by measuring the output voltage at known moisture levels (e.g., dry soil, saturated soil).
4. Interpret the Output: The analog output voltage typically ranges from 0V (dry soil) to 3V (wet soil). Use this range to determine the soil moisture percentage.

• Avoid Direct Contact with Water: The SEN0240 is water-resistant but not waterproof. Ensure the sensor is not submerged in water.
• Placement in Soil: Insert the sensor into the soil vertically for accurate readings. Avoid placing it near rocks or other obstructions.
• Power Supply: Use a stable power source to avoid fluctuations in the analog output.
• Signal Noise: If the output signal is noisy, consider adding a capacitor (e.g., 0.1µF) between the AOUT and GND pins to stabilize the signal.

Below is an example of how to use the SEN0240 with an Arduino UNO to read soil moisture levels:

// Define the analog pin connected to the sensor's AOUT pin
const int sensorPin = A0;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(sensorPin, INPUT); // Set the sensor pin as an input
}

void loop() {
  int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
  float voltage = sensorValue * (5.0 / 1023.0); // Convert the value to voltage

  // Map the voltage to a percentage (0% = dry, 100% = wet)
  int moisturePercent = map(sensorValue, 0, 1023, 0, 100);

  // Print the results to the Serial Monitor
  Serial.print("Soil Moisture: ");
  Serial.print(moisturePercent);
  Serial.println("%");

  delay(1000); // Wait for 1 second before taking the next reading
}

1. No Output or Incorrect Readings

   • Cause: Loose or incorrect wiring.
   • Solution: Double-check all connections, ensuring VCC, GND, and AOUT are properly connected.

2. Fluctuating or Noisy Output

   • Cause: Electrical noise or unstable power supply.
   • Solution: Add a decoupling capacitor (e.g., 0.1µF) between the AOUT and GND pins to stabilize the signal.

3. Sensor Not Responding

   • Cause: Sensor damaged or incorrect operating voltage.
   • Solution: Verify the power supply voltage is within the 3.3V to 5.5V range. Replace the sensor if damaged.

4. Output Voltage Does Not Match Soil Moisture

   • Cause: Calibration not performed for the specific soil type.
   • Solution: Calibrate the sensor by measuring the output voltage at known moisture levels and adjust your code accordingly.

Q: Can the SEN0240 be used with a 3.3V microcontroller like the ESP32?
A: Yes, the SEN0240 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V microcontrollers.

Q: How deep should the sensor be inserted into the soil?
A: Insert the sensor fully into the soil, ensuring the capacitive plates are covered for accurate readings.

Q: Can the SEN0240 measure soil moisture in sandy or clay soils?
A: Yes, but the sensor may require calibration for different soil types to ensure accurate measurements.

Q: Is the SEN0240 suitable for outdoor use?
A: The SEN0240 is water-resistant but not waterproof. Protect the sensor and its connections from prolonged exposure to water and harsh weather conditions.
