How to Use step down buck converter lm2596: Examples, Pinouts, and Specs

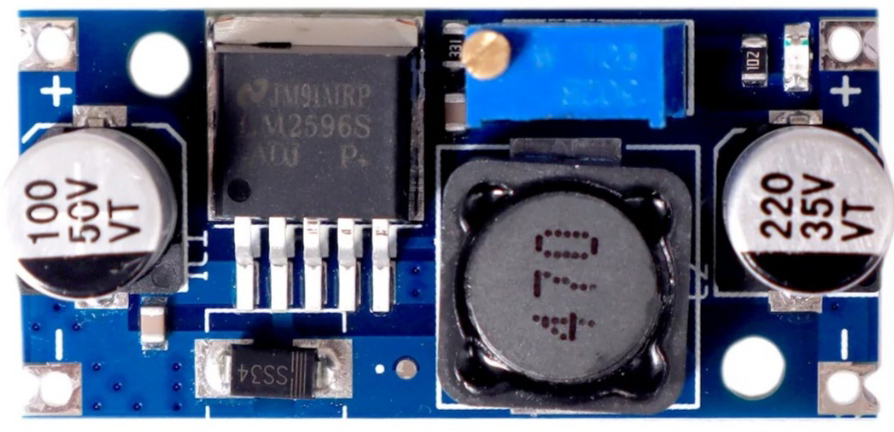

The LM2596, manufactured by STMicroelectronics (Part ID: UNO), is a step-down (buck) voltage regulator designed for efficient voltage conversion. It takes a higher input voltage and steps it down to a lower, regulated output voltage. This component is widely used in power supply applications due to its high efficiency, ability to handle up to 3A of output current, and built-in protection features such as thermal shutdown and current limiting.

• DC-DC power supply modules
• Battery-powered devices
• Voltage regulation for microcontrollers and sensors
• LED drivers
• Industrial and automotive electronics

The LM2596 is typically available in a 5-pin TO-220 or TO-263 package. Below is the pinout description:

1. Input Voltage: Connect the input voltage (4.5V to 40V) to the VIN pin. Ensure the input voltage is higher than the desired output voltage by at least 3V for proper regulation.
2. Output Voltage Adjustment: Use a resistor divider network connected to the Feedback pin to set the desired output voltage. The output voltage can be calculated using the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ] where ( V_{REF} ) is 1.23V, and ( R1 ) and ( R2 ) are the resistors in the divider.
3. Output Capacitor: Connect a low ESR capacitor (e.g., 100µF) to the output pin to stabilize the voltage.
4. Input Capacitor: Place a capacitor (e.g., 100µF) close to the VIN pin to filter input noise.
5. Inductor Selection: Choose an inductor with a current rating higher than the maximum load current and an appropriate value to maintain stable operation.
6. Enable Pin: Connect the ON/OFF pin to ground to enable the regulator. If unused, it can be left floating.

• Heat Dissipation: The LM2596 can generate heat during operation. Use a heatsink or ensure proper ventilation to prevent overheating.
• PCB Layout: Minimize the trace lengths for the input and output connections to reduce noise and improve efficiency.
• Protection: Add a diode across the input and output to protect against reverse polarity.

The LM2596 can be used to power an Arduino UNO by stepping down a 12V input to 5V. Below is an example circuit and Arduino code:

• Connect a 12V DC input to the VIN pin of the LM2596.
• Adjust the output voltage to 5V using the feedback resistor divider.
• Connect the 5V output to the Arduino UNO's 5V pin.
• Connect the ground of the LM2596 to the Arduino's GND pin.

// Example code to blink an LED using Arduino UNO powered by LM2596
// Ensure the LM2596 output is set to 5V before connecting to the Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. No Output Voltage:

   • Check the input voltage. Ensure it is within the specified range (4.5V to 40V).
   • Verify the ON/OFF pin is connected to ground to enable the regulator.
   • Inspect the feedback resistor network for proper connections.

2. Overheating:

   • Ensure the load current does not exceed 3A.
   • Use a heatsink or improve ventilation around the LM2596.

3. Output Voltage Instability:

   • Check the input and output capacitors. Use low ESR capacitors as recommended.
   • Verify the inductor value and current rating.

4. Incorrect Output Voltage:

   • Recalculate the resistor divider values for the desired output voltage.
   • Measure the feedback pin voltage to ensure it is approximately 1.23V.

Q: Can the LM2596 be used for AC input?
A: No, the LM2596 is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before connecting to the LM2596.

Q: What is the maximum efficiency of the LM2596?
A: The LM2596 can achieve up to 92% efficiency under optimal conditions.

Q: Can I use the LM2596 without a heatsink?
A: It depends on the load current and input voltage. For high currents or large voltage drops, a heatsink is recommended to prevent overheating.

Q: How do I calculate the inductor value?
A: The inductor value depends on the input voltage, output voltage, load current, and switching frequency. Refer to the LM2596 datasheet for detailed calculations.

By following this documentation, you can effectively use the LM2596 step-down buck converter in your projects.
