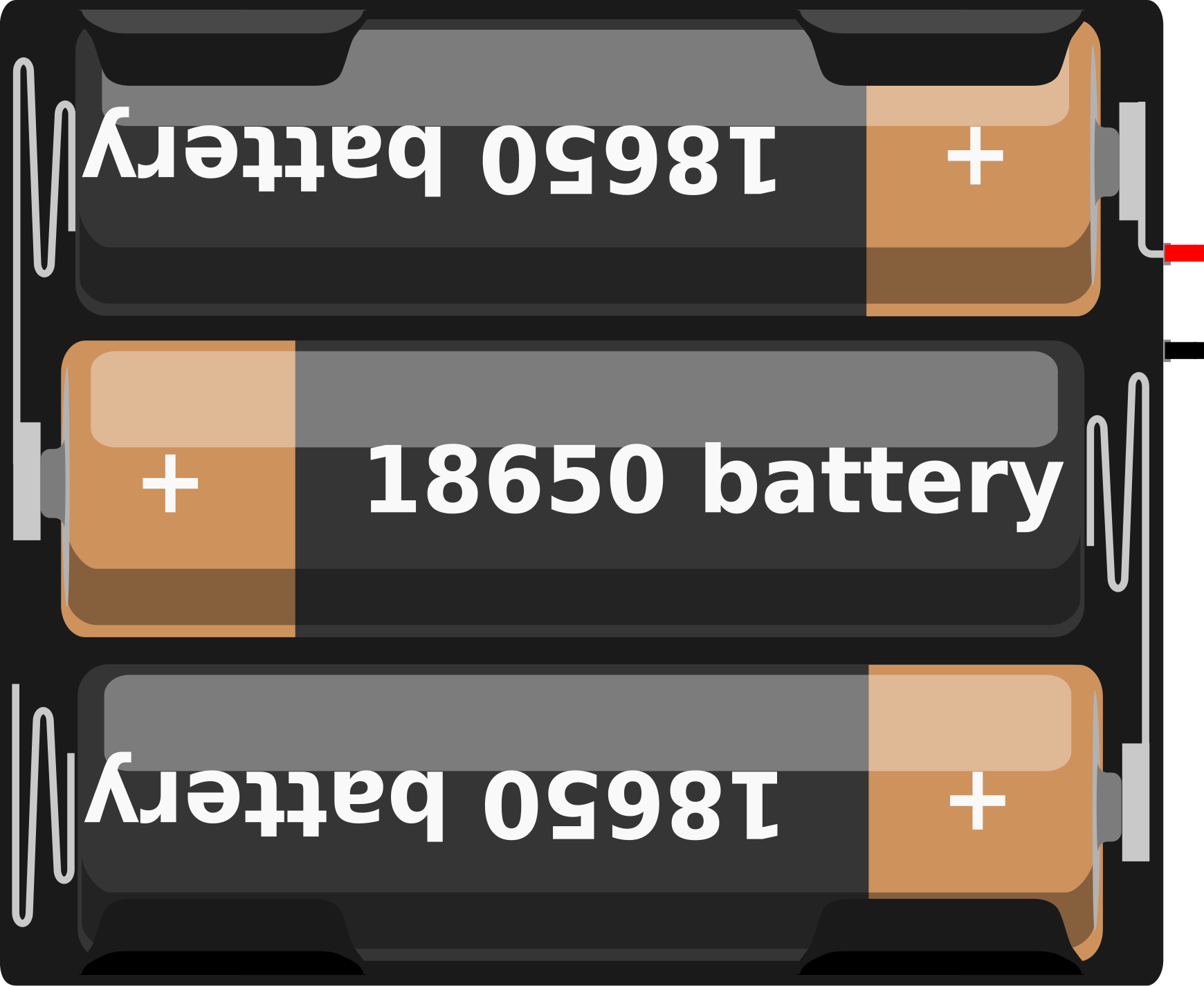

Image of batteryDesign with battery in Cirkit Designer

Introduction

A battery is a device that stores electrical energy in chemical form and converts it to electrical energy when needed, providing power to electronic circuits. Batteries are essential components in a wide range of applications, from powering small electronic devices like remote controls and sensors to larger systems such as electric vehicles and backup power supplies. They are available in various types, including primary (non-rechargeable) and secondary (rechargeable) batteries, each suited for specific use cases.

Explore Projects Built with battery

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar-Powered Battery Charging Circuit with LED Indicator: A project utilizing battery in a practical application
Solar-Powered Battery Charging Circuit with LED Indicator

This circuit appears to be a solar-powered charging and power supply system with a battery backup. A TP4056 module is used for charging the 3.7V battery from the solar panel via a bridge rectifier, ensuring proper battery management. The system can power an LED and a motor, with a rocker switch to control the LED, and diodes are used to provide correct polarity and prevent backflow of current.

Open Project in Cirkit Designer

Common Applications

Technical Specifications

The specifications of a battery depend on its type, size, and chemistry. Below are general technical details for common battery types:

General Specifications

Parameter Description
Voltage Range Typically 1.2V to 12V (varies by type and size)
Capacity Measured in milliampere-hours (mAh) or ampere-hours (Ah)
Chemistry Common types: Alkaline, Lithium-ion, Nickel-Metal Hydride (NiMH), Lead-Acid
Rechargeability Primary (non-rechargeable) or Secondary (rechargeable)
Operating Temperature Typically -20°C to 60°C (varies by chemistry)
Shelf Life Varies by type (e.g., 5-10 years for alkaline, 2-3 years for lithium-ion)

Example: AA Alkaline Battery Pin Configuration

Pin Name Description
Positive The terminal marked with "+"; connects to the positive side of the circuit.
Negative The terminal marked with "-"; connects to the negative side of the circuit.

Example: Lithium-ion Battery Pin Configuration (18650 Cell)

Pin Name Description
Positive The terminal marked with "+"; connects to the positive side of the circuit.
Negative The terminal marked with "-"; connects to the negative side of the circuit.
Protection Circuit (optional) Some lithium-ion batteries include a built-in protection circuit.

Usage Instructions

How to Use a Battery in a Circuit

  1. Determine Voltage and Capacity Requirements: Ensure the battery's voltage and capacity match the requirements of your circuit.
  2. Connect Terminals Correctly: Always connect the positive terminal of the battery to the positive side of the circuit and the negative terminal to the ground or negative side.
  3. Use a Battery Holder: For safety and convenience, use a battery holder or clip to secure the battery in place.
  4. Include Protection Components: For rechargeable batteries, include a protection circuit to prevent overcharging, over-discharging, and short circuits.
  5. Monitor Battery Life: Use a voltage monitoring circuit or microcontroller to track the battery's charge level.

Important Considerations

Example: Connecting a Battery to an Arduino UNO

Below is an example of powering an Arduino UNO using a 9V battery:

Circuit Diagram

Sample Code

// Example code to blink an LED using a battery-powered Arduino UNO

const int ledPin = 13; // Pin connected to the built-in LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. Battery Drains Quickly

    • Cause: High current draw or a faulty circuit.
    • Solution: Check the circuit for excessive current consumption. Use a higher-capacity battery if needed.

  2. Device Does Not Power On

    • Cause: Incorrect polarity or insufficient voltage.
    • Solution: Verify the battery's polarity and ensure its voltage matches the device's requirements.

  3. Battery Overheats

    • Cause: Short circuit or overcurrent.
    • Solution: Disconnect the battery immediately. Inspect the circuit for shorts or excessive load.

  4. Rechargeable Battery Does Not Charge

    • Cause: Faulty charger or protection circuit.
    • Solution: Check the charger and ensure it is compatible with the battery type.

FAQs
