How to Use Arduino Nano: Examples, Pinouts, and Specs

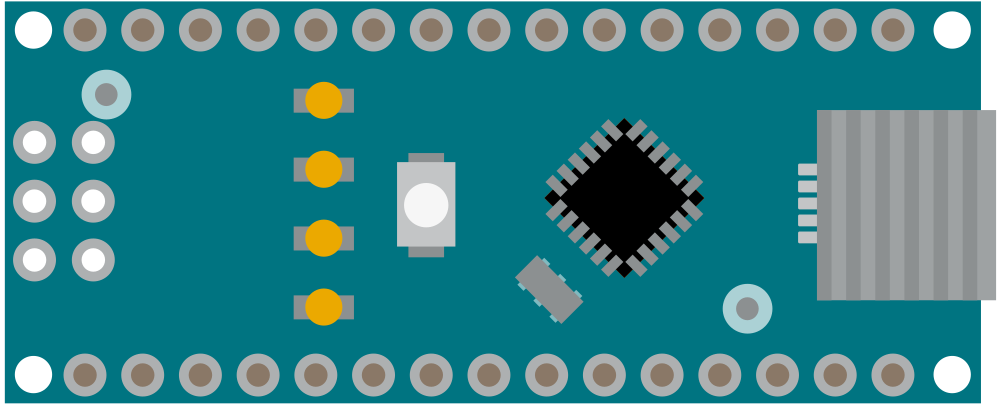

Image of Arduino Nano
Cirkit Designer LogoDesign with Arduino Nano in Cirkit Designer

Introduction

The Arduino Nano (Manufacturer Part ID: A000005) is a compact microcontroller board developed by Arduino. It is based on the ATmega328P microcontroller and is designed for easy integration into a wide range of electronic projects. The Nano is particularly well-suited for applications where space is limited, offering a small form factor without compromising functionality. It features digital and analog input/output pins, USB connectivity for programming, and compatibility with the Arduino IDE.

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino Nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of OLED Display: A project utilizing Arduino Nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Arduino Nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino Nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Sensor data acquisition and processing
  • Wearable electronics
  • Educational projects and DIY electronics

Technical Specifications

The Arduino Nano is a powerful yet compact microcontroller board. Below are its key technical details:

General Specifications

Parameter Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm
Weight 7 g

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is the pin configuration:

Power Pins

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard regulator.
3.3V 3.3V output generated by the onboard regulator.
GND Ground pins (multiple available).
RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Number Description
D0 - D13 General-purpose digital I/O pins.
D3, D5, D6, D9, D10, D11 PWM-capable digital pins.

Analog Pins

Pin Number Description
A0 - A7 Analog input pins (10-bit resolution).

Communication Pins

Pin Name Description
RX (D0) UART Receive pin.
TX (D1) UART Transmit pin.
SDA (A4) I2C Data line.
SCL (A5) I2C Clock line.
SPI (D10-D13) SPI communication pins (SS, MOSI, MISO, SCK).

Usage Instructions

The Arduino Nano is easy to use and program, making it ideal for beginners and advanced users alike. Below are the steps and best practices for using the Nano in your projects.

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the USB Mini-B connector to power the board and upload code.
    • Alternatively, supply 7-12V to the VIN pin or 5V to the 5V pin.
  2. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals (e.g., from sensors).
    • Connect external modules (e.g., I2C or SPI devices) to the appropriate communication pins.
  3. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the Nano to your computer using a USB Mini-B cable.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor in the Arduino IDE.
    • Write your code and upload it to the board.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// The LED will turn ON for 1 second and OFF for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for any I/O pin.
  • Use appropriate resistors when connecting LEDs or other components to prevent damage.
  • Ensure proper grounding when connecting external modules or sensors.
  • Use decoupling capacitors for stable operation in noisy environments.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and properly connected.
    • Install the necessary drivers for the Arduino Nano (if required).
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Check the COM port settings in the IDE.
  3. The board resets unexpectedly:

    • Ensure the power supply is stable and within the recommended range.
    • Avoid drawing excessive current from the I/O pins.
  4. Analog readings are unstable:

    • Use proper grounding and shielding for analog sensors.
    • Add a capacitor between the sensor's output and ground to filter noise.

FAQs

Q: Can I power the Arduino Nano with a battery?
A: Yes, you can power the Nano using a battery by connecting it to the VIN pin (7-12V) or the 5V pin (regulated 5V).

Q: Is the Arduino Nano compatible with shields?
A: The Nano does not directly support standard Arduino shields due to its smaller size, but you can use breakout boards or custom shields designed for the Nano.

Q: How do I reset the Arduino Nano?
A: You can reset the Nano by pressing the onboard reset button or pulling the RESET pin LOW.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules (e.g., Bluetooth, Wi-Fi) to the Nano using its UART, I2C, or SPI interfaces.

This concludes the documentation for the Arduino Nano. For more information, visit the official Arduino website.
