How to Use BUCK: Examples, Pinouts, and Specs

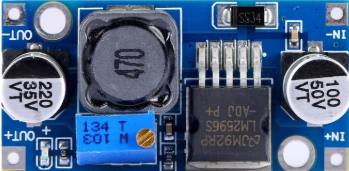

The BUCK DC/DC converter, manufactured by HUAREW, is a highly efficient step-down voltage regulator designed for DC-DC power conversion. It reduces a higher input voltage to a lower output voltage while increasing the current, making it ideal for applications requiring efficient power delivery. This component is widely used in battery-powered devices, embedded systems, and power supply circuits for microcontrollers and other sensitive electronics.

• Powering microcontrollers and sensors in embedded systems
• Voltage regulation in battery-powered devices
• Efficient power delivery in portable electronics
• Step-down voltage conversion for LED drivers
• Powering communication modules and IoT devices

The following table outlines the key technical specifications of the HUAREW BUCK DC/DC converter:

The BUCK DC/DC converter typically has the following pin configuration:

1. Connect the Input Voltage (VIN):
   Attach the input voltage source (e.g., a battery or DC power supply) to the VIN pin. Ensure the input voltage is within the specified range (4.5V to 40V).

2. Set the Output Voltage (VOUT):
   Use a resistor divider network connected to the FB pin to set the desired output voltage. The formula for calculating the output voltage is:
   [ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ]
   Where ( V_{REF} ) is typically 1.25V, and ( R1 ) and ( R2 ) are the resistors in the divider.

3. Connect the Load:
   Attach the load to the VOUT pin. Ensure the load does not exceed the maximum output current (3A).

4. Enable the Converter:
   If the EN pin is available, connect it to a logic HIGH signal to enable the converter. For always-on operation, tie the EN pin to VIN.

5. Add External Components:

   • Place an input capacitor (e.g., 10µF) between VIN and GND to stabilize the input voltage.
   • Place an output capacitor (e.g., 22µF) between VOUT and GND to reduce output voltage ripple.
   • Use an appropriate inductor (e.g., 47µH) to ensure efficient operation.

• Thermal Management: Ensure adequate heat dissipation, especially when operating at high currents. Use a heatsink if necessary.
• Input Voltage Range: Always keep the input voltage within the specified range to avoid damage.
• Output Voltage Adjustment: Use precision resistors for the feedback network to achieve accurate output voltage.
• Decoupling Capacitors: Use low-ESR capacitors for better performance and reduced noise.
• Inductor Selection: Choose an inductor with a current rating higher than the maximum output current to prevent saturation.

The BUCK DC/DC converter can be used to power an Arduino UNO by stepping down a 12V input to 5V. Below is an example circuit and Arduino code:

• Connect a 12V DC power supply to the VIN pin of the BUCK converter.
• Set the output voltage to 5V using the feedback resistor network.
• Connect the VOUT pin of the BUCK converter to the 5V pin of the Arduino UNO.
• Connect the GND pin of the BUCK converter to the GND pin of the Arduino UNO.

// Example code to blink an LED using an Arduino UNO powered by the BUCK DC/DC converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:

   • Cause: The EN pin is not connected or is set to LOW.
     Solution: Connect the EN pin to VIN or a logic HIGH signal.
   • Cause: Input voltage is outside the specified range.
     Solution: Verify the input voltage and ensure it is between 4.5V and 40V.

2. Output Voltage is Incorrect:

   • Cause: Incorrect feedback resistor values.
     Solution: Recalculate and adjust the resistor values using the formula provided.
   • Cause: Insufficient input voltage.
     Solution: Ensure the input voltage is at least 1.5V higher than the desired output voltage.

3. Excessive Heat Generation:

   • Cause: High output current or poor thermal management.
     Solution: Use a heatsink or improve airflow around the component.

4. High Output Ripple:

   • Cause: Inadequate output capacitor or poor capacitor quality.
     Solution: Use low-ESR capacitors with higher capacitance values.

Q: Can the BUCK DC/DC converter be used with a 24V input?
A: Yes, the converter supports input voltages up to 40V, so 24V is within the safe range.

Q: What is the minimum load current required for stable operation?
A: The converter typically requires a minimum load current of 10mA for stable operation.

Q: Can I use the BUCK DC/DC converter to power a Raspberry Pi?
A: Yes, as long as the output voltage is set to 5V and the current requirement (typically 2.5A) is within the converter's maximum output current (3A).
