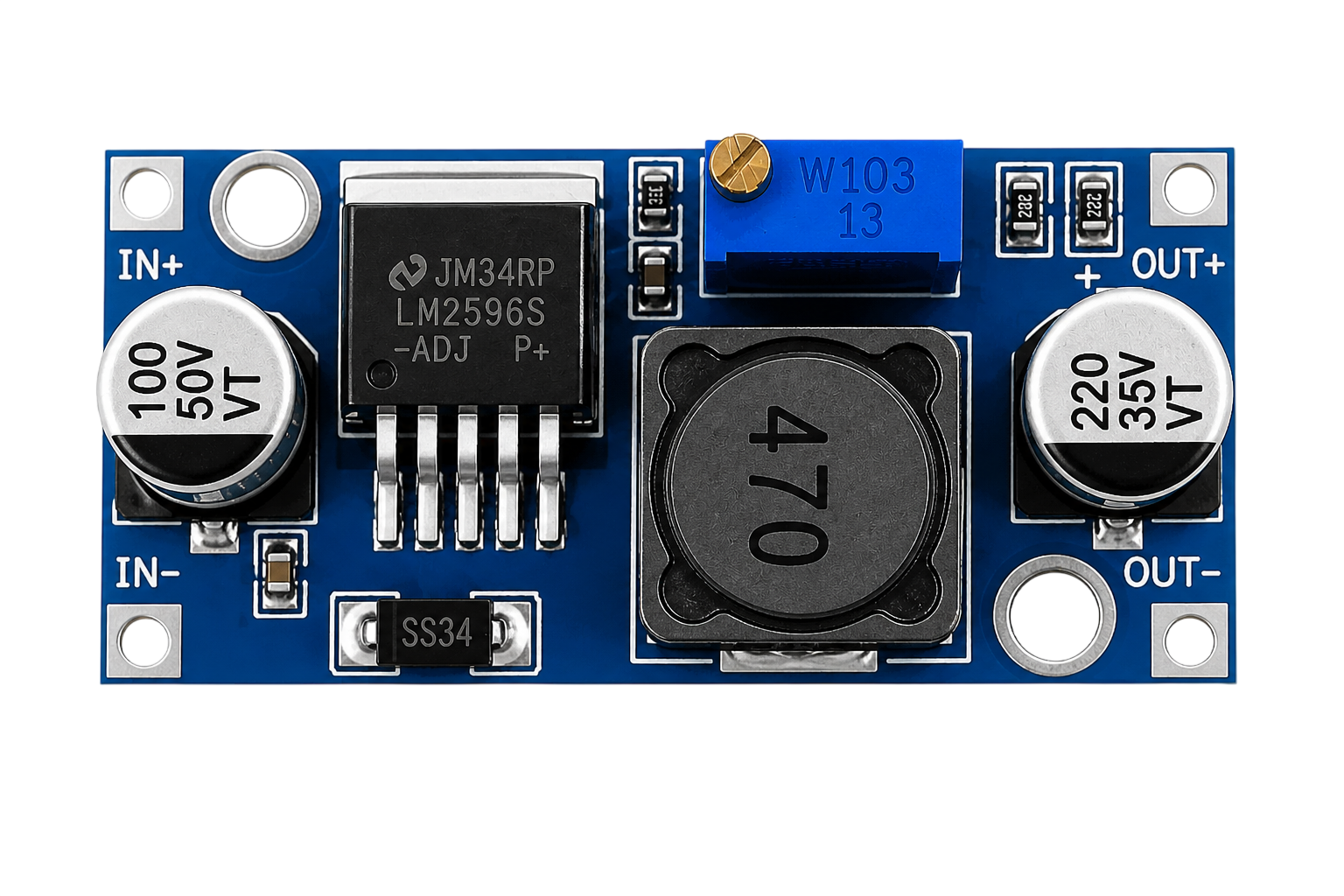

How to Use LM2596S: Examples, Pinouts, and Specs

The LM2596S is a step-down (buck) voltage regulator designed to efficiently convert a higher input voltage into a stable, regulated output voltage. It is capable of delivering up to 3A of output current, making it ideal for powering a wide range of electronic devices. With its wide input voltage range (up to 40V) and adjustable or fixed output voltage options, the LM2596S is a versatile component for power supply applications.

• DC-DC power supply modules
• Battery-powered devices
• Voltage regulation for microcontrollers and sensors
• LED drivers
• Industrial and automotive electronics

The LM2596S is typically available in a 5-pin TO-220 or TO-263 package. Below is the pinout description:

1. Input Voltage: Connect the input voltage (4.5V to 40V) to the VIN pin. Ensure the input voltage is higher than the desired output voltage by at least 3V for proper regulation.
2. Output Voltage: For the adjustable version, connect a resistor divider network to the Feedback pin to set the desired output voltage. Use the formula: [ V_{OUT} = V_{REF} \times \left(1 + \frac{R_2}{R_1}\right) ] where ( V_{REF} = 1.23V ).
3. Capacitors: Place input and output capacitors close to the regulator to ensure stability and reduce noise. Typical values are:
   • Input capacitor: 100 µF electrolytic
   • Output capacitor: 220 µF electrolytic
4. Inductor: Select an inductor with a suitable current rating (greater than 3A) and an inductance value recommended in the datasheet for your desired output voltage.
5. Enable Pin: If not used, connect the ON/OFF pin to VIN to keep the regulator enabled.

Below is a basic circuit for the adjustable version of the LM2596S:

VIN ----+---- Input Capacitor ----+---- LM2596S ----+---- Output Capacitor ---- VOUT
        |                        |                 |                           |
       GND                      GND               GND                         GND

The LM2596S can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Here's an example code to read a sensor powered by the LM2596S:

// Example: Reading a sensor powered by LM2596S
// Ensure the LM2596S output is set to 5V for powering the Arduino UNO.

const int sensorPin = A0; // Analog pin connected to the sensor
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(1000); // Wait for 1 second before the next reading
}

• Heat Dissipation: The LM2596S can generate heat during operation, especially at high currents. Use a heatsink or ensure proper ventilation to prevent overheating.
• Input Voltage: Ensure the input voltage does not exceed 40V to avoid damaging the regulator.
• Output Ripple: Use low-ESR capacitors to minimize output voltage ripple.

1. No Output Voltage:

   • Check the input voltage. Ensure it is within the specified range (4.5V to 40V).
   • Verify the ON/OFF pin is connected to VIN or logic high.
   • Inspect the circuit for loose connections or soldering issues.

2. Output Voltage is Incorrect:

   • For the adjustable version, verify the resistor divider values connected to the Feedback pin.
   • Check for damaged components, such as the inductor or capacitors.

3. Excessive Heat:

   • Ensure the load current does not exceed 3A.
   • Use a heatsink or improve ventilation around the LM2596S.

4. High Output Ripple:

   • Use low-ESR capacitors for the input and output.
   • Verify the inductor value matches the recommended specifications.

Q: Can the LM2596S be used for 3.3V output?
A: Yes, the adjustable version can be configured for a 3.3V output by selecting appropriate resistor values for the Feedback pin.

Q: What is the maximum input voltage for the LM2596S?
A: The maximum input voltage is 40V. Exceeding this value may damage the regulator.

Q: Can I use the LM2596S without an inductor?
A: No, an inductor is essential for the proper operation of the LM2596S as a switching regulator.

Q: How do I reduce noise in my circuit?
A: Use low-ESR capacitors, keep the input and output capacitors close to the regulator, and use proper PCB layout techniques to minimize noise.

This concludes the documentation for the LM2596S.
