How to Use 12V Brushless solar motor pump: Examples, Pinouts, and Specs

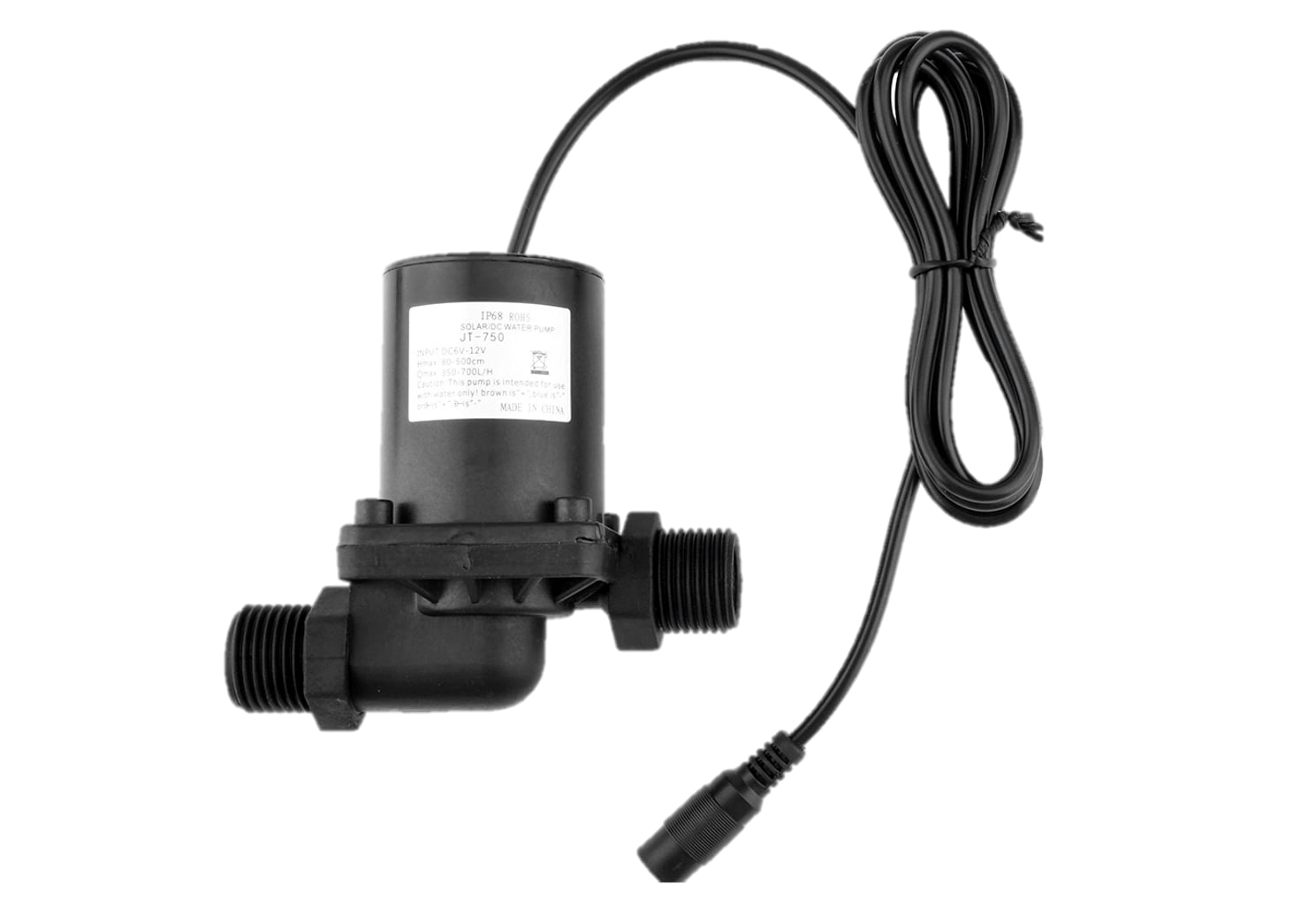

The 12V Brushless Solar Motor Pump (Manufacturer: sadfasfdsdaf, Part ID: 12312321312) is a solar-powered pump designed for efficient and quiet operation. It utilizes a brushless DC motor, which ensures durability and low maintenance. This pump is ideal for applications such as irrigation systems, water circulation in ponds or aquariums, and other small-scale water transfer tasks. Its compatibility with solar panels makes it an eco-friendly solution for off-grid or energy-efficient setups.

Below are the key technical details of the 12V Brushless Solar Motor Pump:

The pump typically comes with a 2-pin connector or bare wires for power input. Below is the pin configuration:

1. Power Source: Connect the pump to a 12V DC power source. For solar-powered applications, use a 12V solar panel with a suitable charge controller to ensure stable voltage and current.
2. Polarity: Ensure correct polarity when connecting the wires:
   • Red wire to the positive terminal (+12V).
   • Black wire to the ground (GND).
3. Water Submersion: The pump is fully submersible (IP68 rated). Place it in water before powering it on to prevent dry running, which can damage the motor.
4. Flow Control: If flow rate adjustment is required, use a compatible DC motor controller or a valve on the output pipe.

• Dry Running: Avoid running the pump without water, as this can cause overheating and damage the motor.
• Voltage Regulation: Ensure the input voltage does not exceed 12V DC to prevent damage.
• Filtration: Use a pre-filter to prevent debris from entering the pump and clogging the impeller.
• Solar Panel Sizing: For optimal performance, use a solar panel rated at 12V and at least 20W to account for varying sunlight conditions.
• Mounting: Secure the pump to prevent vibrations or movement during operation.

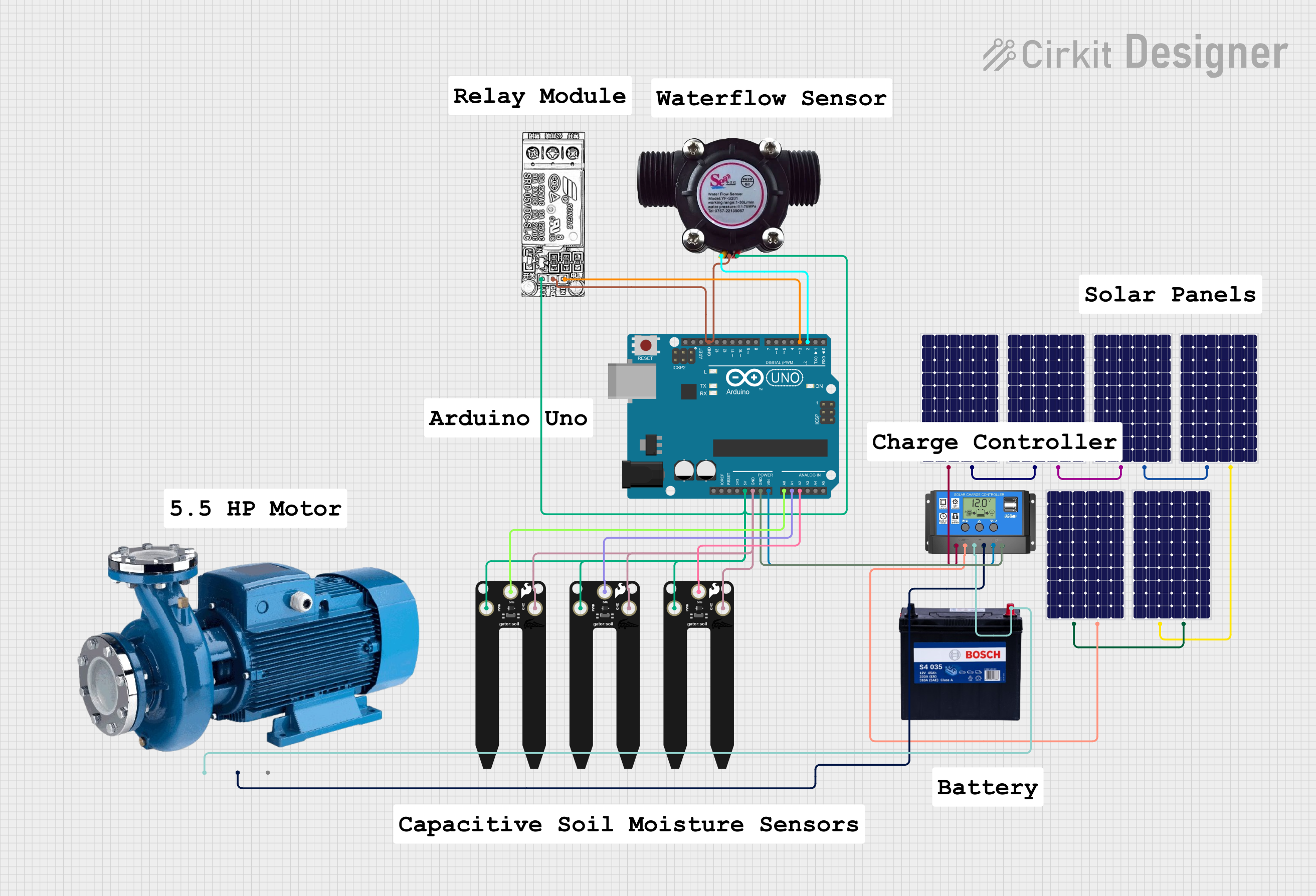

The pump can be controlled using an Arduino UNO and a relay module for on/off control. Below is an example circuit and code:

1. Connect the pump's red wire to the relay module's NO (Normally Open) terminal.
2. Connect the pump's black wire to the GND terminal of the power source.
3. Connect the relay module's COM terminal to the positive terminal of the 12V power source.
4. Connect the relay module's control pin to Arduino pin 7.

// Example code to control the 12V Brushless Solar Motor Pump using Arduino UNO
// The pump is turned on for 5 seconds and then off for 5 seconds in a loop.

const int relayPin = 7; // Pin connected to the relay module

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure the pump is off at startup
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn the pump on
  delay(5000); // Keep the pump on for 5 seconds
  digitalWrite(relayPin, LOW); // Turn the pump off
  delay(5000); // Keep the pump off for 5 seconds
}

1. Pump Does Not Start

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Verify the wiring connections and ensure the power source provides 12V DC with sufficient current.

2. Low Flow Rate

   • Cause: Clogged impeller or insufficient power.
   • Solution: Clean the pump's inlet and impeller. Check the power source for proper voltage and current.

3. Pump Overheats

   • Cause: Dry running or excessive load.
   • Solution: Ensure the pump is submerged in water during operation. Avoid restricting the output flow excessively.

4. Intermittent Operation

   • Cause: Unstable power supply or loose connections.
   • Solution: Use a stable power source and check all connections for tightness.

Q1: Can the pump run directly from a solar panel?
A1: Yes, but ensure the solar panel provides a stable 12V DC output. Using a charge controller is recommended for consistent performance.

Q2: Is the pump safe for saltwater use?
A2: Yes, the pump is designed to handle both freshwater and saltwater. However, regular cleaning is recommended to prevent salt buildup.

Q3: Can the pump be used for continuous operation?
A3: Yes, the brushless motor is designed for long-term operation. Ensure proper cooling and water flow to avoid overheating.

Q4: What is the maximum cable length for the power connection?
A4: The maximum cable length depends on the wire gauge. Use thicker wires for longer distances to minimize voltage drop.

This concludes the documentation for the 12V Brushless Solar Motor Pump. For further assistance, refer to the manufacturer's support resources.
