Arduino A000079 Motor Shield Documentation

1. Introduction

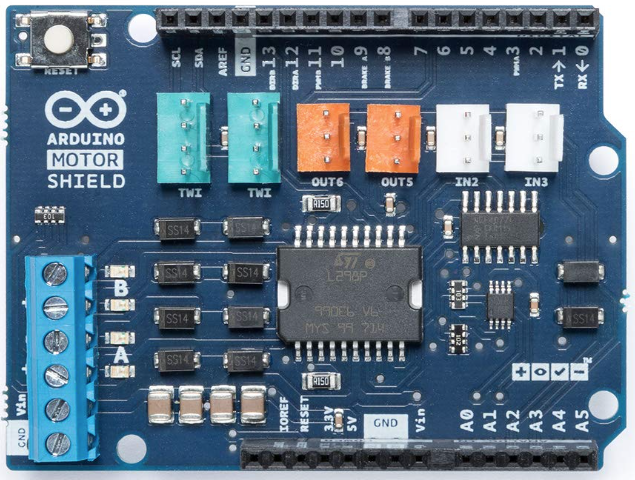

The Arduino A000079 Motor Shield is a versatile and user-friendly expansion board designed to simplify the control of DC motors, stepper motors, and servos. Built to integrate seamlessly with Arduino boards, this shield provides an efficient way to manage motor speed, direction, and other parameters. It is based on the L298P dual full-bridge driver, which allows for independent or simultaneous control of two DC motors or one stepper motor. Additionally, it includes headers for servo motor connections.

Common Applications

• Robotics and automation projects
• Motorized vehicles (e.g., cars, boats, or drones)
• Conveyor belt systems
• CNC machines and 3D printers
• Home automation systems
• Educational projects for learning motor control

2. Technical Specifications

The following table outlines the key technical details of the Arduino A000079 Motor Shield:

Pin Configuration and Descriptions

3. Usage Instructions

Connecting the Motor Shield

1. Stack the Shield: Place the A000079 Motor Shield on top of your Arduino board, ensuring the pins align correctly.
2. Connect Motors:
   • For DC motors, connect the motor wires to the MOTOR A and MOTOR B screw terminals.
   • For stepper motors, connect the four wires to the MOTOR A and MOTOR B terminals as per the motor's datasheet.
   • For servo motors, plug the servo connectors into the Servo 1 and Servo 2 headers.
3. Power the Motors:
   • If your motors require more power than the Arduino can provide, connect an external power supply (5V to 12V) to the Vin and GND terminals on the shield.
4. Upload Code: Use the Arduino IDE to upload motor control code to your Arduino board.

Important Considerations

• External Power Supply: Always use an external power supply for motors to avoid overloading the Arduino board.
• Current Limits: Ensure the motors do not exceed the 2A per channel limit of the L298P driver.
• Heat Dissipation: The L298P driver may heat up during operation. Consider adding a heatsink for prolonged use.
• Pin Conflicts: The shield uses specific Arduino pins (D3, D5, D6, D9, D10, D11, and D12). Avoid using these pins for other purposes in your project.

4. Example Code

Below is an example code snippet to control two DC motors using the A000079 Motor Shield:

// Example: Controlling two DC motors with the Arduino Motor Shield (A000079)

// Define motor control pins
const int motorA_pwm = 3;  // PWM pin for Motor A
const int motorA_dir = 6;  // Direction pin for Motor A
const int motorB_pwm = 5;  // PWM pin for Motor B
const int motorB_dir = 9;  // Direction pin for Motor B

void setup() {
  // Set motor control pins as outputs
  pinMode(motorA_pwm, OUTPUT);
  pinMode(motorA_dir, OUTPUT);
  pinMode(motorB_pwm, OUTPUT);
  pinMode(motorB_dir, OUTPUT);
}

void loop() {
  // Motor A: Forward at 50% speed
  digitalWrite(motorA_dir, HIGH);  // Set direction to forward
  analogWrite(motorA_pwm, 128);   // Set speed (0-255, 128 = 50%)

  // Motor B: Backward at 75% speed
  digitalWrite(motorB_dir, LOW);  // Set direction to backward
  analogWrite(motorB_pwm, 192);  // Set speed (0-255, 192 = 75%)

  delay(2000);  // Run motors for 2 seconds

  // Stop both motors
  analogWrite(motorA_pwm, 0);
  analogWrite(motorB_pwm, 0);

  delay(1000);  // Wait for 1 second before repeating
}

5. Troubleshooting and FAQs

Common Issues and Solutions

FAQs

1. Can I control more than two DC motors with this shield?

   • No, the shield is designed to control up to two DC motors or one stepper motor. For more motors, consider using additional motor shields or drivers.

2. What is the maximum voltage I can supply to the motors?

   • The shield supports motor supply voltages between 5V and 12V. Exceeding this range may damage the shield.

3. Can I use this shield with an Arduino Mega?

   • Yes, the shield is compatible with the Arduino Mega. However, ensure the pins used by the shield are not reassigned in your project.

4. Do I need a separate library to use this shield?

   • No, the shield can be controlled using standard Arduino functions like digitalWrite() and analogWrite(). However, libraries like the AFMotor library can simplify complex motor control.

This documentation provides a comprehensive guide to using the Arduino A000079 Motor Shield. Whether you're a beginner or an experienced user, this shield is an excellent tool for motor control in a wide range of projects.
