How to Use XIAO ESP32 C6: Examples, Pinouts, and Specs

The XIAO ESP32 C6 is a compact microcontroller board developed by XIAO, featuring the powerful ESP32-C6 chip. This board integrates Wi-Fi 6, Bluetooth 5.0, and IEEE 802.15.4 (Thread/Zigbee) capabilities, making it an excellent choice for IoT applications, smart home devices, and wireless communication projects. Its small form factor and low power consumption make it ideal for prototyping and embedding into space-constrained designs.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Prototyping for Wi-Fi and Bluetooth-enabled projects
• Zigbee/Thread-based communication systems
• Low-power, battery-operated devices

The following table outlines the key technical specifications of the XIAO ESP32 C6:

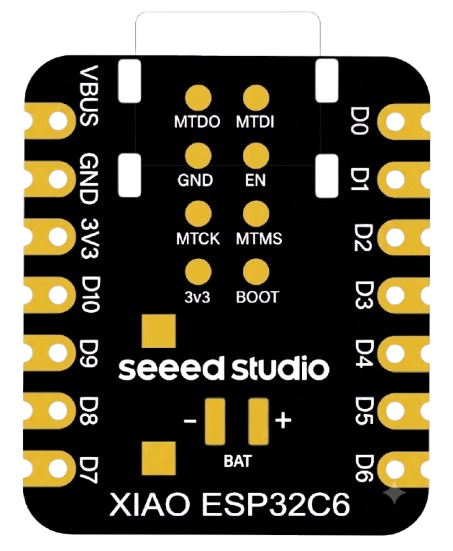

The XIAO ESP32 C6 features a total of 14 pins, including power, GPIO, and communication pins. Below is the pinout description:

1. Powering the Board:

   • Use a USB-C cable to connect the board to a power source (e.g., computer or USB adapter).
   • Alternatively, supply 3.3V directly to the 3V3 pin and connect GND to ground.

2. Programming the Board:

   • Install the ESP32 board package in the Arduino IDE or use the ESP-IDF framework.
   • Connect the board to your computer via USB-C and select the appropriate COM port.
   • Write your code and upload it to the board.

3. Connecting Peripherals:

   • Use the GPIO pins for interfacing with sensors, actuators, or other devices.
   • Configure the pins in your code for the desired functionality (e.g., input, output, ADC, PWM).

4. Wireless Communication:

   • Use the built-in Wi-Fi, Bluetooth, or Zigbee/Thread capabilities for wireless communication.
   • Libraries such as WiFi.h or BLEDevice.h can simplify development.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Pin Multiplexing: Some pins have multiple functions (e.g., ADC, PWM). Check the datasheet to avoid conflicts.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Antenna Placement: Avoid placing metal objects near the onboard antenna to ensure optimal wireless performance.

Below is an example of using the XIAO ESP32 C6 to connect to a Wi-Fi network and send data to a server:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the device's IP address
}

void loop() {
  // Add your main code here
}

1. Board Not Detected by Computer:

   • Ensure the USB-C cable supports data transfer (not just charging).
   • Check if the correct COM port is selected in the Arduino IDE.
   • Install the necessary USB drivers for the XIAO ESP32 C6.

2. Wi-Fi Connection Fails:

   • Verify the SSID and password are correct.
   • Ensure the Wi-Fi network operates on the 2.4 GHz band (not 5 GHz).
   • Check for interference or weak signal strength.

3. Code Upload Fails:

   • Press and hold the reset button while uploading the code.
   • Ensure the correct board and port are selected in the IDE.
   • Update the ESP32 board package in the Arduino IDE.

4. Low Wireless Signal Strength:

   • Avoid placing the board near metal objects or inside enclosures that block signals.
   • Ensure the onboard antenna is unobstructed.

• Q: Can I power the board with a battery?
  A: Yes, you can use a 3.7V LiPo battery with a suitable voltage regulator to supply 3.3V to the 3V3 pin.

• Q: Does the board support OTA updates?
  A: Yes, the ESP32-C6 chip supports Over-The-Air (OTA) updates for firmware.

• Q: Can I use this board for Zigbee communication?
  A: Yes, the XIAO ESP32 C6 supports IEEE 802.15.4, which is the foundation for Zigbee and Thread protocols.
