How to Use Buzzer Module: Examples, Pinouts, and Specs

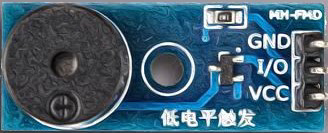

Image of Buzzer Module
Cirkit Designer LogoDesign with Buzzer Module in Cirkit Designer

Introduction

The Buzzer Module (Manufacturer: Naresh, Part ID: 1) is an electronic component designed to produce sound when an electrical signal is applied. It is widely used in applications such as alarms, notifications, timers, and sound-generating circuits. The module is compact, easy to use, and compatible with microcontrollers like Arduino, making it a popular choice for hobbyists and professionals alike.

Explore Projects Built with Buzzer Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voice-Controlled Buzzer System with VC-02 Module
Image of vc: A project utilizing Buzzer Module in a practical application
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Buzzer with Wemos D1 Mini
Image of Buzzer Twinkle: A project utilizing Buzzer Module in a practical application
This circuit consists of a Wemos D1 Mini microcontroller connected to an active buzzer module. The Wemos D1 Mini provides power to the buzzer and controls it through its D1 pin, allowing for programmable sound output.
Cirkit Designer LogoOpen Project in Cirkit Designer
IoT-Enabled Environmental Monitoring System with NUCLEO-F303RE and ESP8266
Image of GAS LEAKAGE DETECTION: A project utilizing Buzzer Module in a practical application
This circuit features a NUCLEO-F303RE microcontroller board interfaced with various modules for sensing, actuation, and communication. It includes an MQ-2 gas sensor for detecting combustible gases, a buzzer for audible alerts, and a relay for controlling high-power devices. Additionally, the circuit uses an ESP8266 WiFi module for wireless connectivity and an I2C LCD display for user interface and data display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
Image of automatic bell system: A project utilizing Buzzer Module in a practical application
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buzzer Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of vc: A project utilizing Buzzer Module in a practical application
Voice-Controlled Buzzer System with VC-02 Module
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Buzzer Twinkle: A project utilizing Buzzer Module in a practical application
Wi-Fi Controlled Buzzer with Wemos D1 Mini
This circuit consists of a Wemos D1 Mini microcontroller connected to an active buzzer module. The Wemos D1 Mini provides power to the buzzer and controls it through its D1 pin, allowing for programmable sound output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of GAS LEAKAGE DETECTION: A project utilizing Buzzer Module in a practical application
IoT-Enabled Environmental Monitoring System with NUCLEO-F303RE and ESP8266
This circuit features a NUCLEO-F303RE microcontroller board interfaced with various modules for sensing, actuation, and communication. It includes an MQ-2 gas sensor for detecting combustible gases, a buzzer for audible alerts, and a relay for controlling high-power devices. Additionally, the circuit uses an ESP8266 WiFi module for wireless connectivity and an I2C LCD display for user interface and data display.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic bell system: A project utilizing Buzzer Module in a practical application
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Alarm systems (e.g., burglar alarms, fire alarms)
  • Timers and reminders
  • Notification systems in electronic devices
  • Sound effects in toys and gadgets
  • Feedback indicators in user interfaces

Technical Specifications

Below are the key technical details of the Buzzer Module:

Parameter Specification
Operating Voltage 3.3V to 5V DC
Operating Current ≤ 20mA
Sound Frequency ~2 kHz
Sound Pressure Level ~85 dB at 10 cm
Dimensions 22mm x 12mm x 10mm
Weight ~5g

Pin Configuration and Descriptions

The Buzzer Module typically has a 3-pin interface. The table below describes each pin:

Pin Name Description
1 VCC Connect to the positive terminal of the power supply (3.3V to 5V).
2 GND Connect to the ground terminal of the power supply.
3 Signal Input pin for the control signal. A HIGH signal activates the buzzer.

Usage Instructions

How to Use the Buzzer Module in a Circuit

  1. Power Connection: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
  2. Signal Input: Connect the Signal pin to a microcontroller's GPIO pin or any other control circuit capable of providing a HIGH/LOW signal.
  3. Activation: When the Signal pin receives a HIGH signal, the buzzer produces sound. When the signal is LOW, the buzzer remains silent.

Important Considerations and Best Practices

  • Voltage Range: Ensure the operating voltage is within the specified range (3.3V to 5V). Exceeding this range may damage the module.
  • Current Limitation: The module draws a small current (≤ 20mA), so it can be directly driven by most microcontroller GPIO pins.
  • Placement: For optimal sound output, avoid obstructing the buzzer's sound hole.
  • Signal Frequency: To produce a continuous tone, provide a steady HIGH signal. For beeping sounds, use a PWM signal or toggle the Signal pin between HIGH and LOW at desired intervals.

Example: Connecting to an Arduino UNO

Below is an example of how to connect and control the Buzzer Module using an Arduino UNO:

Circuit Diagram

  • Connect the VCC pin of the buzzer to the 5V pin on the Arduino.
  • Connect the GND pin of the buzzer to the GND pin on the Arduino.
  • Connect the Signal pin of the buzzer to digital pin 8 on the Arduino.

Arduino Code

// Buzzer Module Example Code
// Manufacturer: Naresh, Part ID: 1
// This code demonstrates how to control a buzzer module using an Arduino UNO.

#define BUZZER_PIN 8  // Define the pin connected to the buzzer's Signal pin

void setup() {
  pinMode(BUZZER_PIN, OUTPUT);  // Set the buzzer pin as an output
}

void loop() {
  digitalWrite(BUZZER_PIN, HIGH);  // Turn the buzzer ON
  delay(1000);                     // Wait for 1 second
  digitalWrite(BUZZER_PIN, LOW);   // Turn the buzzer OFF
  delay(1000);                     // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Sound from the Buzzer

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply voltage is within the specified range (3.3V to 5V).
  2. Buzzer Produces Weak or Distorted Sound

    • Cause: Obstruction of the sound hole or insufficient current.
    • Solution: Ensure the sound hole is unobstructed and verify that the power source can supply enough current.
  3. Buzzer Stays ON Continuously

    • Cause: The Signal pin is stuck at HIGH.
    • Solution: Check the control signal from the microcontroller and ensure it toggles between HIGH and LOW as intended.
  4. Buzzer Does Not Respond to Control Signal

    • Cause: Faulty GPIO pin or incorrect pin configuration in the code.
    • Solution: Verify the GPIO pin's functionality and ensure the correct pin is defined in the code.

FAQs

Q1: Can the Buzzer Module be powered by a 9V battery?
A1: No, the module is designed to operate within a voltage range of 3.3V to 5V. Using a 9V battery directly may damage the module.

Q2: Can I use the Buzzer Module with a Raspberry Pi?
A2: Yes, the module can be used with a Raspberry Pi. Connect the Signal pin to a GPIO pin on the Raspberry Pi and control it using Python or other programming languages.

Q3: How can I produce different tones with the buzzer?
A3: The Buzzer Module is typically a passive buzzer. To produce different tones, you can use a PWM signal with varying frequencies.

Q4: Is the Buzzer Module waterproof?
A4: No, the module is not waterproof. Avoid exposing it to moisture or water to prevent damage.
