How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

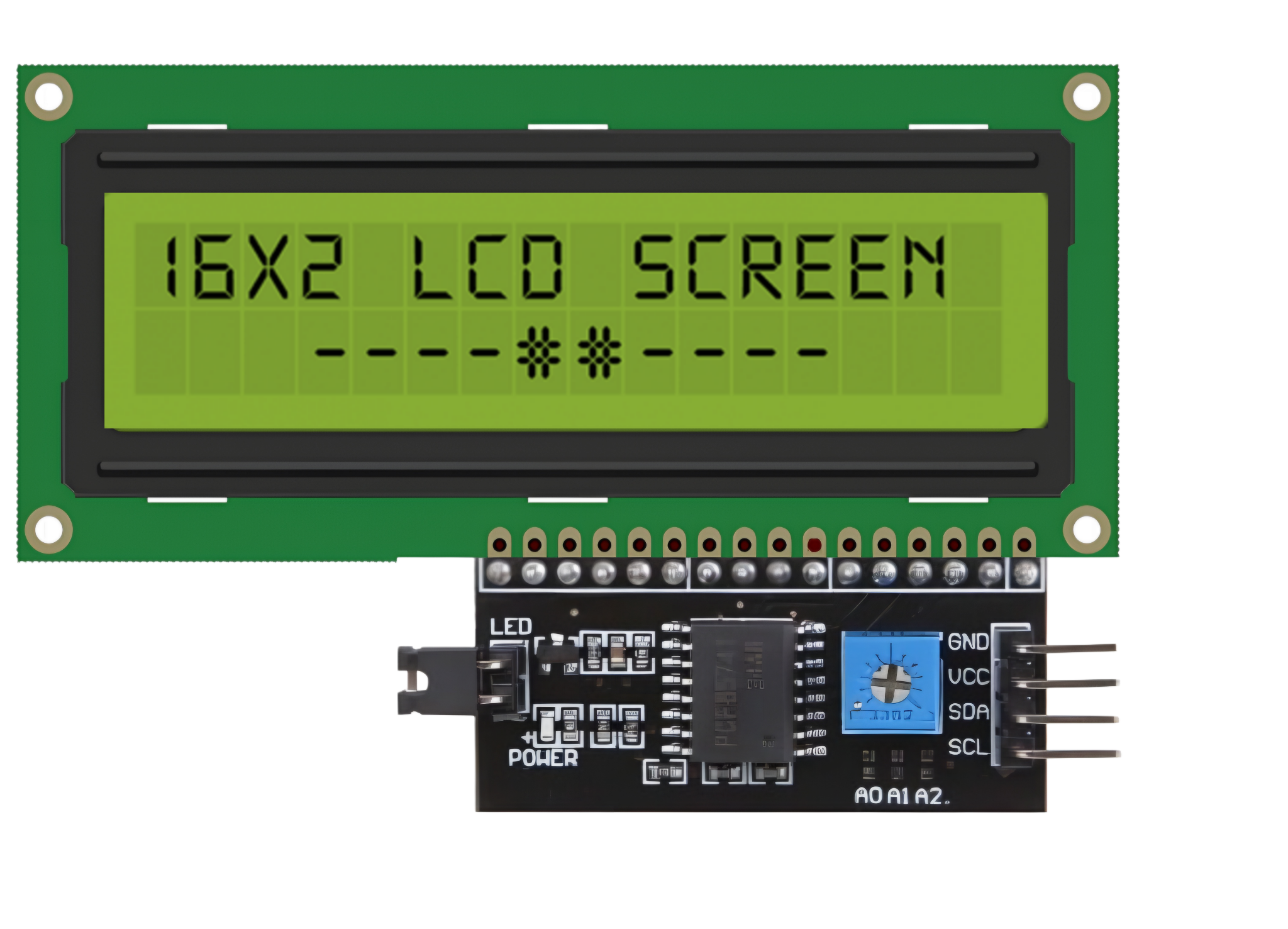

The LCD 16x2 with I2C interface is a versatile and widely used display module capable of showing 16 characters per line across 2 lines. It is equipped with an I2C (Inter-Integrated Circuit) interface, which simplifies communication with microcontrollers by reducing the number of required pins. This makes it an ideal choice for projects where pin availability is limited or where simplicity is desired.

• Displaying sensor data in real-time
• User interfaces for embedded systems
• Menu systems for microcontroller-based projects
• Educational and prototyping purposes
• Home automation systems

The I2C interface reduces the number of pins required to connect the LCD to a microcontroller. The module typically has 4 pins:

1. Wiring the LCD to a Microcontroller:

   • Connect the VCC pin of the LCD to the 5V pin of the microcontroller.
   • Connect the GND pin of the LCD to the ground (GND) of the microcontroller.
   • Connect the SDA pin of the LCD to the SDA pin of the microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin of the LCD to the SCL pin of the microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the Arduino IDE and install the LiquidCrystal_I2C library. This can be done via the Library Manager (Sketch > Include Library > Manage Libraries).

3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

   // Include the LiquidCrystal_I2C library
   #include <Wire.h>
   #include <LiquidCrystal_I2C.h>

   // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
   LiquidCrystal_I2C lcd(0x27, 16, 2);

   void setup() {
     lcd.begin(); // Initialize the LCD
     lcd.backlight(); // Turn on the backlight
     lcd.setCursor(0, 0); // Set cursor to the first column, first row
     lcd.print("Hello, World!"); // Print text on the LCD
   }

   void loop() {
     // No additional code needed for this example
   }


• I2C Address: The default I2C address is usually 0x27, but it may vary depending on the manufacturer. Use an I2C scanner sketch to determine the correct address if needed.
• Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: Some modules have a potentiometer to adjust the contrast. If characters are not visible, adjust the potentiometer.
• Pull-Up Resistors: If the I2C bus does not have pull-up resistors, add 4.7kΩ resistors between SDA and VCC, and SCL and VCC.

1. No Display or Blank Screen:

   • Ensure the power connections (VCC and GND) are correct.
   • Check the contrast adjustment potentiometer.
   • Verify the I2C address using an I2C scanner sketch.

2. Flickering or Unstable Display:

   • Check for loose connections or unstable power supply.
   • Ensure proper pull-up resistors are in place on the I2C lines.

3. Incorrect or Garbled Characters:

   • Verify the I2C address in the code matches the module's address.
   • Ensure the correct library is installed and included in the code.

4. Backlight Not Working:

   • Check the backlight control pin (if available) or ensure the backlight is enabled in the code.

Q: How do I find the I2C address of my LCD module?
A: Use an I2C scanner sketch available online. It will scan the I2C bus and display the address of connected devices.

Q: Can I use this LCD with a 3.3V microcontroller?
A: Yes, but ensure the I2C lines are level-shifted to 3.3V, or use a module that supports 3.3V logic.

Q: Can I connect multiple I2C devices to the same microcontroller?
A: Yes, as long as each device has a unique I2C address. If two devices share the same address, you may need an I2C multiplexer.

Q: How do I display custom characters?
A: The LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for details on creating and displaying custom characters.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 with I2C interface in your projects.
