This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
![Image of OLED 2.42 Inch SSD1309 i2c [Bill Ludwig]](https://abacasstorageaccnt.blob.core.windows.net/cirkit/de827293-eb37-4fa5-93ee-1441c5d60105.png)

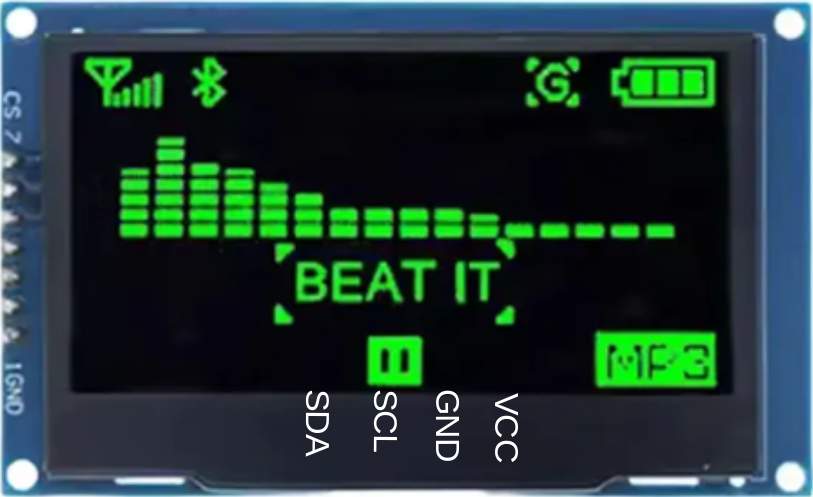

The OLED 2.42 Inch SSD1309 I2C (Manufacturer: Tenstar, Part ID: OLED.2.42.Inch.SSD1309.i2c) is a compact and versatile OLED display module. It features a 2.42-inch screen with a resolution of 128x64 pixels, driven by the SSD1309 controller. This module uses the I2C communication protocol, making it easy to interface with a wide range of microcontrollers, including Arduino, Raspberry Pi, and other development boards.
![Image of IoT Board with 0.96" OLED Display for Real-Time Data Visualization: A project utilizing OLED 2.42 Inch SSD1309 i2c [Bill Ludwig] in a practical application](https://abacasstorageaccnt.blob.core.windows.net/cirkit/c9443cdb-6d40-411c-b2ed-dc22457f1919.png)
This circuit connects a 0.96" OLED display to an IoT board. The OLED display is powered by the 3.3V and GND pins of the IoT board, and communicates with the board via I2C using the SDA and SCL pins.
![Image of Wi-Fi Controlled RGB LED and OLED Display with ESP8266: A project utilizing OLED 2.42 Inch SSD1309 i2c [Bill Ludwig] in a practical application](https://abacasstorageaccnt.blob.core.windows.net/cirkit/ed3f6d58-3092-4102-8011-fabab1c44ddc.png)
This circuit features an ESP8266 microcontroller interfaced with a 128x64 OLED display via I2C for visual output and an RGB LED controlled through current-limiting resistors. The ESP8266 provides power and control signals to both the display and the LED, enabling visual feedback and status indication.
![Image of Arduino 101 OLED Display Animation Project: A project utilizing OLED 2.42 Inch SSD1309 i2c [Bill Ludwig] in a practical application](https://abacasstorageaccnt.blob.core.windows.net/cirkit/50f718b2-6dac-4461-bdad-132280655478.png)
This circuit consists of an Arduino 101 microcontroller connected to a 0.96" OLED display via I2C communication. The Arduino runs a program that initializes the OLED and continuously displays an animated sequence of frames on the screen.
![Image of Arduino UNO Controlled OLED Display with 9V Battery and Step-Down Converter: A project utilizing OLED 2.42 Inch SSD1309 i2c [Bill Ludwig] in a practical application](https://abacasstorageaccnt.blob.core.windows.net/cirkit/8e1262f4-4dbb-4fee-a0fb-552f98acfbb0.png)
This circuit features an Arduino UNO connected to a 128x64 OLED display via I2C communication lines (SDA and SCL), with the Arduino providing control signals to the display. A 9V battery powers the circuit through a 12v to 5v step-down power converter, which supplies a regulated 5V to both the Arduino and the OLED display. The embedded code on the Arduino is configured to blink an onboard LED with a 1-second interval.
Below are the key technical details and pin configuration for the OLED 2.42 Inch SSD1309 I2C module:
| Parameter | Value |
|---|---|
| Display Type | OLED |
| Screen Size | 2.42 inches |
| Resolution | 128x64 pixels |
| Controller | SSD1309 |
| Interface | I2C |
| Operating Voltage | 3.3V to 5V |
| Operating Current | ~20mA (typical) |
| Viewing Angle | >160° |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 60mm x 37mm x 4mm |
| Pin Name | Pin Number | Description |
|---|---|---|
| GND | 1 | Ground connection for the module. |
| VCC | 2 | Power supply input (3.3V to 5V). |
| SCL | 3 | I2C clock line (connect to microcontroller SCL). |
| SDA | 4 | I2C data line (connect to microcontroller SDA). |
VCC pin to a 3.3V or 5V power source and the GND pin to ground.SCL pin to the I2C clock line of your microcontroller.SDA pin to the I2C data line of your microcontroller.Adafruit_SSD1306 and Adafruit_GFX libraries, which support the SSD1309 controller.0x3C. Verify this in the module's datasheet or by scanning I2C devices.Below is an example code snippet to initialize and display text on the OLED module using an Arduino UNO:
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
// Define the OLED display width and height
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
// Create an SSD1306 display object (I2C address 0x3C)
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
// Initialize serial communication for debugging
Serial.begin(9600);
// Initialize the OLED display
if (!display.begin(SSD1306_I2C_ADDRESS, 0x3C)) {
Serial.println(F("SSD1309 initialization failed!"));
while (true); // Halt execution if initialization fails
}
// Clear the display buffer
display.clearDisplay();
// Set text size, color, and cursor position
display.setTextSize(1); // Text size multiplier
display.setTextColor(SSD1306_WHITE); // White text
display.setCursor(0, 0); // Top-left corner
// Display a message
display.println(F("Hello, OLED!"));
display.display(); // Render the text on the screen
}
void loop() {
// Nothing to do here
}
Display Not Turning On:
VCC and GND).SCL and SDA) are correctly connected.0x3C).Flickering or Unstable Display:
Text or Graphics Not Displaying:
Adafruit_SSD1306 and Adafruit_GFX libraries are installed.I2C Address Not Detected:
Q: Can this module work with 3.3V microcontrollers like ESP32?
A: Yes, the module is compatible with both 3.3V and 5V systems.
Q: Is the SSD1309 backward-compatible with SSD1306 libraries?
A: Yes, the SSD1309 is largely compatible with SSD1306 libraries, but some advanced features may require additional configuration.
Q: How can I adjust the brightness of the display?
A: Brightness can be controlled via software commands using the Adafruit_SSD1306 library.
Q: Can I use this module with SPI instead of I2C?
A: No, this specific module is designed for I2C communication only. For SPI, consider a different variant of the SSD1309 module.
This concludes the documentation for the OLED 2.42 Inch SSD1309 I2C module.
