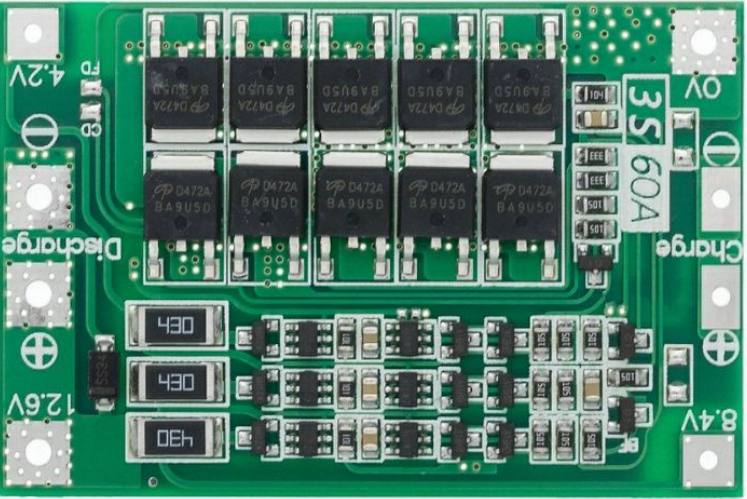

Image of BMS 3s
Cirkit Designer LogoDesign with BMS 3s in Cirkit Designer

Introduction

The BMS 3S is a Battery Management System designed specifically for managing and protecting 3-cell lithium-ion battery packs (commonly referred to as 3S configurations). It ensures the safe operation of the battery pack by monitoring critical parameters such as voltage, current, and temperature. Additionally, it provides cell balancing to maintain uniform charge levels across all cells, thereby extending the battery's lifespan and improving performance.
