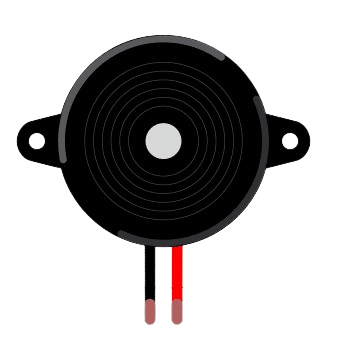

Image of Buzzer
Cirkit Designer LogoDesign with Buzzer in Cirkit Designer

Introduction

A buzzer is an audio signaling device that produces sound when an electrical signal is applied. It is widely used in various applications such as alarms, timers, notifications, and user interfaces to provide audible feedback. Buzzers are available in two main types: active and passive. Active buzzers generate sound when powered, while passive buzzers require an external signal to produce sound.

Common applications of buzzers include:

  • Alarm systems (e.g., fire alarms, security alarms)
  • Timers and reminders
  • Notification systems in electronic devices
  • Feedback mechanisms in user interfaces (e.g., button presses)

Explore Projects Built with Buzzer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
Image of automatic bell system: A project utilizing Buzzer in a practical application
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor and Buzzer Alarm System
Image of blindstick: A project utilizing Buzzer in a practical application
This circuit consists of an IR sensor and a buzzer powered by a 9V battery. The IR sensor detects an object and triggers the buzzer to sound an alarm when an object is detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Buzzer Circuit
Image of  Buzzer with AA battery: A project utilizing Buzzer in a practical application
This circuit consists of a simple buzzer connected to a 3V battery source. The positive terminal of the battery is connected to the buzzer's power input, and the negative terminal is connected to the buzzer's ground. The circuit is designed to power the buzzer continuously, producing a constant sound or tone as long as the battery provides sufficient voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voice-Controlled Buzzer System with VC-02 Module
Image of vc: A project utilizing Buzzer in a practical application
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buzzer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of automatic bell system: A project utilizing Buzzer in a practical application
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blindstick: A project utilizing Buzzer in a practical application
Battery-Powered IR Sensor and Buzzer Alarm System
This circuit consists of an IR sensor and a buzzer powered by a 9V battery. The IR sensor detects an object and triggers the buzzer to sound an alarm when an object is detected.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of  Buzzer with AA battery: A project utilizing Buzzer in a practical application
Battery-Powered Buzzer Circuit
This circuit consists of a simple buzzer connected to a 3V battery source. The positive terminal of the battery is connected to the buzzer's power input, and the negative terminal is connected to the buzzer's ground. The circuit is designed to power the buzzer continuously, producing a constant sound or tone as long as the battery provides sufficient voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of vc: A project utilizing Buzzer in a practical application
Voice-Controlled Buzzer System with VC-02 Module
This circuit features a VC-02 voice recognition module connected to a buzzer and powered by a 5V battery. The VC-02 module is programmed to listen for specific voice commands and, upon recognizing the command 'can you make a sound', it activates the buzzer for one second. The circuit is designed for voice-activated sound generation, with the VC-02 module handling voice recognition and serial communication, and the buzzer providing audible feedback.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the general technical specifications for a typical buzzer. Note that specific values may vary depending on the model and manufacturer.

Parameter Specification
Operating Voltage 3V to 12V (commonly 5V)
Current Consumption 10mA to 50mA
Sound Frequency 2 kHz to 4 kHz
Sound Pressure Level 85 dB to 100 dB (at 10 cm distance)
Operating Temperature -20°C to +70°C
Dimensions Varies (e.g., 12mm diameter, 8mm height)

Pin Configuration and Descriptions

Buzzers typically have two pins: positive (+) and negative (-). The table below describes the pin configuration:

Pin Description
Positive (+) Connect to the positive terminal of the power supply or signal source.
Negative (-) Connect to the ground (GND) of the circuit.

Usage Instructions

How to Use the Buzzer in a Circuit

  1. Identify the Type of Buzzer: Determine whether the buzzer is active or passive. Active buzzers only require a DC voltage to operate, while passive buzzers need an oscillating signal (e.g., from a microcontroller).
  2. Connect the Pins:
    • For an active buzzer, connect the positive pin to the power supply or control signal and the negative pin to ground.
    • For a passive buzzer, connect the positive pin to a PWM (Pulse Width Modulation) output pin of a microcontroller and the negative pin to ground.
  3. Power the Circuit: Ensure the operating voltage matches the buzzer's specifications to avoid damage.
  4. Test the Buzzer: Apply power or a signal to verify that the buzzer produces sound.

Important Considerations and Best Practices

  • Voltage Compatibility: Always check the operating voltage range of the buzzer to prevent overvoltage damage.
  • Current Limiting: Use a current-limiting resistor if necessary to protect the buzzer and circuit components.
  • Signal Frequency: For passive buzzers, ensure the signal frequency matches the buzzer's resonant frequency for optimal sound output.
  • Polarity: Observe the correct polarity when connecting the buzzer to avoid malfunction.

Example: Connecting a Buzzer to an Arduino UNO

Below is an example of how to connect and control a passive buzzer using an Arduino UNO:

Circuit Setup

  • Connect the positive pin of the buzzer to Arduino pin 9.
  • Connect the negative pin of the buzzer to the GND pin on the Arduino.

Arduino Code

// Example code to control a passive buzzer with Arduino UNO
// The buzzer will produce a tone at 1 kHz for 1 second, then stop for 1 second.

int buzzerPin = 9; // Pin connected to the buzzer

void setup() {
  pinMode(buzzerPin, OUTPUT); // Set the buzzer pin as an output
}

void loop() {
  tone(buzzerPin, 1000); // Generate a 1 kHz tone on the buzzer
  delay(1000);           // Wait for 1 second
  noTone(buzzerPin);     // Stop the tone
  delay(1000);           // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Sound from the Buzzer:

    • Cause: Incorrect wiring or insufficient voltage.
    • Solution: Verify the connections and ensure the power supply matches the buzzer's operating voltage.
  2. Buzzer Produces Weak or Distorted Sound:

    • Cause: Signal frequency mismatch (for passive buzzers) or low voltage.
    • Solution: Adjust the signal frequency to match the buzzer's resonant frequency or increase the voltage within the specified range.
  3. Buzzer Overheats:

    • Cause: Overvoltage or excessive current.
    • Solution: Use a current-limiting resistor and ensure the voltage is within the specified range.
  4. Buzzer Produces Continuous Sound (Passive Buzzer):

    • Cause: A constant DC signal is applied instead of a PWM signal.
    • Solution: Use a PWM signal to drive the passive buzzer.

FAQs

Q: Can I use a passive buzzer without a microcontroller?
A: Yes, but you will need an external oscillator circuit to generate the required signal.

Q: How do I differentiate between an active and a passive buzzer?
A: Active buzzers typically have a built-in oscillator and produce sound when powered with DC voltage. Passive buzzers require an external signal and are usually smaller in size.

Q: Can I connect a buzzer directly to a battery?
A: Active buzzers can be connected directly to a battery if the voltage matches their operating range. Passive buzzers require an oscillating signal and cannot be powered directly by a battery.

Q: What is the typical lifespan of a buzzer?
A: The lifespan of a buzzer depends on its usage and operating conditions but is typically rated for tens of thousands of hours.
