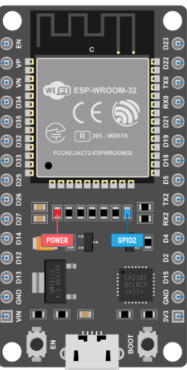

How to Use esp32: Examples, Pinouts, and Specs

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful microcontroller for a wide range of projects.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output

This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.

Open Project in Cirkit Designer

ESP32-Based Sensor Monitoring System with OLED Display and E-Stop

This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.

Open Project in Cirkit Designer

ESP32-Based Environmental Monitoring System with Motion Detection

This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.

Open Project in Cirkit Designer

ESP32-Based Smart Weather Station with Wi-Fi Connectivity

This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.

Open Project in Cirkit Designer

Common Applications and Use Cases

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Robotics and drones
• Industrial automation
• Real-time data monitoring and logging

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

General Specifications

Pin Configuration and Descriptions

The ESP32 has a flexible pinout, but the exact configuration depends on the specific module (e.g., ESP32-WROOM-32). Below is a general pin description:

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin behavior.

Usage Instructions

How to Use the ESP32 in a Circuit

1. Power Supply: Provide a stable 3.3V power supply to the ESP32. Avoid exceeding this voltage to prevent damage.
2. Boot Mode: To flash firmware, connect GPIO0 to GND and reset the chip. After flashing, disconnect GPIO0 from GND.
3. Connections: Use appropriate pull-up or pull-down resistors for GPIO pins as needed. Ensure peripherals are compatible with the ESP32's voltage levels.
4. Programming: The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments.

Example: Blinking an LED with Arduino IDE

Below is an example of how to blink an LED connected to GPIO2 using the Arduino IDE:

// Define the GPIO pin where the LED is connected
#define LED_PIN 2

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(1000);                 // Wait for 1 second
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(1000);                 // Wait for 1 second
}

Important Considerations and Best Practices

• Voltage Levels: Ensure all peripherals operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
• Wi-Fi Interference: Keep the antenna area clear of obstructions and metal objects for optimal Wi-Fi performance.
• Power Supply: Use a decoupling capacitor (e.g., 10 µF) near the power pins to stabilize the voltage.
• Heat Management: The ESP32 may heat up during operation. Ensure proper ventilation or heat dissipation if used in high-performance applications.

Troubleshooting and FAQs

Common Issues and Solutions

1. ESP32 Not Detected by Computer

   • Cause: Missing USB-to-serial driver.
   • Solution: Install the appropriate driver for your ESP32 module (e.g., CP2102 or CH340).

2. Wi-Fi Connection Fails

   • Cause: Incorrect SSID or password.
   • Solution: Double-check the credentials in your code. Ensure the Wi-Fi network is operational.

3. GPIO Pin Not Working

   • Cause: Pin conflict or incorrect configuration.
   • Solution: Verify the pin's function and ensure it is not used for boot or other special purposes.

4. Program Upload Fails

   • Cause: Incorrect boot mode or baud rate.
   • Solution: Ensure GPIO0 is connected to GND during flashing. Use a baud rate of 115200 or 921600.

FAQs

Q: Can the ESP32 operate on battery power?
A: Yes, the ESP32 supports low-power modes, making it suitable for battery-powered applications. Use a 3.7V LiPo battery with a voltage regulator to provide 3.3V.

Q: How do I reset the ESP32?
A: Press the EN (Enable) button on the module to reset the ESP32.

Q: Can I use the ESP32 with 5V peripherals?
A: The ESP32 operates at 3.3V logic levels. Use level shifters to interface with 5V peripherals safely.

Q: What is the maximum Wi-Fi range of the ESP32?
A: The range depends on the environment but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues with ease.
