How to Use A4988 Circuit Board: Examples, Pinouts, and Specs

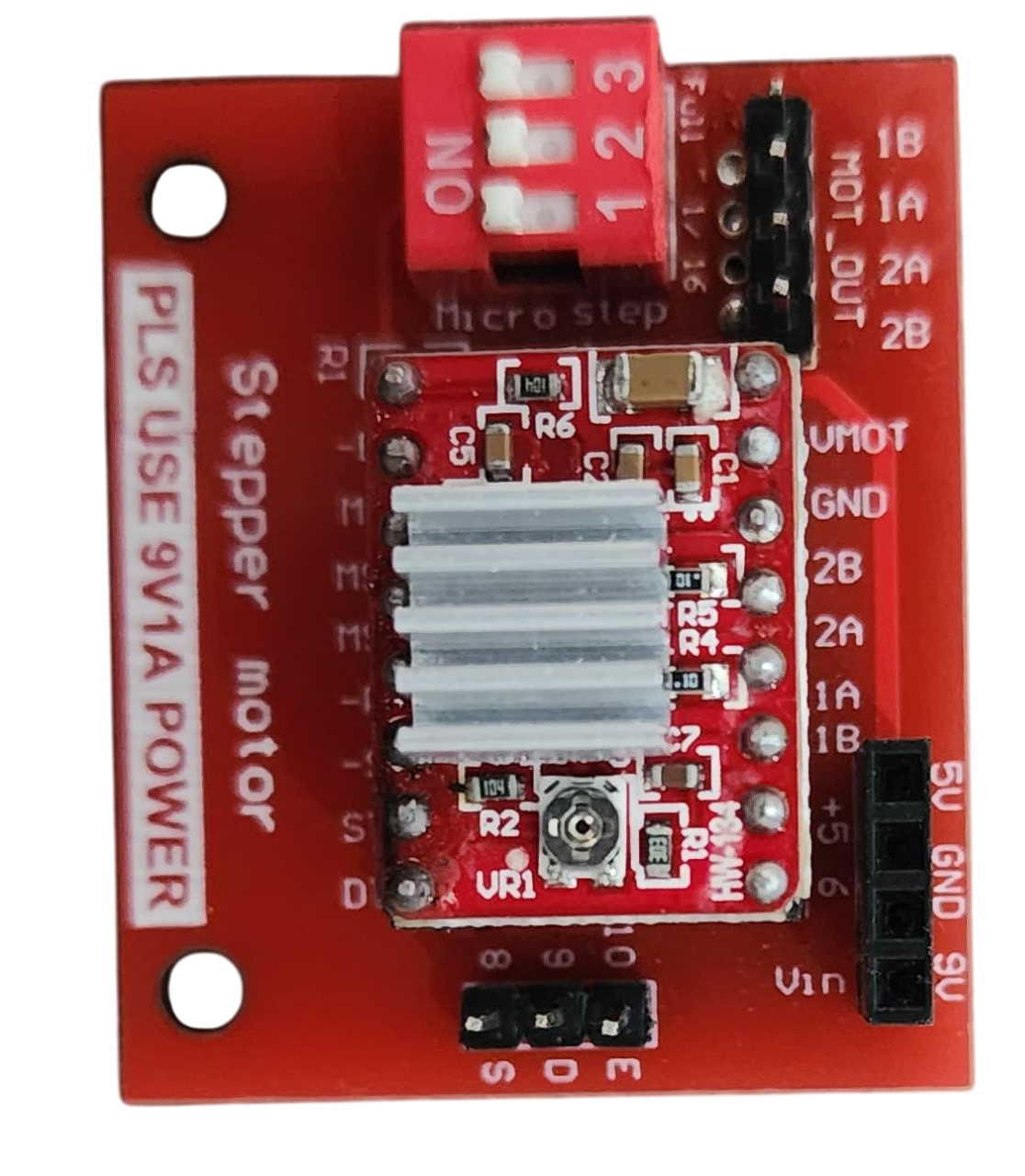

The A4988 is a microstepping driver designed for controlling bipolar stepper motors. Manufactured by Custom, with the part ID A4988, this component enables precise control of motor position and speed. It features adjustable current control, over-temperature protection, and a straightforward interface, making it ideal for a wide range of applications.

• 3D printers
• CNC machines
• Robotics
• Automated systems requiring precise motor control

• Operating Voltage (VDD): 3.3V to 5V
• Motor Supply Voltage (VMOT): 8V to 35V
• Output Current per Phase: Up to 2A (with sufficient cooling)
• Microstepping Modes: Full, 1/2, 1/4, 1/8, and 1/16 steps
• Logic Input Current: 1mA to 2mA
• Over-Temperature Protection: Yes
• Short-to-Ground and Shorted-Load Protection: Yes

The A4988 circuit board has 16 pins. Below is the pinout and description:

The microstepping resolution is determined by the MS1, MS2, and MS3 pins:

1. Power Connections:

   • Connect VMOT to the motor's power supply (8V to 35V) and GND to the power ground.
   • Connect VDD to the logic voltage supply (3.3V to 5V) and GND to the logic ground.

2. Motor Connections:

   • Connect the stepper motor's two coils to the 1A, 1B, 2A, and 2B pins. Ensure the correct pairing of the motor wires.

3. Control Signals:

   • Use the STEP pin to send pulses for each step. The DIR pin determines the direction of rotation.
   • Set the microstepping mode using the MS1, MS2, and MS3 pins.

4. Current Adjustment:

   • Adjust the current limit using the potentiometer on the board. This prevents overheating and ensures optimal motor performance.

5. Enable/Disable:

   • Use the ENABLE pin to enable or disable the driver. Pull it low to enable the driver.

• Heat Dissipation: The A4988 can get hot during operation. Use a heat sink or active cooling for high-current applications.
• Current Limiting: Always set the current limit to match your motor's rated current to avoid damage.
• Decoupling Capacitors: Place a 100µF capacitor across VMOT and GND to reduce voltage spikes.

Below is an example of how to control a stepper motor using the A4988 and an Arduino UNO:

• Connect the A4988's STEP and DIR pins to Arduino digital pins 2 and 3, respectively.
• Connect ENABLE to GND to enable the driver.
• Connect VMOT and GND to the motor power supply.
• Connect VDD and GND to the Arduino's 5V and GND pins.

// Define pin connections
#define STEP_PIN 2  // Pin connected to A4988 STEP
#define DIR_PIN 3   // Pin connected to A4988 DIR

void setup() {
  pinMode(STEP_PIN, OUTPUT); // Set STEP pin as output
  pinMode(DIR_PIN, OUTPUT);  // Set DIR pin as output

  digitalWrite(DIR_PIN, HIGH); // Set initial direction (HIGH = clockwise)
}

void loop() {
  // Generate a step pulse
  digitalWrite(STEP_PIN, HIGH); // Set STEP pin HIGH
  delayMicroseconds(1000);      // Wait 1ms
  digitalWrite(STEP_PIN, LOW);  // Set STEP pin LOW
  delayMicroseconds(1000);      // Wait 1ms
}

1. Motor Not Moving:

   • Check the power supply connections (VMOT and VDD).
   • Verify the STEP and DIR signals from the microcontroller.
   • Ensure the motor coils are correctly connected to 1A, 1B, 2A, and 2B.

2. Overheating:

   • Ensure the current limit is set correctly using the potentiometer.
   • Add a heat sink or active cooling to the A4988.

3. Jerky or Inconsistent Movement:

   • Verify the microstepping mode settings (MS1, MS2, MS3).
   • Check for loose or incorrect wiring.

4. Fault Pin Active:

   • Check for over-temperature or short-circuit conditions.
   • Reduce the current limit or improve cooling.

• Q: Can I use the A4988 with a unipolar stepper motor?
  A: No, the A4988 is designed for bipolar stepper motors only.

• Q: How do I calculate the current limit?
  A: Use the formula: Current Limit = VREF / (8 × RS), where RS is the sense resistor value (typically 0.1Ω).

• Q: What happens if I exceed the current limit?
  A: The A4988 will enter over-current protection mode, and the motor may stop functioning until the issue is resolved.

By following this documentation, you can effectively integrate the A4988 into your projects for precise stepper motor control.
