How to Use Heart Pulse Sensor: Examples, Pinouts, and Specs

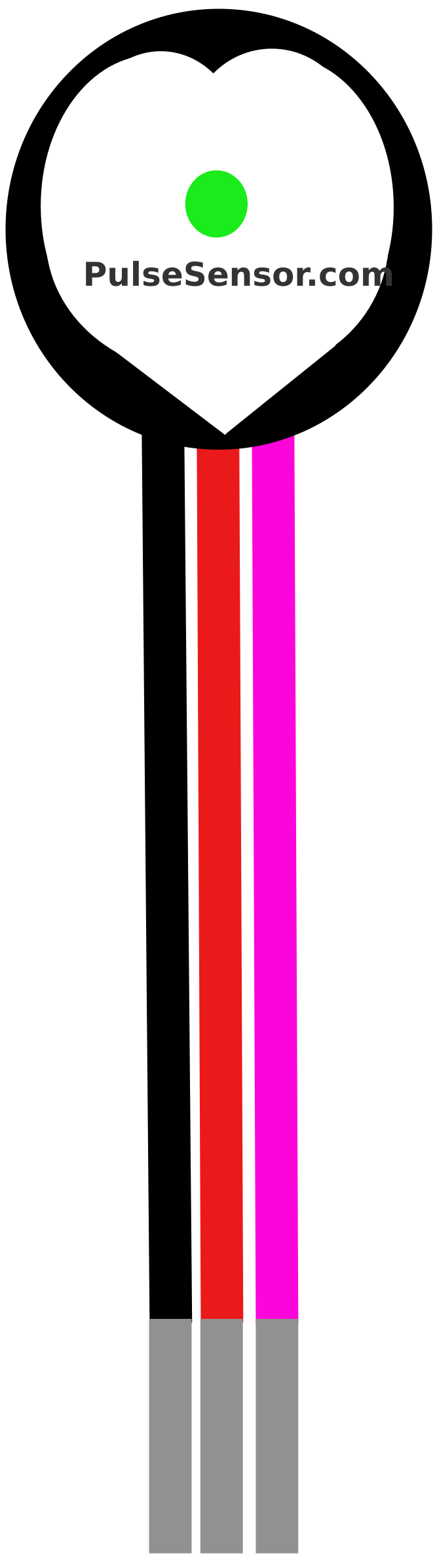

Image of Heart Pulse Sensor
Cirkit Designer LogoDesign with Heart Pulse Sensor in Cirkit Designer

Introduction

The Heart Pulse Sensor is a compact and efficient device designed to detect and measure the heartbeat by monitoring blood flow through the skin. It operates using photoplethysmography (PPG), a technique that uses light to measure changes in blood volume. This sensor is widely used in health monitoring applications, fitness trackers, and biofeedback systems. Its ease of use and compatibility with microcontrollers make it a popular choice for both hobbyists and professionals.

Explore Projects Built with Heart Pulse Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Based Heart Rate Monitor with OLED Display
Image of Dead Man's switch: A project utilizing Heart Pulse Sensor in a practical application
This circuit is designed to measure heart pulse rate using an Arduino UNO connected to a Heart Pulse Sensor. The sensor's signal is read by the Arduino's analog input A0, and the data is displayed on an OLED screen using I2C communication (SCL and SDA connected to A5 and A4 respectively). The embedded code reads the pulse signal, calculates the beats per minute (BPM), and dynamically displays the BPM value on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Heartbeat Monitor with I2C LCD Display
Image of Heartbeat Sensor System: A project utilizing Heart Pulse Sensor in a practical application
This circuit is a heartbeat monitoring system using an Arduino UNO, a heart pulse sensor, and a 16x2 I2C LCD. The Arduino reads the pulse sensor data, calculates the beats per minute (BPM), and displays the BPM on the LCD when a button is pressed. An LED also indicates heartbeat detection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based Heart Rate Monitor with I2C LCD Display
Image of PULSE: A project utilizing Heart Pulse Sensor in a practical application
This circuit is designed to monitor heart pulse rate using an Arduino UNO connected to a Heart Pulse Sensor. The pulse signal from the sensor is read by the Arduino on analog pin A0, processed, and the calculated beats per minute (BPM) are displayed on an I2C LCD 16x2 Screen. The entire circuit is powered by a 9V battery, with the Arduino regulating the voltage for the sensor and the LCD screen.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based Heart Rate Monitor with OLED Display
Image of pulse sensor: A project utilizing Heart Pulse Sensor in a practical application
This circuit is designed to monitor heart rate using a pulse sensor and display the readings on an OLED screen. The Arduino UNO reads the pulse signal from the sensor, processes the data to calculate beats per minute (BPM), and then displays the heart rate along with health advisories on the OLED. The system is intended for non-invasive monitoring of heart rate, with visual feedback provided in real-time.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Heart Pulse Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Dead Man's switch: A project utilizing Heart Pulse Sensor in a practical application
Arduino UNO Based Heart Rate Monitor with OLED Display
This circuit is designed to measure heart pulse rate using an Arduino UNO connected to a Heart Pulse Sensor. The sensor's signal is read by the Arduino's analog input A0, and the data is displayed on an OLED screen using I2C communication (SCL and SDA connected to A5 and A4 respectively). The embedded code reads the pulse signal, calculates the beats per minute (BPM), and dynamically displays the BPM value on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Heartbeat Sensor System: A project utilizing Heart Pulse Sensor in a practical application
Arduino Heartbeat Monitor with I2C LCD Display
This circuit is a heartbeat monitoring system using an Arduino UNO, a heart pulse sensor, and a 16x2 I2C LCD. The Arduino reads the pulse sensor data, calculates the beats per minute (BPM), and displays the BPM on the LCD when a button is pressed. An LED also indicates heartbeat detection.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of PULSE: A project utilizing Heart Pulse Sensor in a practical application
Arduino UNO Based Heart Rate Monitor with I2C LCD Display
This circuit is designed to monitor heart pulse rate using an Arduino UNO connected to a Heart Pulse Sensor. The pulse signal from the sensor is read by the Arduino on analog pin A0, processed, and the calculated beats per minute (BPM) are displayed on an I2C LCD 16x2 Screen. The entire circuit is powered by a 9V battery, with the Arduino regulating the voltage for the sensor and the LCD screen.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pulse sensor: A project utilizing Heart Pulse Sensor in a practical application
Arduino UNO Based Heart Rate Monitor with OLED Display
This circuit is designed to monitor heart rate using a pulse sensor and display the readings on an OLED screen. The Arduino UNO reads the pulse signal from the sensor, processes the data to calculate beats per minute (BPM), and then displays the heart rate along with health advisories on the OLED. The system is intended for non-invasive monitoring of heart rate, with visual feedback provided in real-time.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Fitness trackers and wearable health devices
  • Heart rate monitoring in medical applications
  • Biofeedback systems for stress management
  • DIY electronics and Arduino-based projects

Technical Specifications

The Heart Pulse Sensor is designed for low-power operation and high sensitivity. Below are its key technical details:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 4mA (typical)
Output Signal Analog voltage
Sensor Type Photoplethysmography (PPG)
Dimensions ~1 inch diameter
Interface 3-pin (VCC, GND, Signal)

Pin Configuration and Descriptions

The Heart Pulse Sensor has a simple 3-pin interface:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground connection
3 Signal Analog output signal proportional to heartbeat data

Usage Instructions

How to Use the Heart Pulse Sensor in a Circuit

  1. Connect the Sensor:

    • Connect the VCC pin to a 3.3V or 5V power supply.
    • Connect the GND pin to the ground of your circuit.
    • Connect the Signal pin to an analog input pin on your microcontroller (e.g., Arduino).
  2. Place the Sensor:

    • Attach the sensor to a fingertip or earlobe using the included Velcro strap or adhesive.
    • Ensure the sensor is in contact with the skin for accurate readings.
  3. Read the Output:

    • The sensor outputs an analog voltage signal that corresponds to the heartbeat. This signal can be read using an analog-to-digital converter (ADC) on your microcontroller.

Important Considerations and Best Practices

  • Ambient Light: Avoid exposing the sensor to direct sunlight or strong ambient light, as this can interfere with readings.
  • Placement: Ensure the sensor is securely placed on the skin to minimize motion artifacts.
  • Power Supply: Use a stable power supply to avoid noise in the output signal.
  • Signal Filtering: Use a low-pass filter in your circuit or software to remove noise and improve signal quality.

Example Code for Arduino UNO

Below is an example of how to use the Heart Pulse Sensor with an Arduino UNO:

// Heart Pulse Sensor Example Code for Arduino UNO
// Reads analog signal from the sensor and displays heartbeat data on Serial Monitor

const int pulsePin = A0; // Connect the Signal pin of the sensor to A0
int sensorValue = 0;     // Variable to store the analog value

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(pulsePin, INPUT); // Set the pulsePin as an input
}

void loop() {
  sensorValue = analogRead(pulsePin); // Read the analog value from the sensor
  Serial.print("Pulse Sensor Value: ");
  Serial.println(sensorValue); // Print the value to the Serial Monitor
  delay(10); // Small delay to stabilize readings
}

Notes:

  • Use the Serial Monitor in the Arduino IDE to observe the sensor's output.
  • For more advanced applications, you can implement algorithms to calculate beats per minute (BPM) from the raw sensor data.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Signal:

    • Cause: Loose connections or incorrect wiring.
    • Solution: Double-check all connections and ensure the sensor is powered correctly.
  2. Inconsistent Readings:

    • Cause: Motion artifacts or poor sensor placement.
    • Solution: Secure the sensor firmly on the skin and minimize movement during measurement.
  3. High Noise in Output:

    • Cause: Electrical noise or ambient light interference.
    • Solution: Use a low-pass filter and shield the sensor from ambient light.
  4. Sensor Overheating:

    • Cause: Prolonged use or incorrect voltage supply.
    • Solution: Ensure the supply voltage is within the specified range (3.3V to 5V).

FAQs

Q: Can the Heart Pulse Sensor be used with a Raspberry Pi?
A: Yes, the sensor can be used with a Raspberry Pi. However, since the Raspberry Pi lacks an onboard ADC, you will need an external ADC module (e.g., MCP3008) to read the analog signal.

Q: How do I calculate BPM from the sensor's output?
A: You can calculate BPM by detecting peaks in the analog signal and measuring the time interval between consecutive peaks. Divide 60 by the time interval (in seconds) to get BPM.

Q: Is the sensor safe for prolonged use?
A: Yes, the sensor is safe for prolonged use as it operates at low power and does not emit harmful radiation.

Q: Can I use the sensor with a 9V battery?
A: No, the sensor is designed to operate within a voltage range of 3.3V to 5V. Using a 9V battery without a voltage regulator may damage the sensor.

By following this documentation, you can effectively integrate the Heart Pulse Sensor into your projects and troubleshoot common issues with ease.
