How to Use Pushbutton_2P: Examples, Pinouts, and Specs

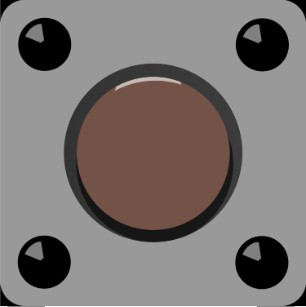

Image of Pushbutton_2P
Cirkit Designer LogoDesign with Pushbutton_2P in Cirkit Designer

Introduction

The Pushbutton_2P is a versatile pushbutton switch manufactured by Custom, with the part ID PushButton_2p. This component features two poles, enabling it to control two independent circuits or functions simultaneously with a single press. It is commonly used in applications requiring momentary control, such as user interfaces, reset buttons, and circuit switching.

Explore Projects Built with Pushbutton_2P

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Pushbutton-Controlled Dual-Color LED Circuit with TA6568
Image of polarity detector: A project utilizing Pushbutton_2P in a practical application
This is a pushbutton-controlled LED circuit with a TA6568 chip that likely drives two LEDs (red and green). Each LED is connected to a pushbutton through the TA6568, allowing the user to toggle the state of the LEDs. The circuit is powered by a 3V battery and includes a JST connector for external interfacing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Pushbutton-Controlled Dual LED Circuit with NPN Transistors
Image of transistor pair sr latch: A project utilizing Pushbutton_2P in a practical application
This is a dual-channel pushbutton-controlled LED circuit. Each channel uses a pushbutton to activate an NPN transistor switch, which in turn lights up an LED. The circuit operates on a 5V DC supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Pushbutton Input with 10k Ohm Resistor
Image of floating_03: A project utilizing Pushbutton_2P in a practical application
This circuit features an Arduino UNO microcontroller connected to a pushbutton and a 10k Ohm resistor. The pushbutton is powered by the 5V pin of the Arduino, and its state is read through digital pin D2, with the resistor providing a pull-down to ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
24V Pushbutton Control Interface with 40-Pin Connector
Image of 4 på rad: A project utilizing Pushbutton_2P in a practical application
This circuit consists of a 24V power supply unit (PSU) connected to four pushbuttons. Each pushbutton is wired such that pressing it will send a 24V signal to a corresponding general-purpose input (GP In) on a 40-pin connector. The common return path for the pushbuttons is connected to the 0V of the PSU, which is also connected to the common (Com) for input pins on the 40-pin connector, completing the circuit for each button press.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Pushbutton_2P

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of polarity detector: A project utilizing Pushbutton_2P in a practical application
Pushbutton-Controlled Dual-Color LED Circuit with TA6568
This is a pushbutton-controlled LED circuit with a TA6568 chip that likely drives two LEDs (red and green). Each LED is connected to a pushbutton through the TA6568, allowing the user to toggle the state of the LEDs. The circuit is powered by a 3V battery and includes a JST connector for external interfacing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of transistor pair sr latch: A project utilizing Pushbutton_2P in a practical application
Pushbutton-Controlled Dual LED Circuit with NPN Transistors
This is a dual-channel pushbutton-controlled LED circuit. Each channel uses a pushbutton to activate an NPN transistor switch, which in turn lights up an LED. The circuit operates on a 5V DC supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of floating_03: A project utilizing Pushbutton_2P in a practical application
Arduino UNO Pushbutton Input with 10k Ohm Resistor
This circuit features an Arduino UNO microcontroller connected to a pushbutton and a 10k Ohm resistor. The pushbutton is powered by the 5V pin of the Arduino, and its state is read through digital pin D2, with the resistor providing a pull-down to ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 4 på rad: A project utilizing Pushbutton_2P in a practical application
24V Pushbutton Control Interface with 40-Pin Connector
This circuit consists of a 24V power supply unit (PSU) connected to four pushbuttons. Each pushbutton is wired such that pressing it will send a 24V signal to a corresponding general-purpose input (GP In) on a 40-pin connector. The common return path for the pushbuttons is connected to the 0V of the PSU, which is also connected to the common (Com) for input pins on the 40-pin connector, completing the circuit for each button press.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • User interface controls in electronic devices
  • Reset or power buttons in embedded systems
  • Switching between two independent circuits
  • Robotics and automation systems
  • Prototyping and DIY electronics projects

Technical Specifications

The following table outlines the key technical details of the Pushbutton_2P:

Parameter Value
Manufacturer Custom
Part ID PushButton_2p
Switch Type Momentary Pushbutton
Number of Poles 2 (Double Pole)
Contact Configuration Normally Open (NO)
Maximum Voltage 50V DC
Maximum Current 1A
Contact Resistance ≤ 50 mΩ
Insulation Resistance ≥ 100 MΩ
Operating Temperature -20°C to +70°C
Mechanical Life 100,000 cycles

Pin Configuration and Descriptions

The Pushbutton_2P has four pins, as described in the table below:

Pin Number Label Description
1 Pole 1 First pole input terminal
2 Pole 1 First pole output terminal
3 Pole 2 Second pole input terminal
4 Pole 2 Second pole output terminal

Note: When the button is pressed, the input and output terminals of each pole are connected, completing the circuit.

Usage Instructions

How to Use the Pushbutton_2P in a Circuit

  1. Identify the Pins: Refer to the pin configuration table to identify the input and output terminals for each pole.
  2. Connect the Circuits:
    • Connect the input terminal of Pole 1 (Pin 1) to the first circuit's power source or signal.
    • Connect the output terminal of Pole 1 (Pin 2) to the load or destination of the first circuit.
    • Repeat the same for Pole 2 (Pins 3 and 4) for the second circuit.
  3. Test the Button: When the button is pressed, the input and output terminals of each pole will be connected, allowing current to flow through both circuits.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Ensure the voltage and current in your circuit do not exceed the maximum ratings of 50V DC and 1A.
  • Debouncing: Pushbuttons can cause mechanical bouncing, leading to multiple signals being sent. Use a debouncing circuit or software to handle this issue.
  • Mounting: Secure the pushbutton properly to avoid accidental disconnections or damage.
  • Polarity: The Pushbutton_2P is not polarized, so there is no specific orientation for connecting the pins.

Example: Using Pushbutton_2P with Arduino UNO

The following example demonstrates how to use the Pushbutton_2P to control an LED with an Arduino UNO. One pole of the button is used to toggle the LED.

Circuit Diagram:

  • Connect Pin 1 of the Pushbutton_2P to Arduino digital pin 2.
  • Connect Pin 2 to GND through a 10kΩ pull-down resistor.
  • Connect an LED to Arduino digital pin 13 with a 220Ω resistor in series.

Code:

// Define pin numbers
const int buttonPin = 2;  // Pushbutton connected to digital pin 2
const int ledPin = 13;    // LED connected to digital pin 13

// Variable to store button state
int buttonState = 0;

void setup() {
  pinMode(buttonPin, INPUT);  // Set button pin as input
  pinMode(ledPin, OUTPUT);    // Set LED pin as output
}

void loop() {
  // Read the state of the pushbutton
  buttonState = digitalRead(buttonPin);

  // If button is pressed, turn on the LED
  if (buttonState == HIGH) {
    digitalWrite(ledPin, HIGH);  // Turn LED on
  } else {
    digitalWrite(ledPin, LOW);   // Turn LED off
  }
}

Note: This example uses only one pole of the Pushbutton_2P. The second pole can be used for another independent circuit.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Button Not Responding:

    • Cause: Loose connections or incorrect wiring.
    • Solution: Double-check the wiring and ensure all connections are secure.
  2. LED Flickering or Unstable Output:

    • Cause: Mechanical bouncing of the pushbutton.
    • Solution: Implement a debouncing circuit or software debounce logic.
  3. Overheating or Damage:

    • Cause: Exceeding the voltage or current ratings.
    • Solution: Ensure the circuit operates within the specified ratings of 50V DC and 1A.
  4. Second Pole Not Working:

    • Cause: Misconnection or damaged internal contacts.
    • Solution: Verify the connections for the second pole and test with a multimeter.

FAQs

Q1: Can I use the Pushbutton_2P for AC circuits?
A1: The Pushbutton_2P is designed for DC circuits with a maximum voltage of 50V. For AC applications, ensure the voltage and current ratings are not exceeded.

Q2: How do I debounce the pushbutton in software?
A2: You can use a delay or a state-change detection algorithm in your code to filter out bouncing signals.

Q3: Can I use both poles for the same circuit?
A3: Yes, you can connect both poles in parallel to increase current handling capacity, but ensure the total current does not exceed 1A.

Q4: Is the Pushbutton_2P waterproof?
A4: No, the Pushbutton_2P is not waterproof. Use it in dry environments or consider additional protection for outdoor use.
