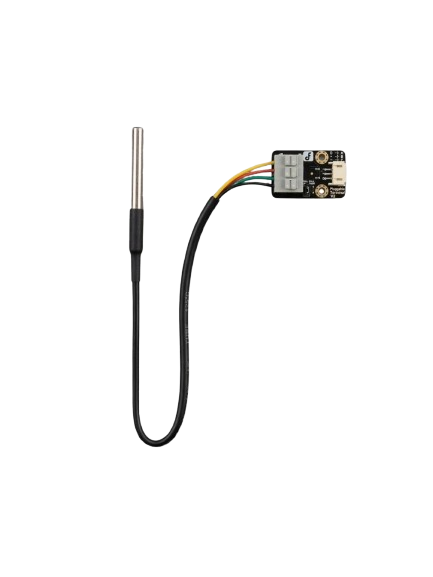

Image of DS18b20 df robot
Cirkit Designer LogoDesign with DS18b20 df robot in Cirkit Designer

Introduction

The DS18B20 is a digital temperature sensor manufactured by DFRobot, designed for precise temperature measurement in a wide range of applications. It communicates using the 1-Wire protocol, allowing multiple sensors to be connected to a single data line. The sensor provides temperature readings in degrees Celsius with a resolution of up to 12 bits, making it ideal for applications requiring accurate and reliable temperature monitoring.

Explore Projects Built with DS18b20 df robot

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560-Based Autonomous Robot with GPS, Bluetooth, and Environmental Sensors
Image of botfinal: A project utilizing DS18b20 df robot in a practical application
This circuit is a robotic system controlled by an Arduino Mega 2560, which uses multiple sensors including temperature sensors (MLX90614), gas sensors (MQ-136), a GPS module, and a Bluetooth module to navigate and detect environmental conditions. The system drives motors via an L298N motor driver and displays information on a 16x2 I2C LCD, with the ability to receive commands via Bluetooth.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Multi-Sensor Weather Station with TFT Display and IR Control
Image of aqua2: A project utilizing DS18b20 df robot in a practical application
This circuit uses an Arduino Mega 2560 to read temperature data from multiple DS18B20 sensors, display the data on an ILI9341 TFT display, and maintain time using an Adafruit DS1307 RTC module. It also receives IR signals using a VS1838B IR receiver and includes an Adafruit MS8607 PHT sensor for additional environmental monitoring.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Powered GSM Water Quality Monitoring and Pump Control System
Image of Hydroponics System Schematic Wiring Diagram: A project utilizing DS18b20 df robot in a practical application
This is a sensor and control system with remote communication capabilities. It monitors temperature, pH levels, and water levels, and controls a water pump based on the float switch status. Data can be accessed and the system can be controlled remotely via Bluetooth and GSM modules connected to two Arduino UNO microcontrollers.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Multi-Sensor Environmental Monitoring System
Image of diagrama tesis: A project utilizing DS18b20 df robot in a practical application
This circuit involves an Arduino UNO microcontroller interfacing with a DS18B20 temperature sensor. The sensor is powered by the Arduino's 5V and GND pins, and its data pin is connected to a digital I/O pin on the Arduino, with a pull-up resistor in place. The setup is designed to read temperature data from the sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DS18b20 df robot

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of botfinal: A project utilizing DS18b20 df robot in a practical application
Arduino Mega 2560-Based Autonomous Robot with GPS, Bluetooth, and Environmental Sensors
This circuit is a robotic system controlled by an Arduino Mega 2560, which uses multiple sensors including temperature sensors (MLX90614), gas sensors (MQ-136), a GPS module, and a Bluetooth module to navigate and detect environmental conditions. The system drives motors via an L298N motor driver and displays information on a 16x2 I2C LCD, with the ability to receive commands via Bluetooth.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of aqua2: A project utilizing DS18b20 df robot in a practical application
Arduino Mega 2560-Based Multi-Sensor Weather Station with TFT Display and IR Control
This circuit uses an Arduino Mega 2560 to read temperature data from multiple DS18B20 sensors, display the data on an ILI9341 TFT display, and maintain time using an Adafruit DS1307 RTC module. It also receives IR signals using a VS1838B IR receiver and includes an Adafruit MS8607 PHT sensor for additional environmental monitoring.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Hydroponics System Schematic Wiring Diagram: A project utilizing DS18b20 df robot in a practical application
Arduino-Powered GSM Water Quality Monitoring and Pump Control System
This is a sensor and control system with remote communication capabilities. It monitors temperature, pH levels, and water levels, and controls a water pump based on the float switch status. Data can be accessed and the system can be controlled remotely via Bluetooth and GSM modules connected to two Arduino UNO microcontrollers.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of diagrama tesis: A project utilizing DS18b20 df robot in a practical application
Arduino UNO-Based Multi-Sensor Environmental Monitoring System
This circuit involves an Arduino UNO microcontroller interfacing with a DS18B20 temperature sensor. The sensor is powered by the Arduino's 5V and GND pins, and its data pin is connected to a digital I/O pin on the Arduino, with a pull-up resistor in place. The setup is designed to read temperature data from the sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Environmental monitoring systems
  • HVAC (Heating, Ventilation, and Air Conditioning) systems
  • Industrial temperature control
  • Weather stations
  • Home automation projects
  • Arduino and microcontroller-based projects

Technical Specifications

Key Technical Details

Parameter Value
Operating Voltage 3.0V to 5.5V
Temperature Range -55°C to +125°C
Accuracy ±0.5°C (from -10°C to +85°C)
Resolution 9-bit to 12-bit (programmable)
Communication Protocol 1-Wire
Maximum Current Draw 1.5mA during conversion
Waterproof Version Yes (encased in stainless steel)

Pin Configuration and Descriptions

Pin Number Pin Name Description
1 GND Ground pin, connect to the ground of the circuit
2 VDD Power supply pin (3.0V to 5.5V)
3 DQ Data pin for 1-Wire communication

Note: A 4.7kΩ pull-up resistor is required between the DQ pin and the VDD pin for proper operation.

Usage Instructions

How to Use the DS18B20 in a Circuit

  1. Wiring the Sensor:

    • Connect the GND pin of the DS18B20 to the ground of your circuit.
    • Connect the VDD pin to a 3.3V or 5V power supply.
    • Connect the DQ pin to a digital input/output pin of your microcontroller (e.g., Arduino).
    • Place a 4.7kΩ pull-up resistor between the DQ pin and the VDD pin.
  2. Programming with Arduino:

    • Install the required libraries: OneWire and DallasTemperature.
    • Use the following example code to read temperature data from the sensor.
#include <OneWire.h>
#include <DallasTemperature.h>

// Pin connected to the DS18B20 data pin
#define ONE_WIRE_BUS 2

// Setup a oneWire instance to communicate with any OneWire devices
OneWire oneWire(ONE_WIRE_BUS);

// Pass the oneWire reference to DallasTemperature library
DallasTemperature sensors(&oneWire);

void setup() {
  Serial.begin(9600); // Initialize serial communication
  sensors.begin();    // Start the DS18B20 sensor
}

void loop() {
  sensors.requestTemperatures(); // Request temperature readings
  float temperatureC = sensors.getTempCByIndex(0); // Get temperature in Celsius

  // Check if the reading is valid
  if (temperatureC != DEVICE_DISCONNECTED_C) {
    Serial.print("Temperature: ");
    Serial.print(temperatureC);
    Serial.println(" °C");
  } else {
    Serial.println("Error: Sensor not connected!");
  }

  delay(1000); // Wait 1 second before the next reading
}

Important Considerations and Best Practices

  • Ensure the pull-up resistor (4.7kΩ) is properly connected to the DQ pin.
  • Avoid exposing the sensor to temperatures beyond its specified range (-55°C to +125°C).
  • For waterproof versions, ensure the stainless steel casing is intact to prevent water ingress.
  • Use proper decoupling capacitors near the power supply pin for stable operation in noisy environments.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Temperature Reading:

    • Cause: Missing or incorrect pull-up resistor on the DQ pin.
    • Solution: Verify the 4.7kΩ pull-up resistor is connected between the DQ pin and VDD.
  2. Incorrect Temperature Values:

    • Cause: Poor wiring or loose connections.
    • Solution: Check all connections and ensure the sensor is properly powered.
  3. Sensor Not Detected:

    • Cause: Faulty sensor or incorrect wiring.
    • Solution: Test the sensor with a different microcontroller or replace the sensor.
  4. Fluctuating Readings:

    • Cause: Electrical noise or unstable power supply.
    • Solution: Add decoupling capacitors (e.g., 0.1µF) near the sensor's power pins.

FAQs

Q: Can I connect multiple DS18B20 sensors to the same data line?
A: Yes, the DS18B20 supports multiple sensors on a single 1-Wire bus. Each sensor has a unique 64-bit address for identification.

Q: What is the maximum cable length for the DS18B20?
A: The maximum cable length depends on the power supply and pull-up resistor value. Typically, lengths up to 30 meters are achievable with proper wiring.

Q: Can the DS18B20 measure negative temperatures?
A: Yes, the DS18B20 can measure temperatures as low as -55°C.

Q: Is the DS18B20 waterproof?
A: The standard DS18B20 is not waterproof, but DFRobot offers a waterproof version encased in stainless steel.

Q: What happens if the sensor is disconnected during operation?
A: The DallasTemperature library will return a value of DEVICE_DISCONNECTED_C to indicate the sensor is not connected.
