How to Use SCA3000: Examples, Pinouts, and Specs

The SCA3000 is a three-axis accelerometer designed for motion sensing applications. It provides high accuracy and low noise measurements, making it suitable for a wide range of applications. This component is commonly used in consumer electronics, automotive systems, and industrial applications where precise motion detection and orientation sensing are required. Its compact design and robust performance make it ideal for integration into devices such as smartphones, gaming controllers, vehicle stability systems, and industrial monitoring equipment.

The SCA3000 offers reliable performance with the following key technical details:

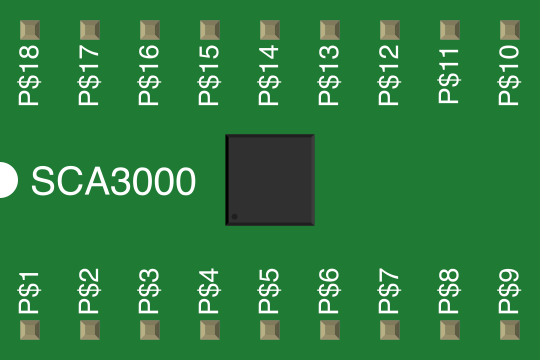

The SCA3000 is typically available in a 16-pin LGA package. Below is the pin configuration:

1. Power Supply: Connect the VDD pin to a stable 2.35 V to 3.6 V power source and the GND pin to ground.
2. SPI Communication: Use the SPI interface to communicate with the SCA3000. Connect the CS, SCK, MOSI, and MISO pins to the corresponding pins on your microcontroller.
3. Interrupts: If needed, connect the INT1 and INT2 pins to your microcontroller to handle motion-triggered interrupts.
4. Bypass Capacitor: Place a 0.1 µF ceramic capacitor close to the VDD pin to ensure stable operation.

• SPI Configuration: Ensure the SPI clock polarity and phase are configured correctly (CPOL = 0, CPHA = 0).
• Mounting Orientation: The SCA3000 is sensitive to orientation. Mount it securely to avoid mechanical vibrations.
• Noise Filtering: Use software filtering to reduce noise in the accelerometer readings.
• Temperature Effects: Be aware of temperature variations, as they may slightly affect the sensor's accuracy.

Below is an example of how to interface the SCA3000 with an Arduino UNO using SPI:

#include <SPI.h>

// Define SCA3000 pins
const int CS_PIN = 10; // Chip Select pin connected to Arduino pin 10

void setup() {
  // Initialize SPI communication
  SPI.begin();
  pinMode(CS_PIN, OUTPUT);
  digitalWrite(CS_PIN, HIGH); // Set CS pin high (inactive)

  Serial.begin(9600); // Initialize serial communication for debugging
}

void loop() {
  // Example: Read data from the SCA3000
  digitalWrite(CS_PIN, LOW); // Activate the SCA3000 by pulling CS low
  byte command = 0x32; // Example command to read X-axis data
  SPI.transfer(command); // Send the command
  byte dataHigh = SPI.transfer(0x00); // Read high byte of data
  byte dataLow = SPI.transfer(0x00);  // Read low byte of data
  digitalWrite(CS_PIN, HIGH); // Deactivate the SCA3000 by pulling CS high

  // Combine high and low bytes into a 16-bit value
  int16_t xAxisData = (dataHigh << 8) | dataLow;

  // Print the X-axis data to the serial monitor
  Serial.print("X-axis: ");
  Serial.println(xAxisData);

  delay(100); // Wait for 100 ms before the next reading
}

1. No Data Output:

   • Cause: Incorrect SPI configuration or wiring.
   • Solution: Verify the SPI settings (CPOL = 0, CPHA = 0) and ensure all connections are secure.

2. Inconsistent Readings:

   • Cause: Mechanical vibrations or electrical noise.
   • Solution: Mount the sensor securely and use software filtering to smooth the data.

3. High Noise Levels:

   • Cause: Insufficient power supply decoupling.
   • Solution: Add a 0.1 µF ceramic capacitor close to the VDD pin.

4. Interrupts Not Triggering:

   • Cause: Incorrect interrupt configuration.
   • Solution: Check the interrupt threshold settings and ensure the INT1/INT2 pins are connected properly.

Q1: Can the SCA3000 measure tilt angles?
Yes, the SCA3000 can measure tilt angles by analyzing the acceleration data along the X, Y, and Z axes.

Q2: What is the maximum SPI clock speed supported?
The SCA3000 supports SPI clock speeds up to 1 MHz.

Q3: Can I use the SCA3000 with a 5V microcontroller?
Yes, but you will need a level shifter to convert the 5V logic levels to 3.3V for the SCA3000.

Q4: How do I select the measurement range?
The measurement range (±1.5 g or ±6 g) can be configured via SPI commands. Refer to the SCA3000 datasheet for specific register settings.
