How to Use ESP32 CAM: Examples, Pinouts, and Specs

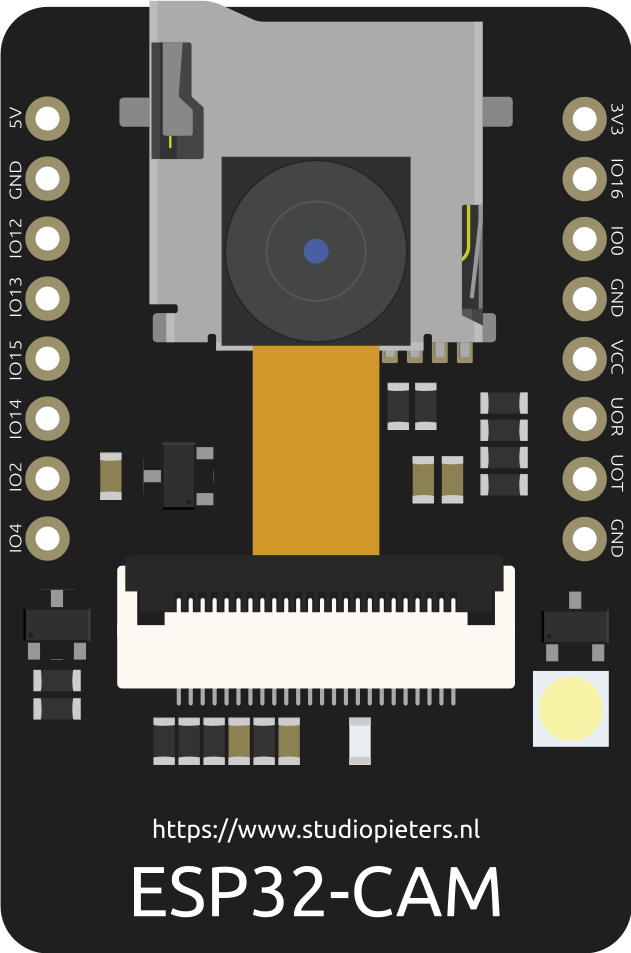

Image of ESP32 CAMDesign with ESP32 CAM in Cirkit Designer

Introduction

The ESP32 CAM is a low-cost development board that features a built-in camera and Wi-Fi capabilities. It is based on the ESP32 chip, which provides powerful processing and connectivity options. This versatile module is widely used in IoT applications, surveillance systems, and remote monitoring projects. Its compact size and ability to handle image processing make it an excellent choice for developers looking to integrate vision and wireless communication into their designs.

Explore Projects Built with ESP32 CAM

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications:

Technical Specifications

The ESP32 CAM combines the ESP32 microcontroller with a camera module and additional features to support wireless communication and image capture.

Key Technical Details:

Specification Value
Microcontroller ESP32 Dual-Core Processor
Camera Module OV2640 (2MP resolution)
Flash Memory 4 MB (PSRAM optional in some variants)
Wi-Fi Standard 802.11 b/g/n
Bluetooth Bluetooth 4.2 (BLE and Classic)
Operating Voltage 3.3V
Input Voltage Range 5V (via external power supply or USB)
GPIO Pins 9 (multipurpose, including PWM, ADC, etc.)
UART, SPI, I2C Support Yes
MicroSD Card Slot Supports up to 4GB
Dimensions 27mm x 40.5mm

Pin Configuration and Descriptions:

Pin Name Description
3.3V Power input (3.3V)
GND Ground
GPIO0 Used for boot mode selection (connect to GND for programming)
GPIO1 UART TX (used for serial communication)
GPIO3 UART RX (used for serial communication)
GPIO12 General-purpose I/O pin
GPIO13 General-purpose I/O pin
GPIO14 General-purpose I/O pin
GPIO15 General-purpose I/O pin
GPIO16 General-purpose I/O pin
GPIO33 General-purpose I/O pin
RESET Reset pin
MicroSD Interface for external MicroSD card

Usage Instructions

The ESP32 CAM is a versatile module that can be used in a variety of projects. Below are the steps to get started and important considerations for using the module effectively.

How to Use the ESP32 CAM in a Circuit:

  1. Power Supply: Provide a stable 5V power supply to the module via the 5V pin or an external USB-to-serial adapter.
  2. Programming Mode:
    • Connect GPIO0 to GND to enable programming mode.
    • Use a USB-to-serial adapter to connect the ESP32 CAM to your computer. Connect the adapter's TX to GPIO3 (RX) and RX to GPIO1 (TX).
  3. Upload Code:
    • Use the Arduino IDE or ESP-IDF to upload code to the ESP32 CAM.
    • Select the correct board (AI-Thinker ESP32-CAM) and COM port in the IDE.
  4. Camera Initialization:
    • Use the provided libraries (e.g., esp_camera.h) to initialize and configure the camera module.
  5. Wi-Fi Configuration:
    • Configure the Wi-Fi credentials in your code to enable wireless communication.

Example Code for ESP32 CAM with Arduino IDE:

#include "esp_camera.h"
#include <WiFi.h>

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

// Camera configuration for AI-Thinker ESP32-CAM
#define PWDN_GPIO_NUM    -1
#define RESET_GPIO_NUM   -1
#define XCLK_GPIO_NUM     0
#define SIOD_GPIO_NUM    26
#define SIOC_GPIO_NUM    27
#define Y9_GPIO_NUM      35
#define Y8_GPIO_NUM      34
#define Y7_GPIO_NUM      39
#define Y6_GPIO_NUM      36
#define Y5_GPIO_NUM      21
#define Y4_GPIO_NUM      19
#define Y3_GPIO_NUM      18
#define Y2_GPIO_NUM       5
#define VSYNC_GPIO_NUM   25
#define HREF_GPIO_NUM    23
#define PCLK_GPIO_NUM    22

void startCameraServer();

void setup() {
  Serial.begin(115200);
  Serial.println("Starting ESP32-CAM...");

  // Connect to Wi-Fi
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");

  // Camera configuration
  camera_config_t config;
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;
  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;
  config.pin_sscb_sda = SIOD_GPIO_NUM;
  config.pin_sscb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;
  config.xclk_freq_hz = 20000000;
  config.pixel_format = PIXFORMAT_JPEG;

  // Initialize the camera
  if (esp_camera_init(&config) != ESP_OK) {
    Serial.println("Camera initialization failed!");
    return;
  }

  // Start the camera server
  startCameraServer();
  Serial.println("Camera ready! Stream at: http://<ESP32-CAM-IP>");
}

void loop() {
  // Main loop does nothing; camera server handles requests
}

Important Considerations:

Troubleshooting and FAQs

Common Issues and Solutions:

  1. Camera Initialization Failed:

    • Ensure the camera module is properly connected to the ESP32 CAM board.
    • Verify the camera configuration in the code matches the hardware.

  2. Wi-Fi Connection Issues:

    • Double-check the SSID and password in your code.
    • Ensure the ESP32 CAM is within range of the Wi-Fi router.

  3. Serial Communication Errors:

    • Verify the TX and RX connections between the ESP32 CAM and the USB-to-serial adapter.
    • Ensure the correct COM port is selected in the Arduino IDE.

  4. Module Overheating:

    • Use a heatsink or improve ventilation around the module.
