How to Use 18650 12V 3S Li-ion battery: Examples, Pinouts, and Specs

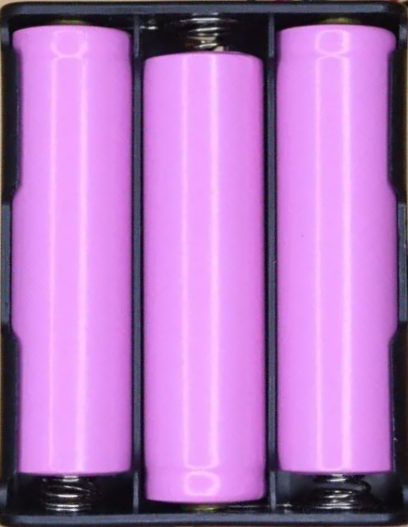

The 18650 12V 3S Li-ion battery is a rechargeable lithium-ion battery pack consisting of three 18650 cells connected in series. This configuration provides a nominal voltage of 12V, making it suitable for a wide range of applications. Known for its high energy density, long cycle life, and lightweight design, this battery pack is commonly used in portable electronics, electric vehicles, robotics, and backup power systems.

• Portable electronic devices (e.g., LED lights, power banks)
• Electric vehicles and e-bikes
• Robotics and DIY projects
• Uninterruptible Power Supplies (UPS)
• Solar energy storage systems

The following table outlines the key technical details of the 18650 12V 3S Li-ion battery:

The 18650 12V 3S Li-ion battery pack typically has three main terminals:

Note: Some battery packs include a Battery Management System (BMS) for safety and performance optimization. Ensure you verify the pinout for your specific battery pack.

1. Connect the Terminals:

   • Identify the positive (+) and negative (-) terminals of the battery pack.
   • Connect the positive terminal to the positive input of your circuit and the negative terminal to the ground or negative input.

2. Charging the Battery:

   • Use a dedicated Li-ion battery charger designed for 12.6V 3S configurations.
   • Ensure the charger provides a constant current (CC) and constant voltage (CV) charging profile.
   • Do not exceed the recommended charging current (typically 0.5C to 1C).

3. Load Connection:

   • Ensure the load does not exceed the battery's maximum continuous discharge current.
   • If the battery pack includes a BMS, it will automatically protect against overcurrent and short circuits.

4. Monitor Voltage Levels:

   • Avoid discharging the battery below 9.0V (3.0V per cell) to prevent damage.
   • Use a voltage monitoring circuit or a multimeter to check the battery's voltage periodically.

• Safety First: Always handle Li-ion batteries with care. Avoid puncturing, short-circuiting, or exposing the battery to high temperatures.
• Use a BMS: A Battery Management System is highly recommended to protect against overcharging, over-discharging, and thermal runaway.
• Storage: Store the battery in a cool, dry place at around 40–60% charge for long-term storage.
• Avoid Overloading: Ensure the connected load does not exceed the battery's rated discharge current.

The 18650 12V 3S Li-ion battery can power an Arduino UNO via its VIN pin. Below is an example circuit and code to read the battery voltage using an analog input pin.

1. Connect the battery's positive terminal to the VIN pin of the Arduino UNO.
2. Connect the battery's negative terminal to the GND pin of the Arduino UNO.
3. Use a voltage divider circuit (e.g., 10kΩ and 10kΩ resistors) to step down the battery voltage for safe measurement on an analog pin.

// Define analog pin for voltage measurement
const int voltagePin = A0;

// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive
const float R2 = 10000.0; // Resistor connected to ground

// ADC reference voltage (5V for Arduino UNO)
const float Vref = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawADC = analogRead(voltagePin); // Read analog value
  float voltage = (rawADC * Vref / 1023.0) * ((R1 + R2) / R2);

  // Print the measured voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Ensure the voltage divider reduces the battery voltage to below 5V to avoid damaging the Arduino's analog input pin.

1. Battery Not Charging:

   • Cause: Faulty charger or damaged BMS.
   • Solution: Verify the charger output voltage and current. Check the BMS for any visible damage.

2. Battery Drains Quickly:

   • Cause: High self-discharge rate or excessive load.
   • Solution: Test the battery's capacity using a battery tester. Reduce the load or replace the battery if necessary.

3. Overheating During Use:

   • Cause: Overcurrent or poor ventilation.
   • Solution: Ensure the load is within the battery's discharge rating. Improve airflow around the battery.

4. Voltage Drops Below 9.0V:

   • Cause: Over-discharge or faulty cell.
   • Solution: Stop using the battery immediately. Recharge it to a safe voltage level.

• Q: Can I use this battery without a BMS?

  • A: While possible, it is not recommended. A BMS ensures safety and prolongs the battery's lifespan.

• Q: How do I know when the battery is fully charged?

  • A: The battery is fully charged when the voltage reaches 12.6V and the charging current drops significantly.

• Q: Can I connect multiple 3S packs in parallel?

  • A: Yes, but ensure all packs have the same voltage and capacity before connecting them in parallel.

• Q: What happens if I overcharge the battery?

  • A: Overcharging can cause overheating, swelling, or even thermal runaway. Always use a charger with overcharge protection.

By following this documentation, you can safely and effectively use the 18650 12V 3S Li-ion battery in your projects.
