How to Use led: Examples, Pinouts, and Specs

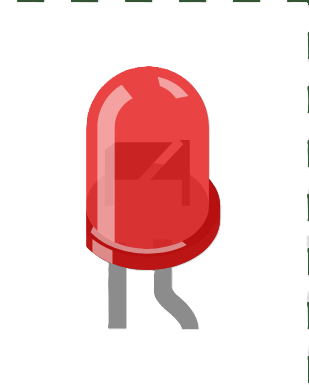

Image of led
Cirkit Designer LogoDesign with led in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current passes through it. LEDs are energy-efficient, have a long lifespan, and are widely used in various applications. They are available in different colors, sizes, and brightness levels, making them versatile for numerous use cases.

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing led in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing led in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
LDR-Controlled LED Lighting System
Image of automatic street light: A project utilizing led in a practical application
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Light-Activated Relay with LED Indicator
Image of Street Light: A project utilizing led in a practical application
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with led

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of yk: A project utilizing led in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Panel : A project utilizing led in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic street light: A project utilizing led in a practical application
LDR-Controlled LED Lighting System
This circuit appears to be a simple light-detection system that uses an LDR (Light Dependent Resistor) to control the state of multiple green LEDs. The LDR's analog output (AO) is not connected, suggesting that the circuit uses the digital output (DO) to directly drive one LED, while the other LEDs are wired in parallel to the LDR's power supply (Vcc). The Pd (presumably a power distribution component) provides the necessary voltage levels to the LDR and LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Street Light: A project utilizing led in a practical application
Light-Activated Relay with LED Indicator
This circuit uses a photocell (LDR) to control a 5V relay, which in turn controls the power to a red LED. The relay is powered by a USB plug, and a resistor is used to limit the current to the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Indicators: Power status, notifications, and signal indicators in electronic devices.
  • Displays: Seven-segment displays, dot matrices, and full-color screens.
  • Lighting: Residential, commercial, and automotive lighting solutions.
  • Decorative Purposes: Holiday lights, signage, and artistic installations.
  • Optoelectronics: Infrared LEDs for remote controls and sensors.

Technical Specifications

Below are the general technical specifications for a standard 5mm LED. Note that specifications may vary depending on the type and manufacturer.

Key Technical Details

  • Forward Voltage (Vf): 1.8V to 3.3V (varies by color; e.g., red ~2V, blue ~3V)
  • Forward Current (If): 10mA to 20mA (typical operating range)
  • Maximum Reverse Voltage: 5V (do not exceed to avoid damage)
  • Power Dissipation: 60mW (typical)
  • Viewing Angle: 20° to 60° (varies by design)
  • Luminous Intensity: 100mcd to 10,000mcd (depends on type and color)

Pin Configuration and Descriptions

An LED typically has two pins: the anode (positive) and the cathode (negative). The cathode is usually shorter and may have a flat edge on the LED casing.

Pin Name Description Identification Method
Anode Positive terminal; connects to Longer pin or no flat edge
the positive side of the power
supply.
Cathode Negative terminal; connects to Shorter pin or flat edge on
ground (GND). the LED casing.

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED
    • (I_f): Desired forward current (e.g., 20mA)

    Example: For a 5V supply and a red LED ((V_f = 2V), (I_f = 20mA)): [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

  2. Connect the LED:

    • Connect the anode to the positive side of the power supply through the resistor.
    • Connect the cathode to ground (GND).
  3. Test the Circuit: Power the circuit and observe the LED emitting light. If it does not light up, check the polarity and connections.

Important Considerations and Best Practices

  • Polarity: Ensure the anode and cathode are connected correctly. Reversing the polarity may damage the LED.
  • Current Limiting: Always use a resistor to limit the current through the LED.
  • Heat Management: For high-power LEDs, use proper heat sinks to dissipate heat.
  • Voltage Ratings: Do not exceed the maximum forward voltage or reverse voltage ratings.

Example: Connecting an LED to an Arduino UNO

Below is an example of how to connect and control an LED using an Arduino UNO.

Circuit Setup

  • Connect the anode of the LED to Arduino pin 13 through a 220Ω resistor.
  • Connect the cathode of the LED to the GND pin of the Arduino.

Arduino Code

// LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure a 220Ω resistor is used to limit current through the LED.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity or loose connections.
    • Solution: Verify the anode and cathode connections. Ensure all connections are secure.
  2. LED is Dim:

    • Cause: Resistor value too high.
    • Solution: Recalculate the resistor value for the desired brightness.
  3. LED Burns Out:

    • Cause: No current-limiting resistor or excessive voltage.
    • Solution: Always use a resistor and ensure the supply voltage matches the LED's specifications.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power source and secure all connections.

FAQs

  • Q: Can I connect an LED directly to a battery?
    A: No, always use a current-limiting resistor to prevent damage to the LED.

  • Q: How do I choose the right resistor for my LED?
    A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}) to calculate the resistor value.

  • Q: Can I use an LED with an AC power source?
    A: LEDs are designed for DC operation. Use a rectifier circuit to convert AC to DC before connecting the LED.

  • Q: Why does my LED only light up in one direction?
    A: LEDs are diodes and only conduct current in one direction. Reverse the polarity if it does not light up.

This concludes the documentation for the LED component.
