How to Use ESP32: Examples, Pinouts, and Specs

The ESP32 is a powerful, low-cost microcontroller with integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications and embedded systems. Developed by Espressif Systems, the ESP32 offers high performance, low power consumption, and a wide range of features that cater to both hobbyists and professional developers.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Industrial automation
• Robotics and drones
• Audio streaming and Bluetooth-enabled devices

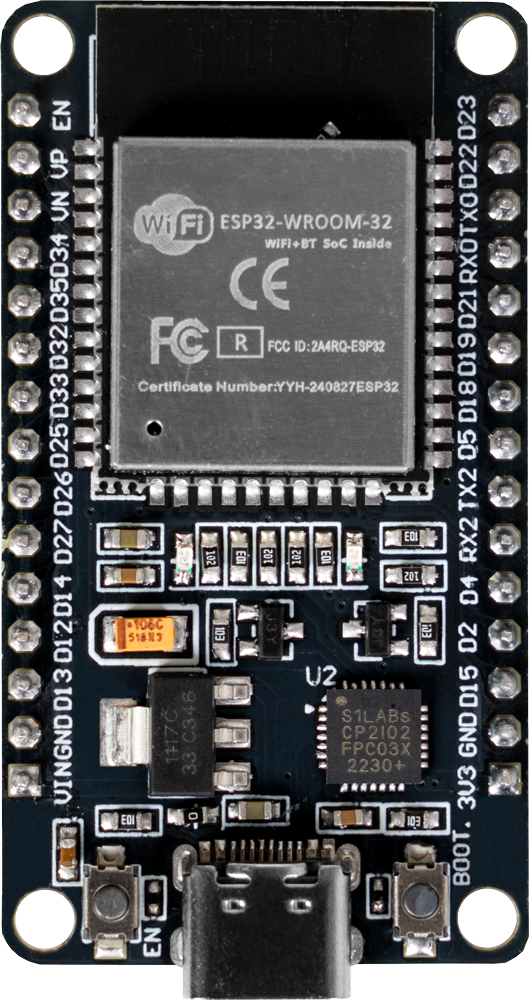

The ESP32 is available in various modules and development boards. Below are the key technical details for the ESP32 microcontroller:

• Processor: Dual-core Xtensa® 32-bit LX6 CPU, up to 240 MHz
• Memory: 520 KB SRAM, 448 KB ROM, and external flash support
• Wireless Connectivity:
  • Wi-Fi: 802.11 b/g/n (2.4 GHz)
  • Bluetooth: v4.2 BR/EDR and BLE
• GPIO Pins: Up to 34 programmable GPIOs
• ADC: 12-bit, up to 18 channels
• DAC: 8-bit, 2 channels
• Communication Interfaces: UART, SPI, I2C, I2S, CAN, PWM
• Operating Voltage: 3.3V
• Power Consumption: Ultra-low power modes available
• Operating Temperature: -40°C to +125°C

The ESP32 has a flexible pinout, but the exact configuration depends on the specific module or development board. Below is a general pin description for the ESP32-WROOM-32 module:

Note: Refer to the datasheet of your specific ESP32 module for exact pin mappings and features.

1. Power Supply: Provide a stable 3.3V power supply to the ESP32. Avoid exceeding this voltage to prevent damage.
2. Boot Mode Selection: Connect GPIO0 to GND during startup to enter flash mode for programming.
3. Programming: Use a USB-to-serial adapter or a development board with built-in USB support to upload code.
4. Peripherals: Connect sensors, actuators, or other peripherals to the GPIO pins. Use appropriate pull-up or pull-down resistors as needed.
5. Wi-Fi and Bluetooth: Configure the wireless settings in your code to enable connectivity.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
• Power Consumption: Use deep sleep or light sleep modes to reduce power consumption in battery-powered applications.
• Antenna Placement: Avoid placing metal objects near the onboard antenna to ensure optimal wireless performance.
• Heat Management: If operating at high loads, ensure proper ventilation to prevent overheating.

The ESP32 can be programmed using the Arduino IDE. Below is an example of connecting the ESP32 to a Wi-Fi network:

#include <WiFi.h> // Include the WiFi library for ESP32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a second to stabilize the serial monitor

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Note: Replace Your_SSID and Your_Password with your Wi-Fi credentials.

1. ESP32 Not Connecting to Wi-Fi:

   • Ensure the SSID and password are correct.
   • Check if the Wi-Fi network is within range.
   • Verify that the router supports 2.4 GHz, as the ESP32 does not support 5 GHz.

2. Upload Errors in Arduino IDE:

   • Ensure the correct board and COM port are selected in the Arduino IDE.
   • Press and hold the "BOOT" button on the ESP32 board while uploading the code.

3. Random Resets or Instability:

   • Check the power supply for stability. Use a capacitor to filter noise if necessary.
   • Avoid using GPIO pins connected to internal flash or reserved functions.

4. Bluetooth Not Working:

   • Ensure Bluetooth is enabled in the code.
   • Check for interference from other wireless devices.

• Q: Can the ESP32 operate on 5V?
  A: No, the ESP32 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.

• Q: How do I update the ESP32 firmware?
  A: Use the Espressif Flash Download Tool or the Arduino IDE to upload the latest firmware.

• Q: Can I use the ESP32 with batteries?
  A: Yes, the ESP32 supports low-power modes, making it suitable for battery-powered applications.

• Q: What is the maximum range of the ESP32's Wi-Fi?
  A: The range depends on the environment but typically extends up to 100 meters in open spaces.

This documentation provides a comprehensive guide to understanding and using the ESP32 microcontroller effectively. For further details, refer to the official Espressif documentation.
